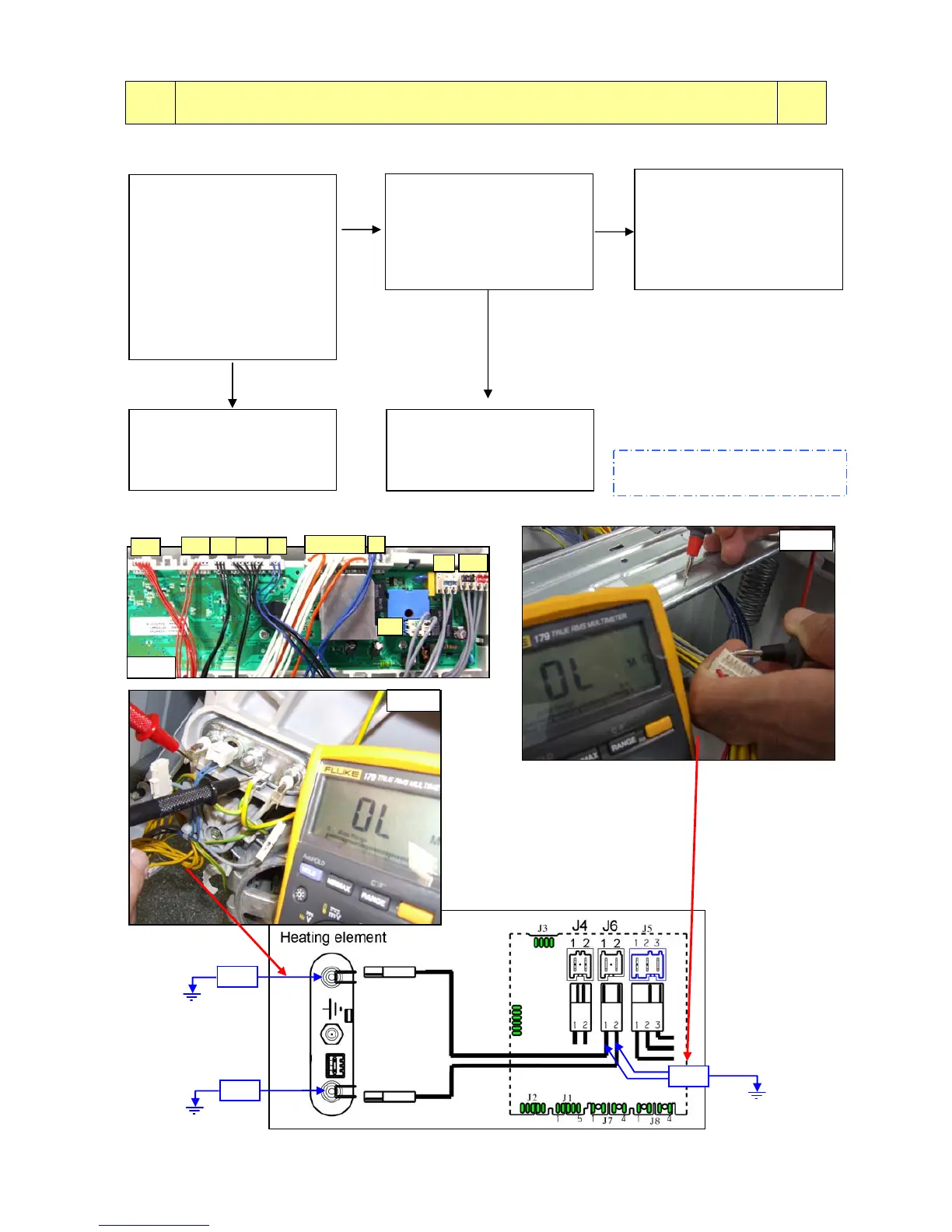

Electrolux EWM2100 - E68: Washing Heating Element Interrupted (Version WD)

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 59/91 599 70 56-70
Start the diagnostic cycle
and fill with water up to the
level of the door to ensure
that the heating element is
completely dipped into.
Measure between wiring
connector J2-1/J2-2 and the
structure of the appliance
-see fig.6-
Is the circuit open?
NO
NO
YES
YES
E68 E68: Washing heating element interrupted (version WD) E68
Tests to be performed:
Detach the connector and
measure across the heating
element and the ground
contact.
- see fig. 15 -
Is the circuit open?
Check/replace the wiring
and restart the diagnostic
cycle to check for further
alarms.
Replace the circuit board
and restart the diagnostic
cycle to check for further
alarms.
fig. 15
fig. 6
If there are traces of burning on
the circuit board, refer to page 90
∞
Ω
∞
Ω
WD
board
∞
Ω
J1
J2
U3
J5
J7
J8
J9
J10
J11
J16
Fig.4
Start phase 8 of the
diagnostic cycle, drain water
from tub. Replace the
heating element and restart
the diagnostic cycle to
check for further alarms.
