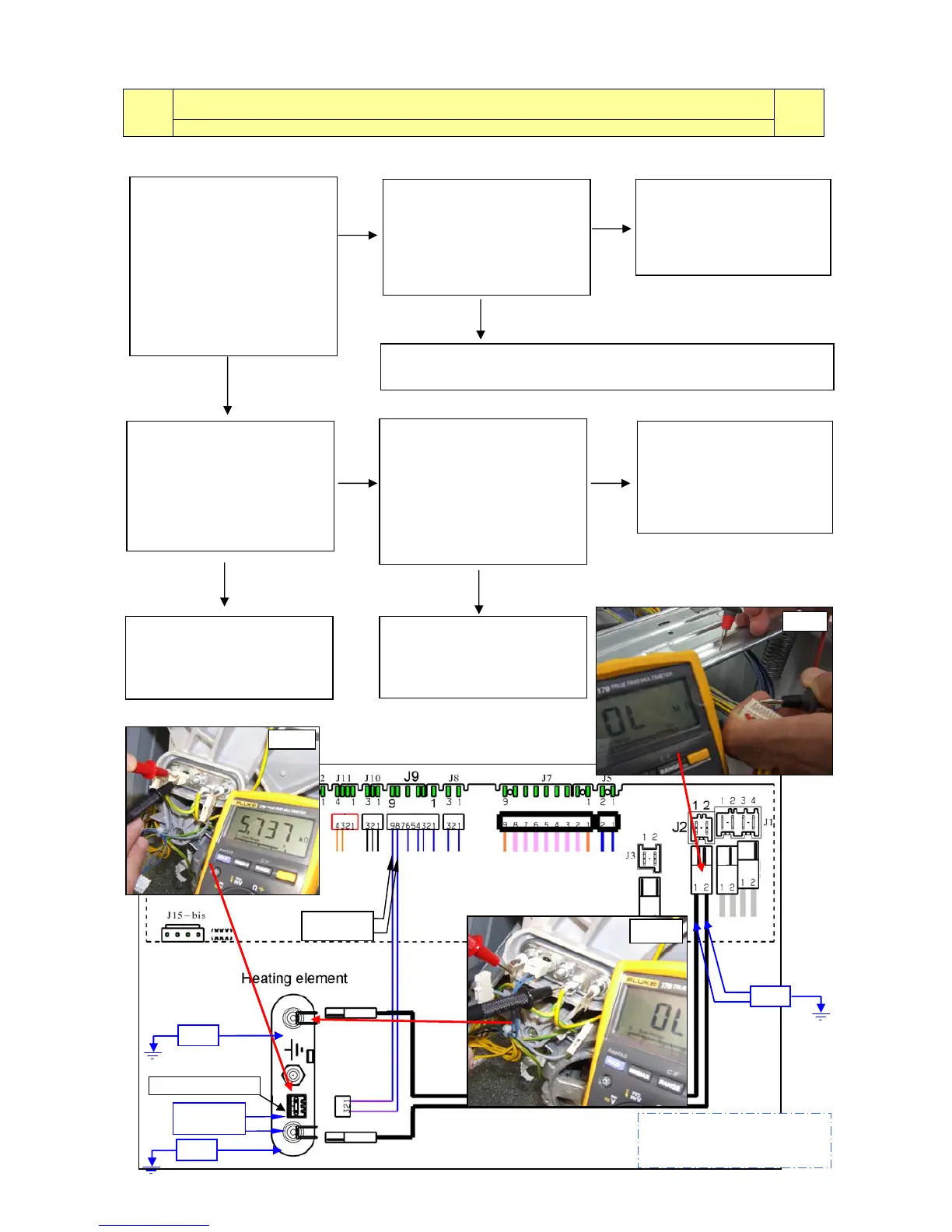

Tests to be performed:
E62: Overheating during washing (version WM)
E62
The temperature of the NTC sensor exceeds 88°C for more than 5 minutes.
E62
Circuit
board
Measure the NTC sensor
across terminals J9-9 and
J9-8 of the circuit board
connector.
Is the value correct?
(between 5.7 and 6.3 KΩ at
20°C
Start the diagnostic cycle
and fill with water up to the
level of the door to ensure
that the heating element is
completely dipped into.
Measure between wiring
connector J2-2 and the
structure of the appliance -
see fig 6 -
Is the circuit o
en?
Detach the connector and
measure across the heating
element and the ground
contact.
- see fig. 15 -
Is the circuit open?
Replace the heating
element and restart the
diagnostic cycle to check
for further alarms.
Check/replace the wiring and restart the diagnostic cycle to check
for further alarms.
Detach the connector and
measure directly on the
NTC sensor.
- see fig. 14 -
Is the value correct?
(between 5.7 and 6.3 KΩ at
20°C)
Replace the NTC sensor
and restart the diagnostic
cycle to check for further
alarms.
Replace the circuit board
and restart the diagnostic
cycle to check for further
alarms.
Check/replace the wiring
and restart the diagnostic
cycle to check for further
alarms.
If there are traces of burning
on the circuit board, refer to
page 90
fi
