Electrolux EWM2100 - ED3: Drying Heating Element 2 Faulty

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 78/91 599 70 56-70
NO
NO
YES
YES
ED3 ED3: Drying heating element 2 faulty ED3
Tests to be performed:
Check across terminals
J5-1 ÷ J8-3 and J5-1 ÷ J8-4
of the connector wiring
(see fig. 25).
Is the value the one described in
Tab. 2?
Detach the connectors
and measure the value of
the two branches of the
drying heating element.
Does it correspond to
value described in
Tab. 2?
Are the values correct?
Replace the drying
heating element and
restart the diagnostic
cycle to check for further
alarms.
Replace the wiring and
restart the diagnostic
cycle to check for further
alarms.
Replace the WD board and
restart the diagnostic cycle to
check for further alarms.
Drying heating element
Branch A
Across J5-1 and J8-3 the value must be
betweeen:
51.5Ω and 69Ω.
Branch B
Across J5-1 and J8-4 the value must be
between:
51.5Ω and 69Ω.
NOTE: The measurements must be
carried out with a room temperature of
25
°
C
Tab. 2

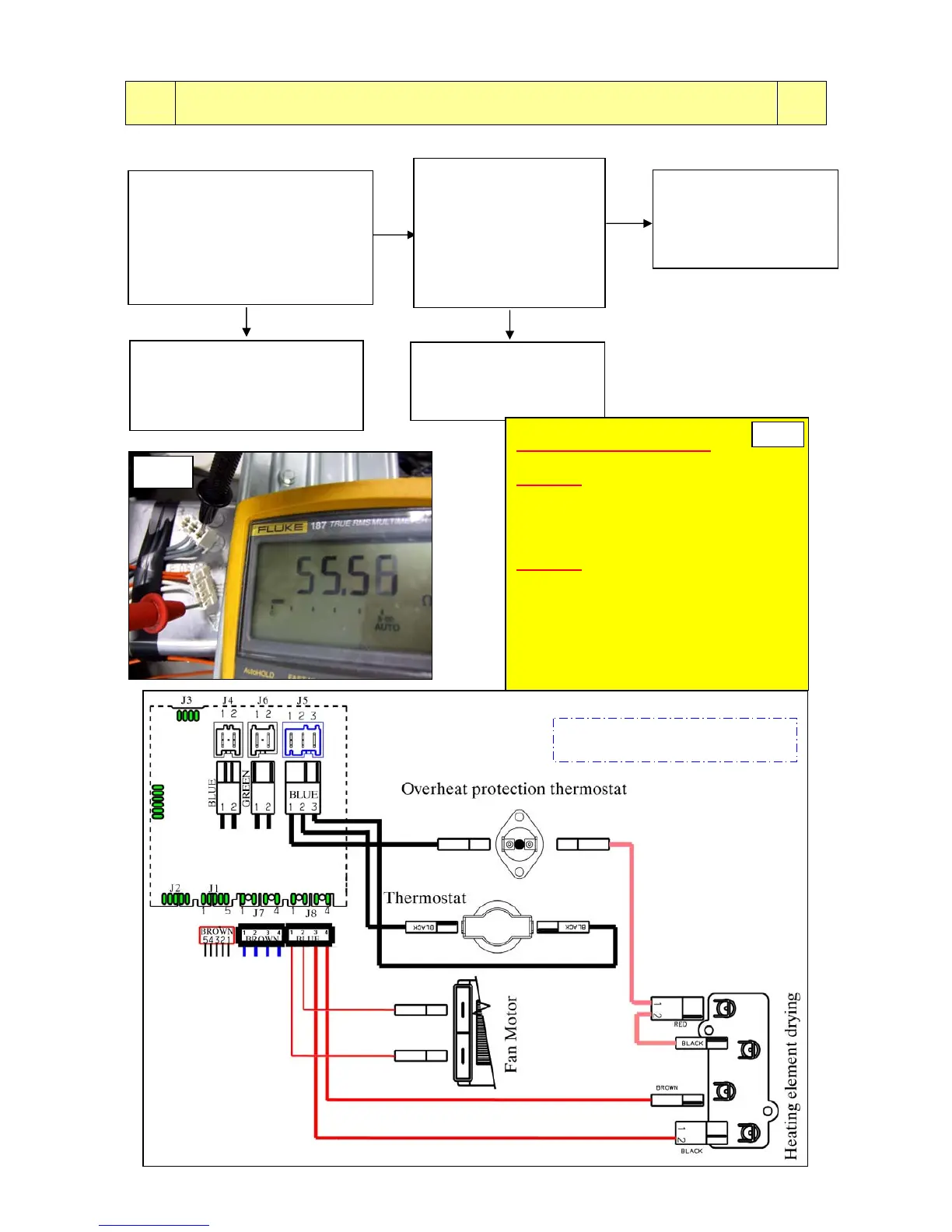

Fig. 25
WD
board
If there are traces of burning on the
circuit board, refer to page 90
