Electrolux EWM2100 - CIRCUIT BOARD CONNECTORS; Connector Pinouts WM;WD

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 89/91 599 70 56-70 599 70 56-70

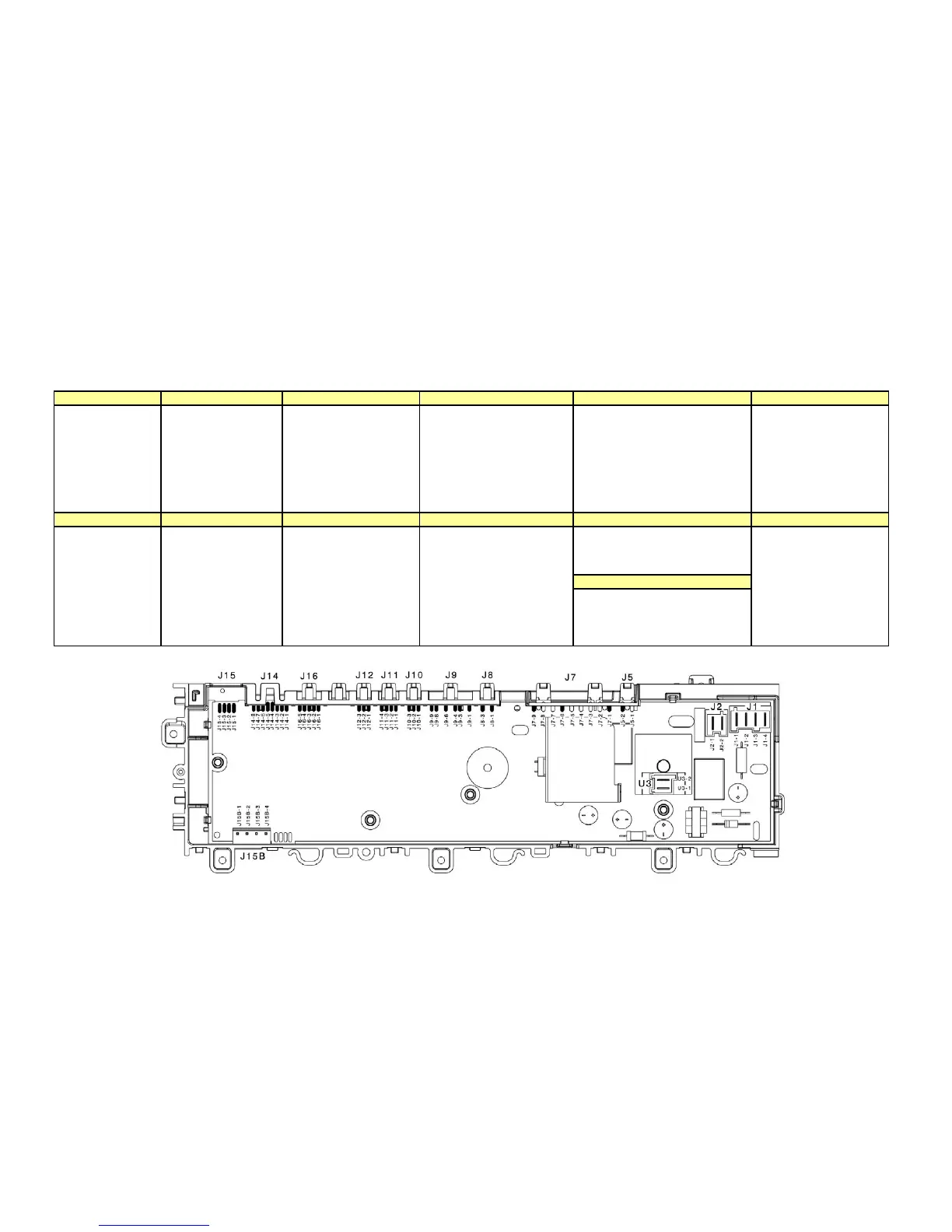

12 CONNECTORS ON CIRCUIT BOARD WM/WD
J15/J15B J16 J11 J9 J7 J1
Serial interface:
J15-1 ASY_IN
J15-2 ASY_OUT
J15-3 +5V
J15-4 GND
Communication with
WD external board:
J16-1 Vee 12V
J16-2 5V
J16-3 Rx/Tx
J16-4 GND
J16-5 N.C.
J11-3 Flowmeter (GND)
J11-4 Flowmeter (signal)
J9-1 Washing solenoid (triac)
J9-3 Solenoids (line)
J9-4 Solenoids (line)
J9-6 Pre-wash solenoid (triac)
J9-8 NTC temperature sensor
J9-9 NTC temperature sensor
J7-1 Drain pump (line)
J7-2 Motor (stator - ½ field)
J7-3 Motor (stator full field
J7-4 Motor (rotor)
J7-5 Motor (rotor)
J7-6 Motor (triac)
J7-7 Motor (tachometric generator)
J7-8 Motor (tachometric generator)
J7-9 Drain pump (triac)
J1-1 Door safety interlock
(triac)
J1-2 Door safety interlock
(line-sensing)
J1-3 Door safety interlock
(line)
J14 J12 J10 J8 J5 U3
J5-1 Circulation pump (line)
J5-2 Circulation pump (triac)
J2
LCD Module:
J14-1 RES_SAT
J14-2 CS_SAT
J14-3 Vee (12V)
J14-4 GND
J14-5 5V
J14-6 SY_OUT
J14-7 SY_IN
J14-8 SY_CLOCK
J12-1 Drum position
sensor DSP
(sensing)
J12-2 not used
J12-3 Drum position
sensor DSP (+5V)
J10-1 Analogic pressure
switch (+5V)
J10-2 Analogic pressure
switch (GND)
J10-3 Analogic pressure
switch (signal)
J
8-1 Bleach/condensation
solenoid
J8-3 Bleach/condensation
solenoid (tiac)
J2-1 Heating element (relay)
J2-2 Heating element (line)
U3-1 Line
U3-2 Line (neutral)
