Electrolux EWM2100 - E61: Insufficient Heating During Washing

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 53/91 599 70 56-70
NO
YES
NO
YES

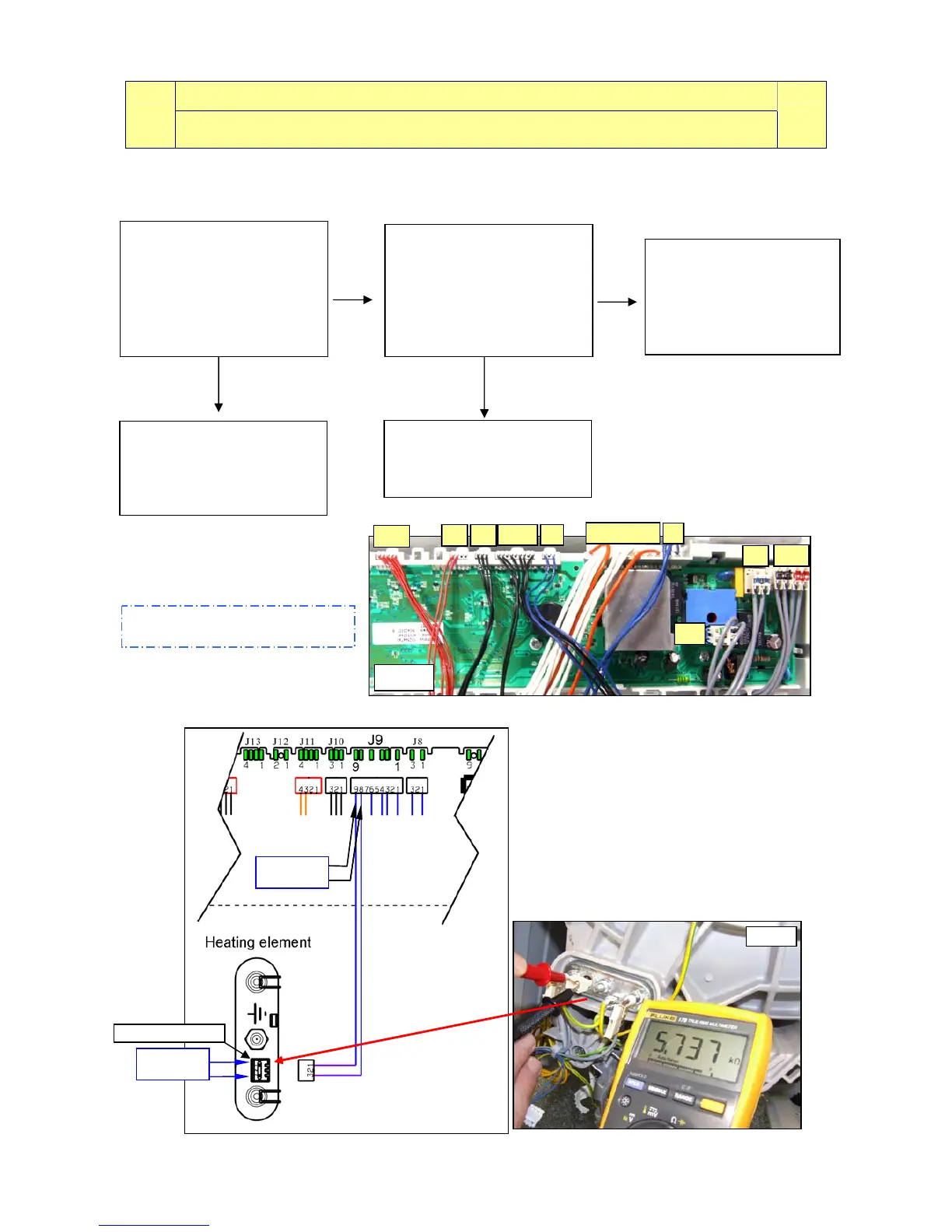

E61: Insufficient heating during washing
E61
Maximum heating time exceeded
 SOMETIMES THE ALARM CAN BE CAUSED BY THE POWER VOLTAGE TOO LOW!
E61
Tests to be performed:
Measure the value of the
NTC sensor across contacts
J9-9 and J9-8 of the circuit
board connector.
Is the value correct?
(between 5.7 and 6.3 KΩ at
20°C)
Detach the connector and
measure the value directly
on the NTC sensor.
Is the value correct?
- see fig. 14 -
(between 5.7and 6.3 KΩ at
20°C)
Replace the NTC
temperature sensor and
restart the diagnostic
cycle to check for further
alarms.
Replace the circuit board
and restart the diagnostic
cycle to check for further
alarms.
Check/replace the wiring
and restart the diagnostic
cycle to check for further
alarms.
If there are traces of burning on
the circuit board, refer to page 90
J1
J2
U3
J5
J7
J8J9
J10J11
J16
Fig.4
Circuit
board
5.7 ÷ 6.3KΩ
(20°C)
Temperature probe
5.7 ÷ 6.3KΩ
(20°C)
5.7 ÷ 6.3KΩ
(20°C)
5.7 ÷ 6.3KΩ
(20°C)
fi
g
. 14
