Electrolux EWM2100 - E66: the Contacts of the Heating Element Power Relay Are Always Closed (Version WD)

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 57/91 599 70 56-70
fig. 15
YES
NO
NO
YES
E66

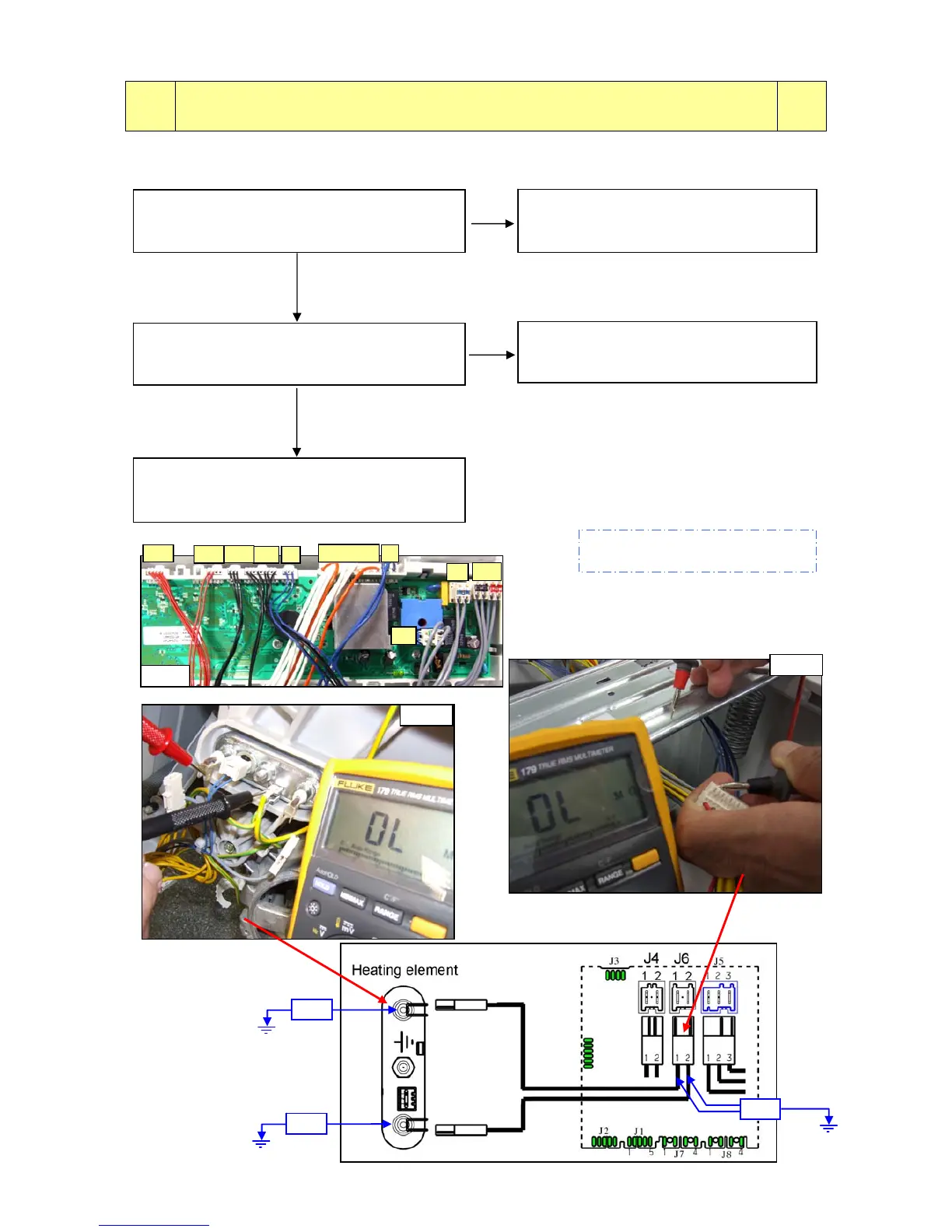

E66: The contacts of the heating element power relay are
always closed (version WD)
E66
Tests to be performed:
Measure across connector J6-1/J62-2 on the
circuit board and the structure of the appliance.
(Fig. 6) Is there any current leakage?
Replace the WD board and restart the
diagnostic cycle to check for further
alarms.
Detach the connector and measure across the
heating element and the ground contact. – (fig.
15
)
- Is the circuit open?
Replace the heating element and restart
the diagnostic cycle to check for further
alarms.
Check/replace the wiring and restart the
diagnostic cycle to check for further alarms.
fig. 6
∞
Ω
∞
Ω
WD
board
J1
J2
U3
J5
J7
J8
J9
J10
J11
J16
Fig.4
∞
Ω
If there are traces of burning on the
circuit board, refer to page 90
