Electrolux EWM2100 - ED1: Communication Problems Betweeen Main Circuit Board and WD Board

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 74/91 599 70 56-70
NO
YES
ED1
ED1: Communication problems betweeen main circuit board and WD
board
ED1
Tests to be performed:
Replace the wiring and
restart the diagnostic
cycle to check for
further alarms.

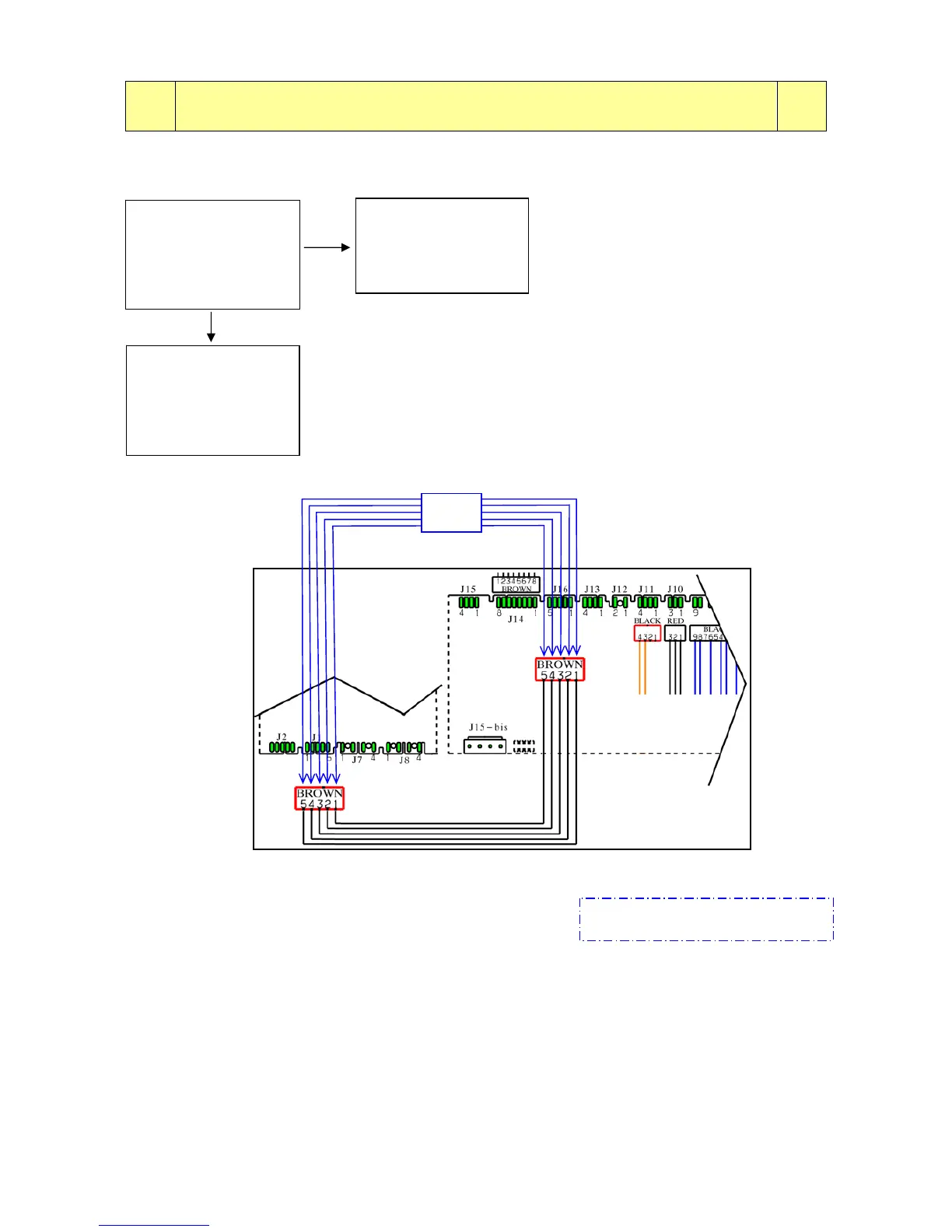

Measure the continuity
between connector J16
(main circuit board) and
J1 (WD board).
Is the wiring OK?
Replace the WD board
and restart the
diagnostic cycle to
check for further
alarms.
If there are traces of burning on the
circuit board, refer to page 90
Circuit
board
Scheda
WD
0
Ω
