Electrolux EWM2100 - EA6: Drum Flap Faulty (Top-Loaders)

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 70/91 599 70 56-70
NO
NO NO
NO
NO

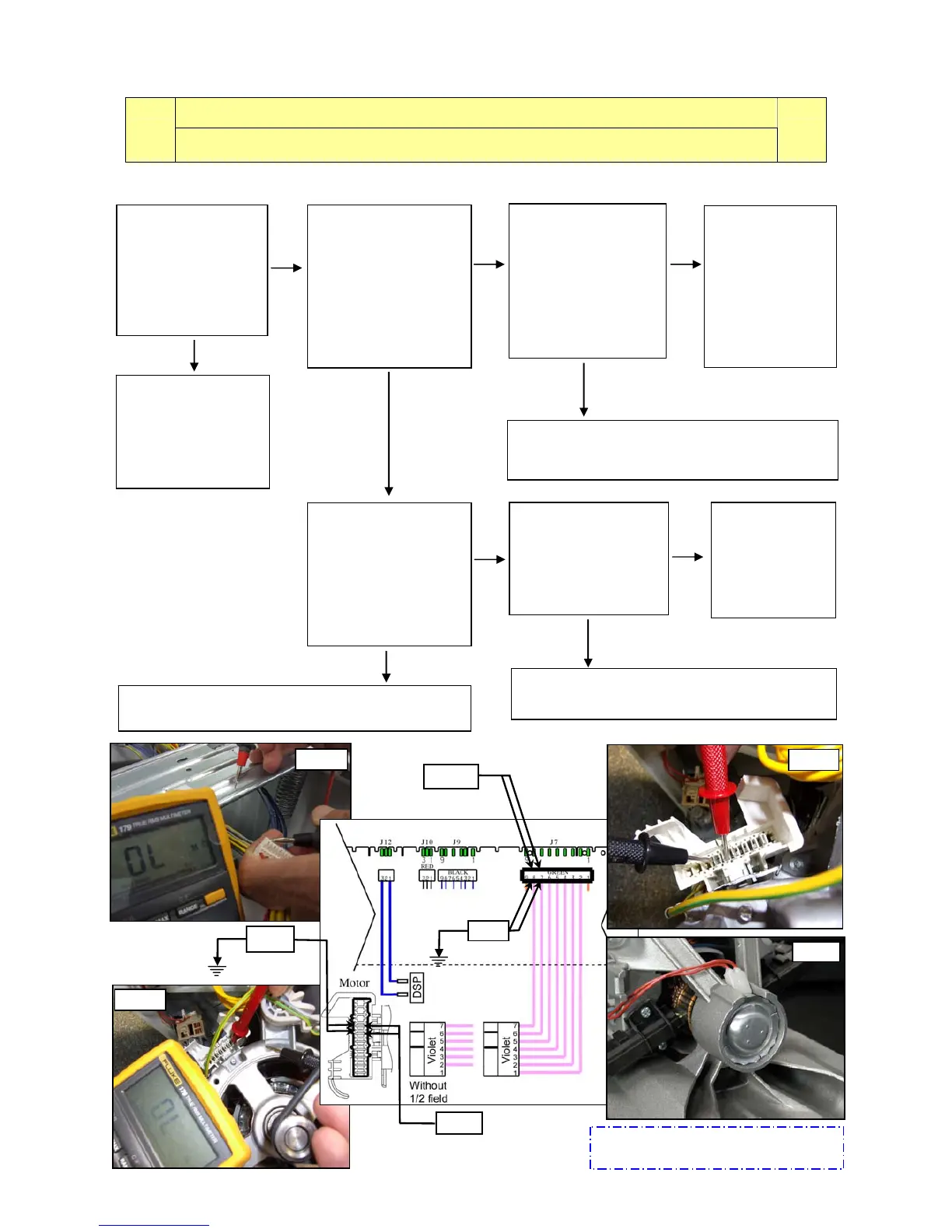

EA6: Drum flap faulty (top-loaders)
EA6
Cycle immediately blocked if a not correct tachometric signal is identified for at least 3
seconds
EA6
Tests to be performed:
fig. 10
Open the door and
manually check if
the drum turns
easily.
Is the drum
blocked?
Measure across the
terminals of the wiring
connector J7-7 and J7-
8.
Are the values (Ω) of
the tachometric
generator correct?
(see page 50
- Step 4, phase “A” ).
YES
Replace the drum
flap and restart the
diagnostic cycle to
check for further
alarms.
YES
Detach the connector
from the motor and
measure (Ω) the coil
of the tachometric
generator -see fig.11-
Is the value correct?
(see page 50
- Step 4, phase “A” ).
YES
Check/replace the wiring and restart the
diagnostic cycle to check for further alarms.
Replace the
motor or the
tachometric
generator and
restart the
diagnostic cycle
to check for
further alarms.
Measure across the
same terminals of the
wiring connector (J7-7
and J7-8) and the
structure of the
appliance.
Is there any leakage?
- (see fig.6) -.
Check for the
positioning of the
tachometric
generator.
Is it correct?
-
(
see fi
g
.12
)
-
Replace the main circuit board and restart the
diagnostic cycle to check for further alarms.
Replace the
motor/ generator
and restart the
diagnostic cycle
to check further
alarms.
Check/replace the wiring and restart the diagnostic
cycle to check for further alarms.
YES
YES
fig. 6
XXX
Ω
∞ Ω
Circuit
board
XXX
Ω
∞
Ω
If there are traces of burning on the
circuit board, refer to page 90
fig. 11
fi
g
. 12
