03-2009 SOI/DT-mdm FCPD-dp Quality-fz 58/91 599 70 56-70
Start the diagnostic cycle
and fill with water up to the
level of the door to ensure
that the heating element is
completely dipped into.
Measure between wiring
connector J2-1/J2-2 and the
structure of the appliance
-see fig.6-
Is the circuit open?
NO
NO
YES
YES
E68 E68: Washing heating element leaks current (version WM) E68
Tests to be performed:
Detach the connector and
measure across the heating
element and the ground
contact.
- see fig. 15 -
Is the circuit open?
Start phase 8 of the
diagnostic cycle, drain water
from tub. Replace the
heating element and restart
the diagnostic cycle to
check for further alarms.
Check/replace the wiring
and restart the diagnostic
cycle to check for further
alarms.
Replace the circuit board
and restart the diagnostic
cycle to check for further
alarms.

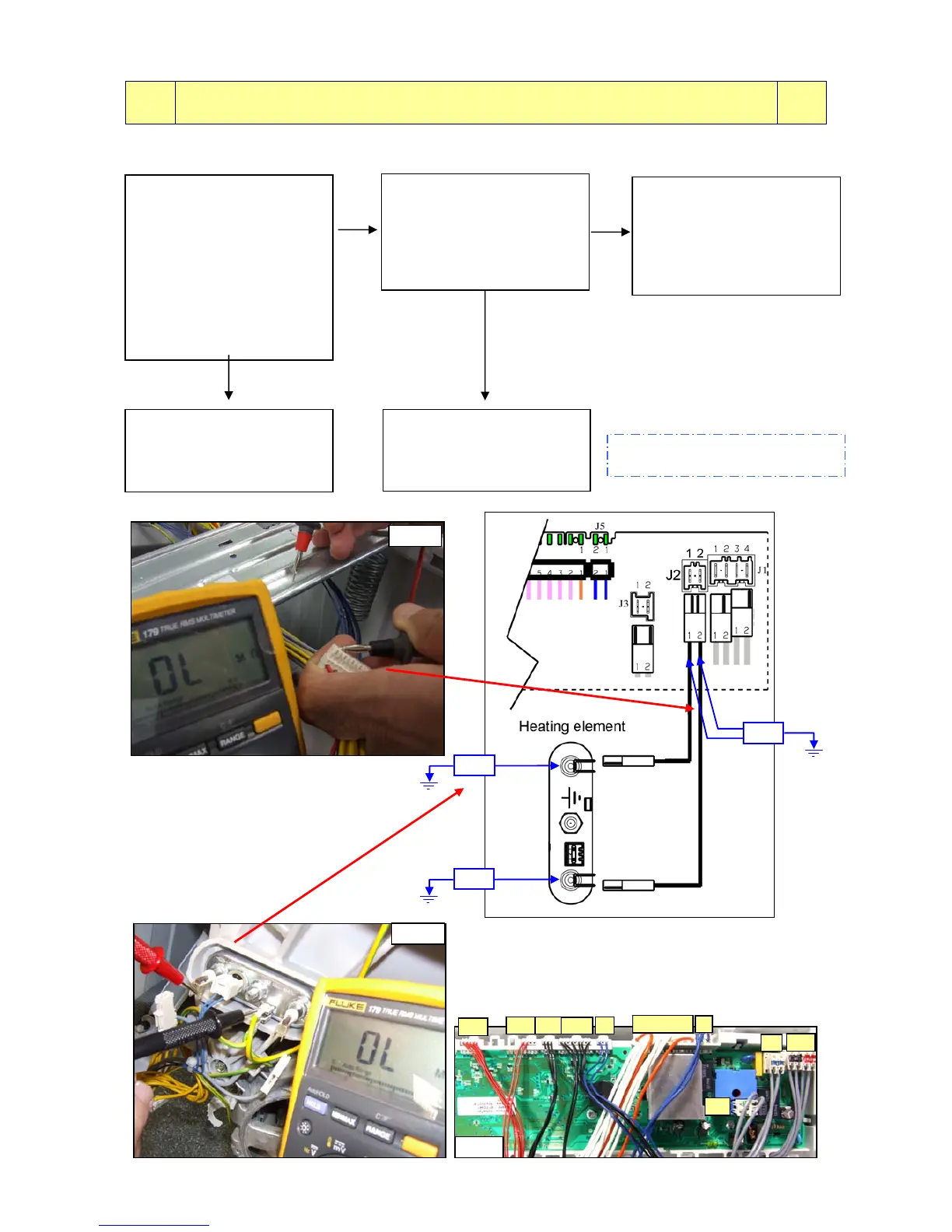

fig. 15
fig. 6
If there are traces of burning on the
circuit board, refer to page 90
Circuit
board
