03-2009 SOI/DT-mdm FCPD-dp Quality-fz 22/91 599 70 56-70

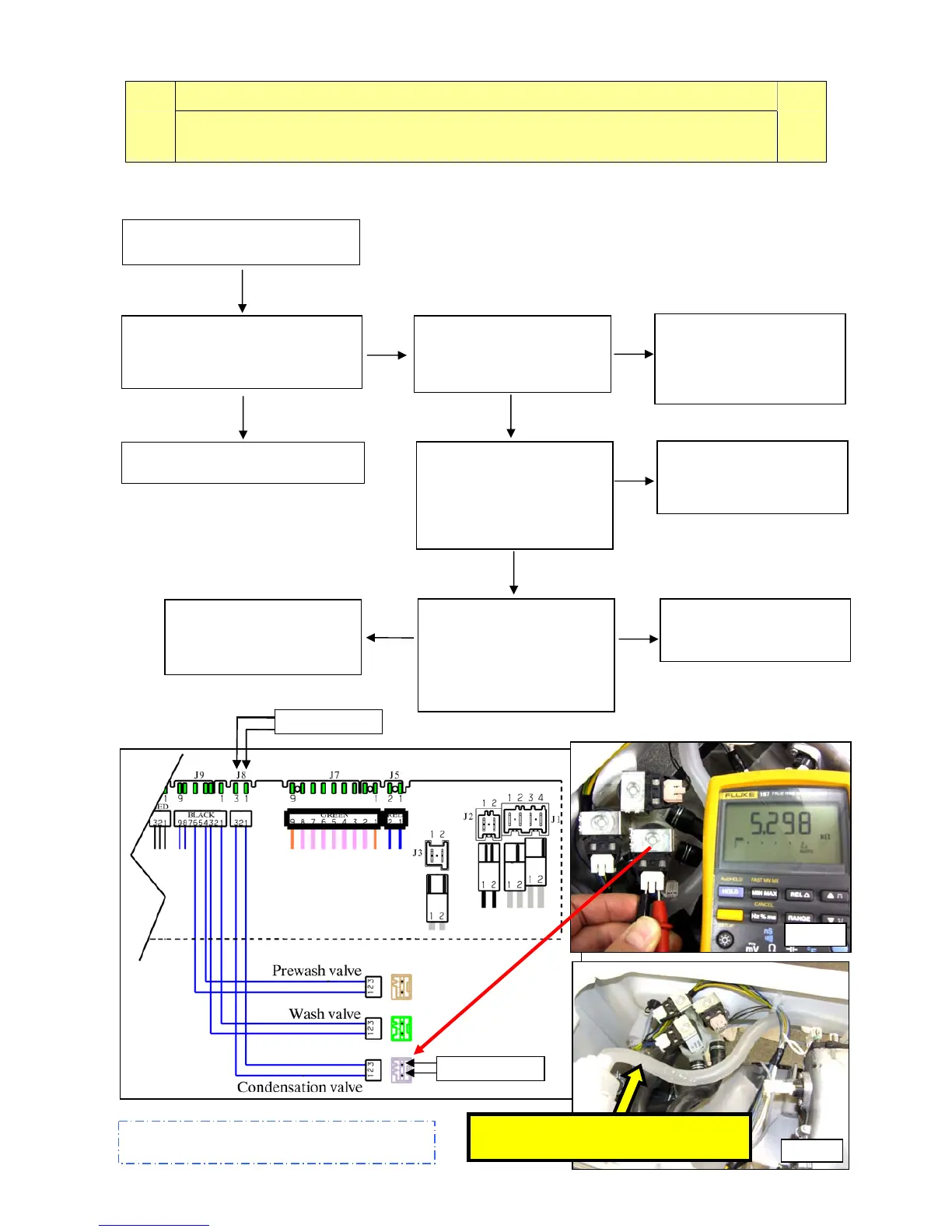

E12: Difficulty in filling water during drying phase
E12
To check if the condensation valve is working, machine measures the increasing water level
at the beginning of the drying phase. (Alarm appears after 10 min. of filling without reaching
the level).
E12
Tests to be performed:
Start the diagnostic cycle and
perform the phase 9 drying.
YES
Is a small quantity of water going
through the hose that connects the
condenser to the detergent
compartment? (see fig. 27)-
YES
Restart the diagnostic cycle to
check for further alarms.
NO
Are the tap and hoses letting
the water coming in? (tap
open, hoses connected and
not kinked).
YES
Is the Ohm value of the valve
about
3,5÷4,5 kΩ? (Measure
directly on the solenoid valve
without cable). – (see fig.
26)-
3500÷4000 Ω 3500÷4500 Ω
Circuit
board
3500÷4500 Ω
Reconnect the connector and
measure about 3,5÷4,5 KΩ
on the valve wiring connector
on the PCB side: across J8-3
and J8-1. Is the solenoid
valve wiring ok?
YES
YES
Replace the electronic board
and restart the diagnostic
cycle to check for further
alarms.
NO
NO
Replace the valve and
restart the diagnostic cycle
to check for further alarms.
Replace/reset wiring and
restart the diagnostic cycle
to check for further alarms.
If there are traces of burning on the circuit
board, refer to page 90
Fig.26
Fig. 26
Fig. 27
NO
Open the tap / position the
hoses and restart the
diagnostic cycle to check for
further alarms.
Little hose which connects the
condenser to the deter
To Next Page
