Electrolux EWM2100 - E23: Malfunction of the Component (Triac) that Controls the Drain Pump

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 29/91 599 70 56-70
NO
NO
YES
NO
YES
YES
E23 E23: Malfunction of the component (triac) that controls the drain pump E23

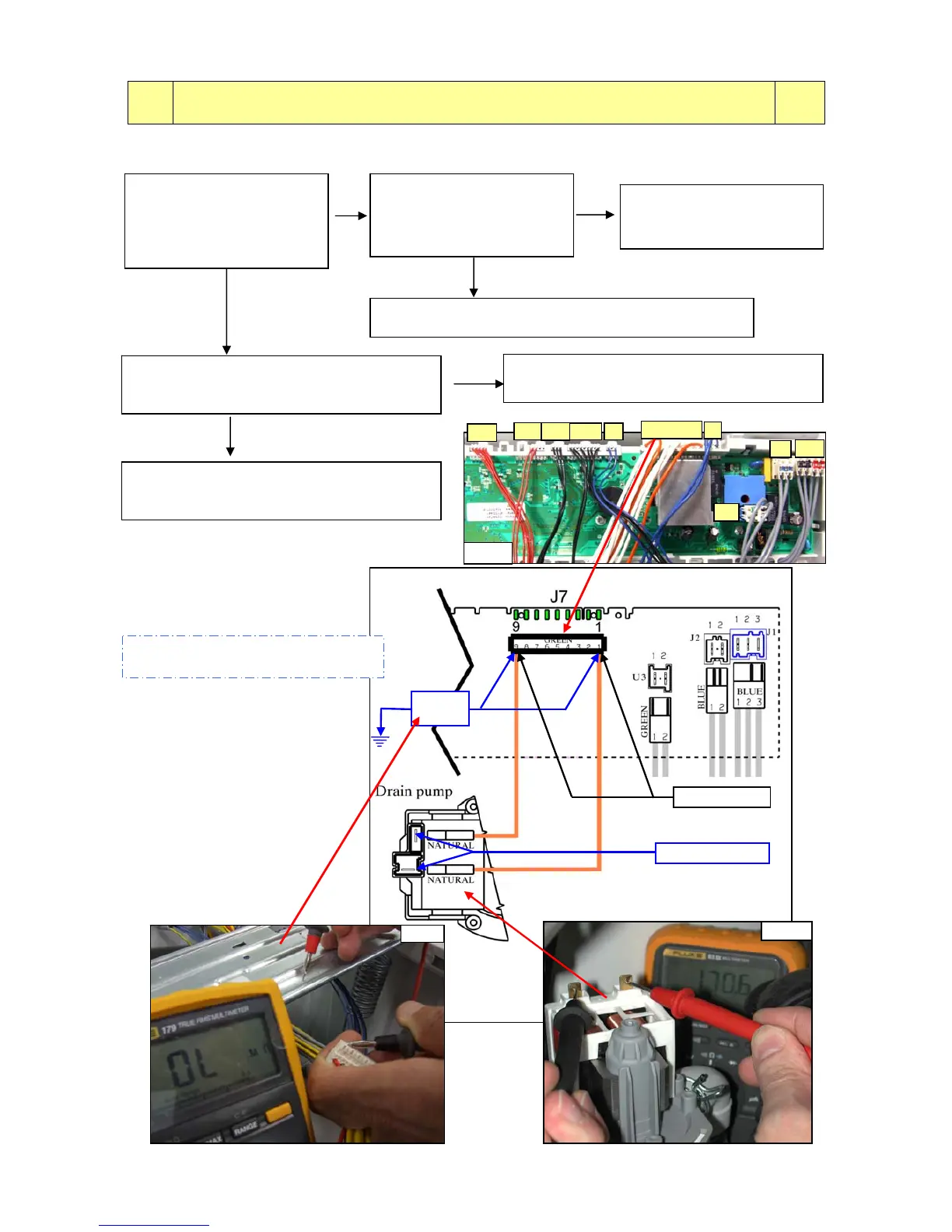

Tests to be performed:
Circuit
board
Is the resistance of the pump
about 150-200 Ω? (Measure
across connectors J7-1 and
J7-9 on circuit board side –
(fig.4)-
Is the resistance of the pump
about 150-200 Ω?
(Measure directly on the
pump) –(see fig.5)-
Check and if necessary replace the wiring and restart the
diagnostic cycle to check for further alarms.
Measure across connectors J7-1 / J7-9 and the
structure of the appliance - fig.6 -
Is there any current leakage?
Replace the main circuit board and restart the
diagnostic cycle to check for further alarms.
Replace the pump and restart
the diagnostic cycle to check
for further alarms.
fi
g
. 5
fig. 6
If there are traces of burning on the
circuit board, refer to page 90
Check and if necessary replace the wiring and
restart the diagnostic cycle to check for further
alarms.
∞ Ω
155÷200Ω
155÷200Ω
J1
J2
U3
J5
J7
J8
J9
J10
J11
J16
Fig.4
