Electrolux EWM2100 - Page 40

03-2009 SOI/DT-mdm FCPD-dp Quality-fz 40/91 599 70 56-70

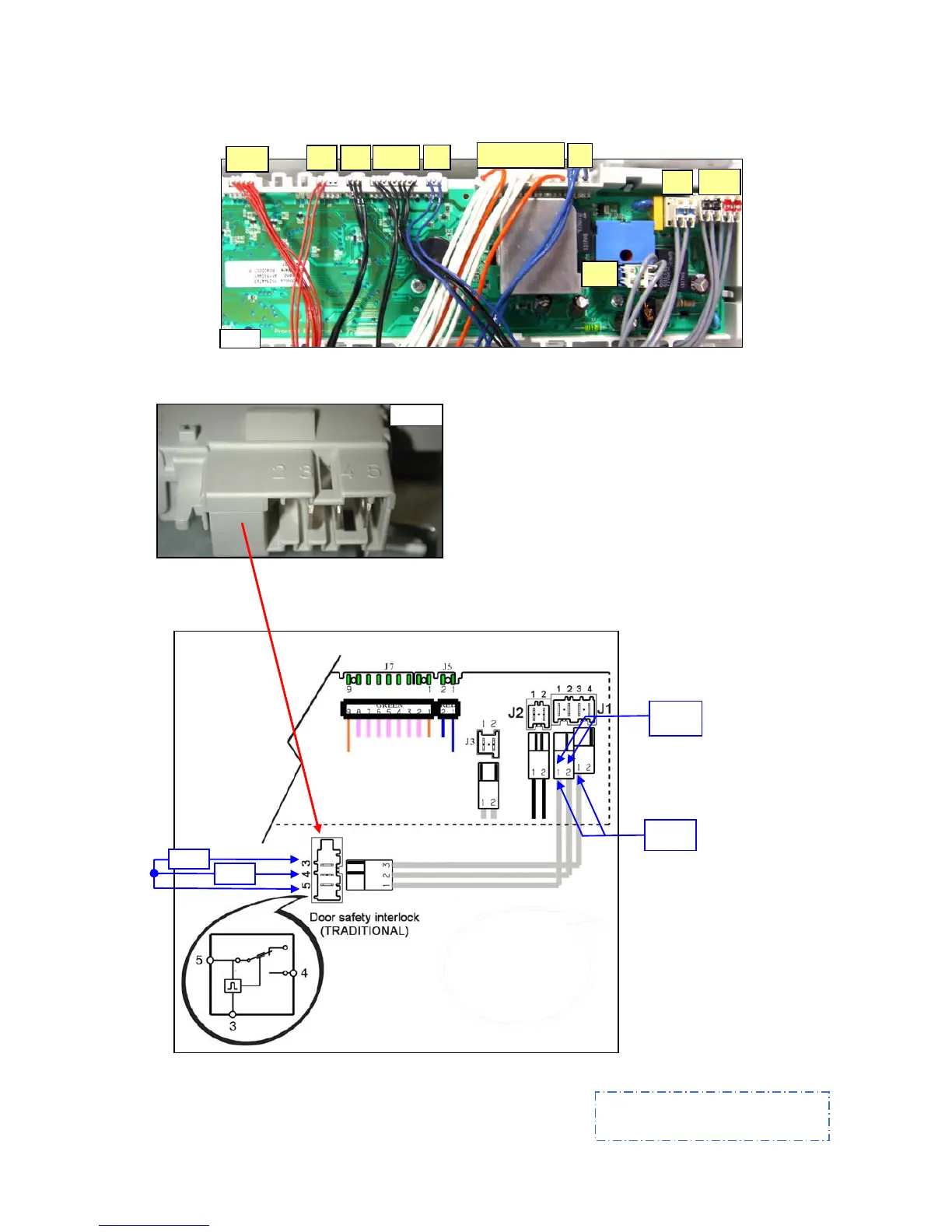

E42 (3-contact device)
fig. 9
Circuit
board
n Ω
∞ Ω
∞
Ω
n Ω
If there are traces of burning on
the circuit board, refer to page 90
J1
J2
U3
J5
J7
J8
J9
J10 J11
J16
Fig.4
