19
9500
(A)

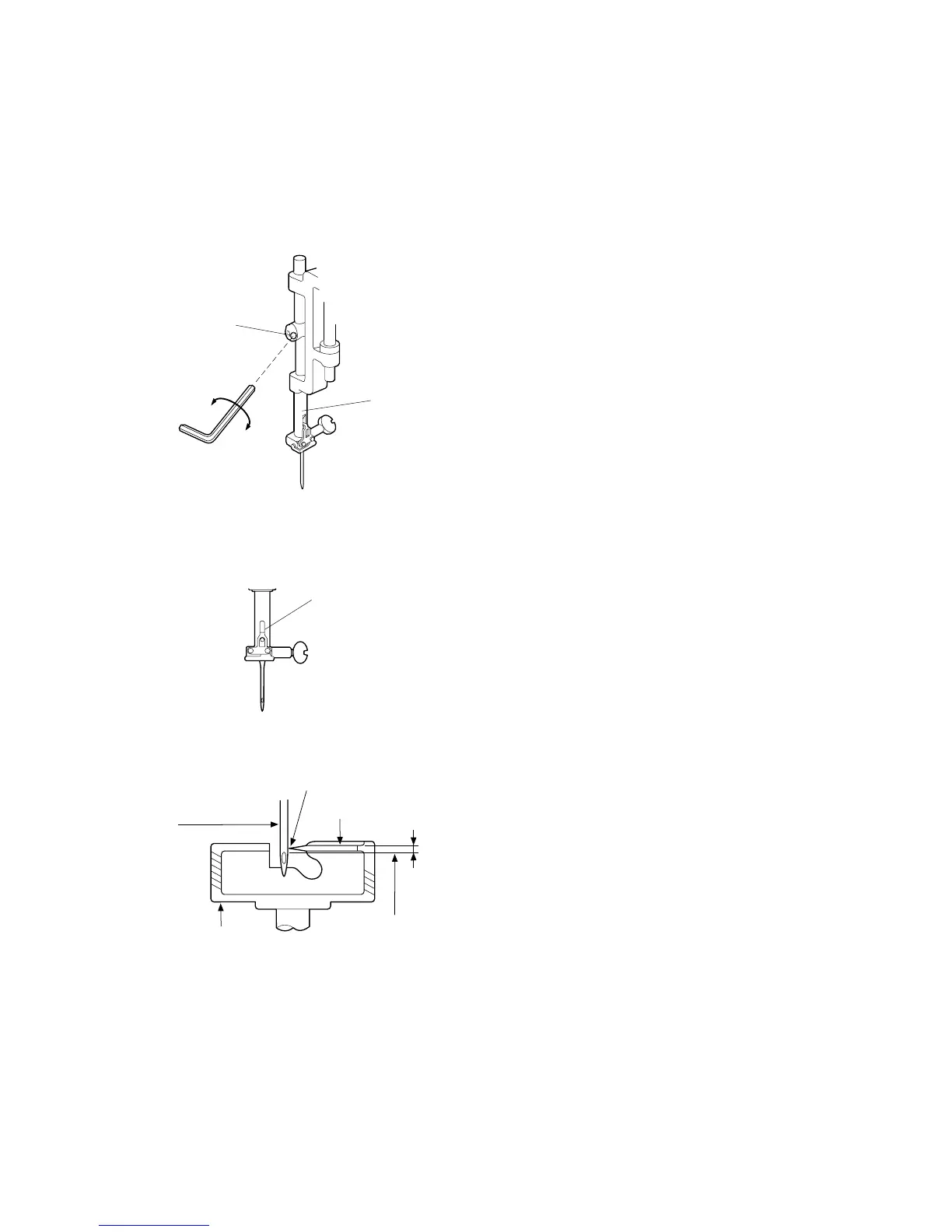

Adjusting Needle Bar Height
The standard distance between the upper edge of the needle eye and the tip of the rotary
hook should be in the range of 1.6 - 2.0 mm when the rotary hook meets the right side of the
needle in ascending travel of needle from its lowest position.
1 Remove the presser foot, Needle plate and
Bobbin holder.
2Turn the power switch “ON” and select the pattern
No.2.
3 Press “ADJUST” key and set the zigzag width at “0”,
then turn the power switch “OFF”.
4Turn the handwheel to raise the needle bar from the
lowest position until the tip of the rotary hook meets
with the right side of the needle .
5 Open the face cover and loosen Screw (A) as shown.
6Move the Needle bar up or down to adjust the
needle bar height.
7 Tighten the Screw (A). Be sure that the groove on
the needle bar facing right in the front.
8 Shut the face cover.
9 Reattach the Bobbin holder, Needle plate and
presser foot.
e
q
q
w
q
w
e
Needle #14
Rotary hook race
Top of needle eye
Surface of hook race
1.6 - 2.0 mm
To Next Page
