Setting Position of the Upper and Lower Shafts

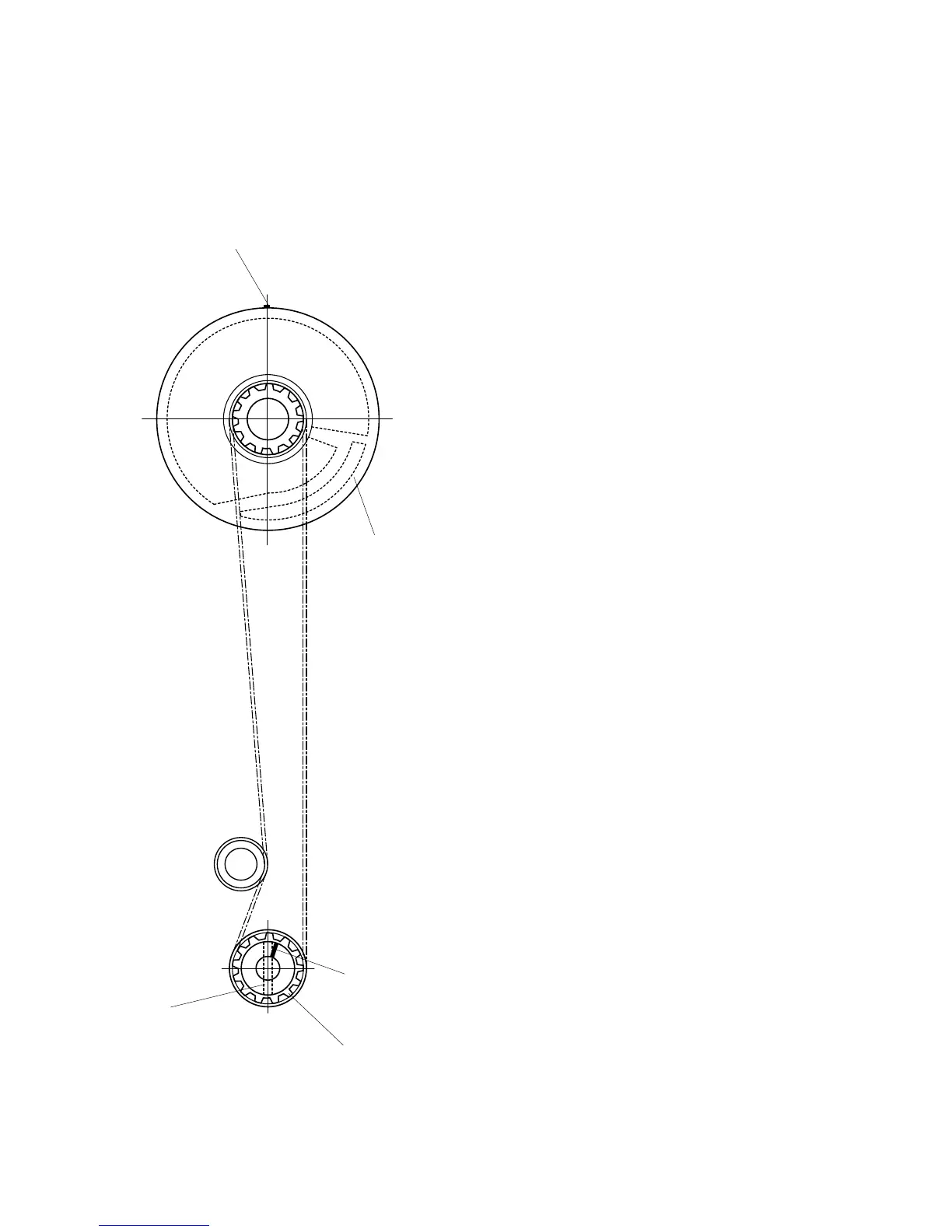

When the setting mark (A) on the cam (B) is exactly at the
top, the spring pin (E) is vertical and the setting mark (C)
on the belt wheel (D) shoul be in the position as shown.
Setting mark (A)
Clutch cam (B)
Setting mark (C)
Lower shaft belt gear (D)
Spring pin (E)
