ELNA 9500 - To Adjust Upper Shaft Declutch Device

44
9500
To Adjust Upper Shaft Declutch Device

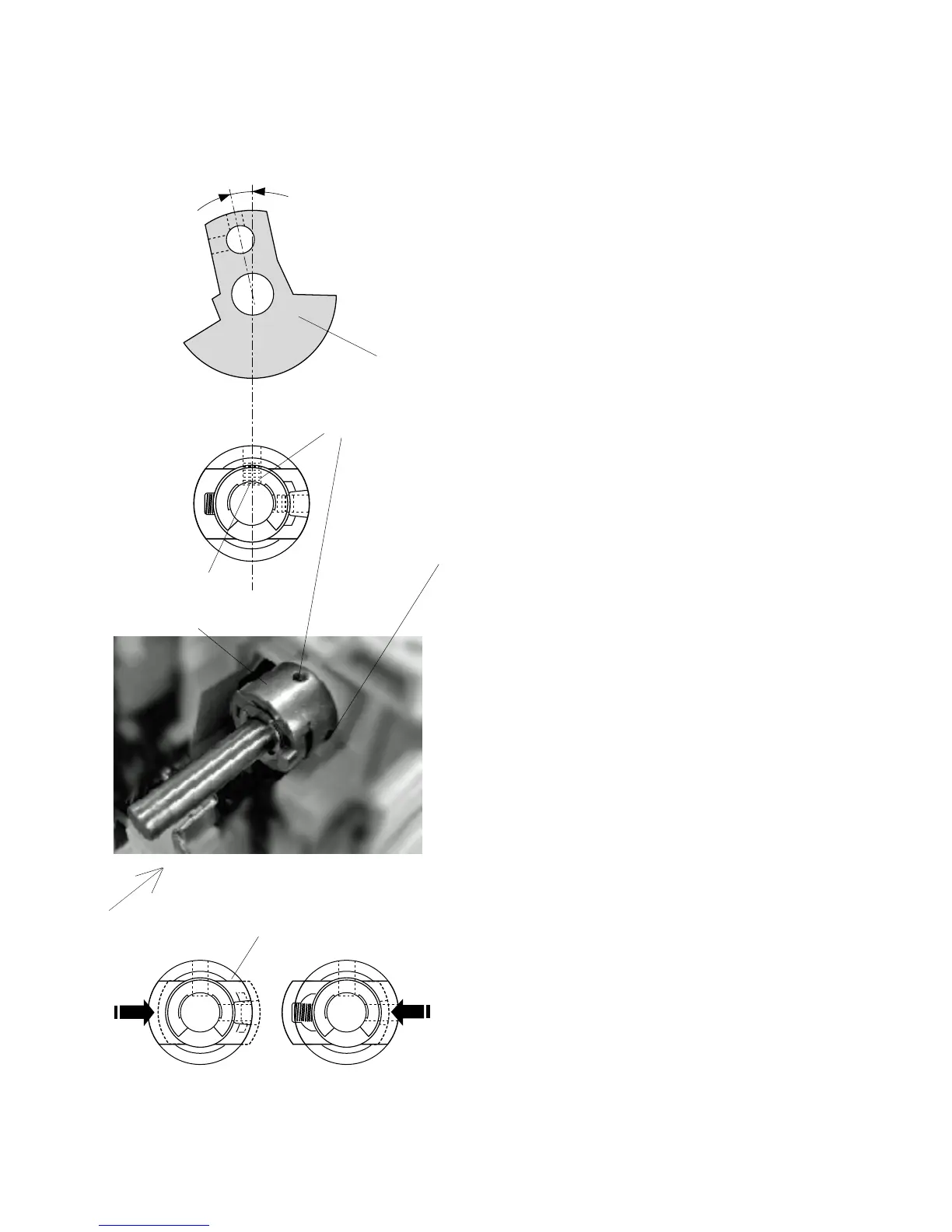

[Correct position of the upper shaft declutch device (E)]
When the flat part of the upper shaft (C) is leveled,
the take up crank (D) should be at the angle of 12.3
degree s (B).
[Play on the declutch piece]
To reduce the play of the declutch piece, loosen the set-
screw (F) and (G).
While pushing the upper shaft declutch device in the
derection of (I), tighten the setscrew (F). Then tighten the
setscrew (G). Make sure that the declutch piece (H) moves
smoothly.
12.3 degrees (B)
VIEW-A
Setscrew (F)
Setscrew (G)
VIEW-A
Take up crank (D)
Flat part of the
upper shaft (C)
Upper shaft declutch device(E)
Declutch piece (H)
The declutch piece should move smoothly in both ways.
