Solenoid
Adjusting Thread Cutter Solenoid

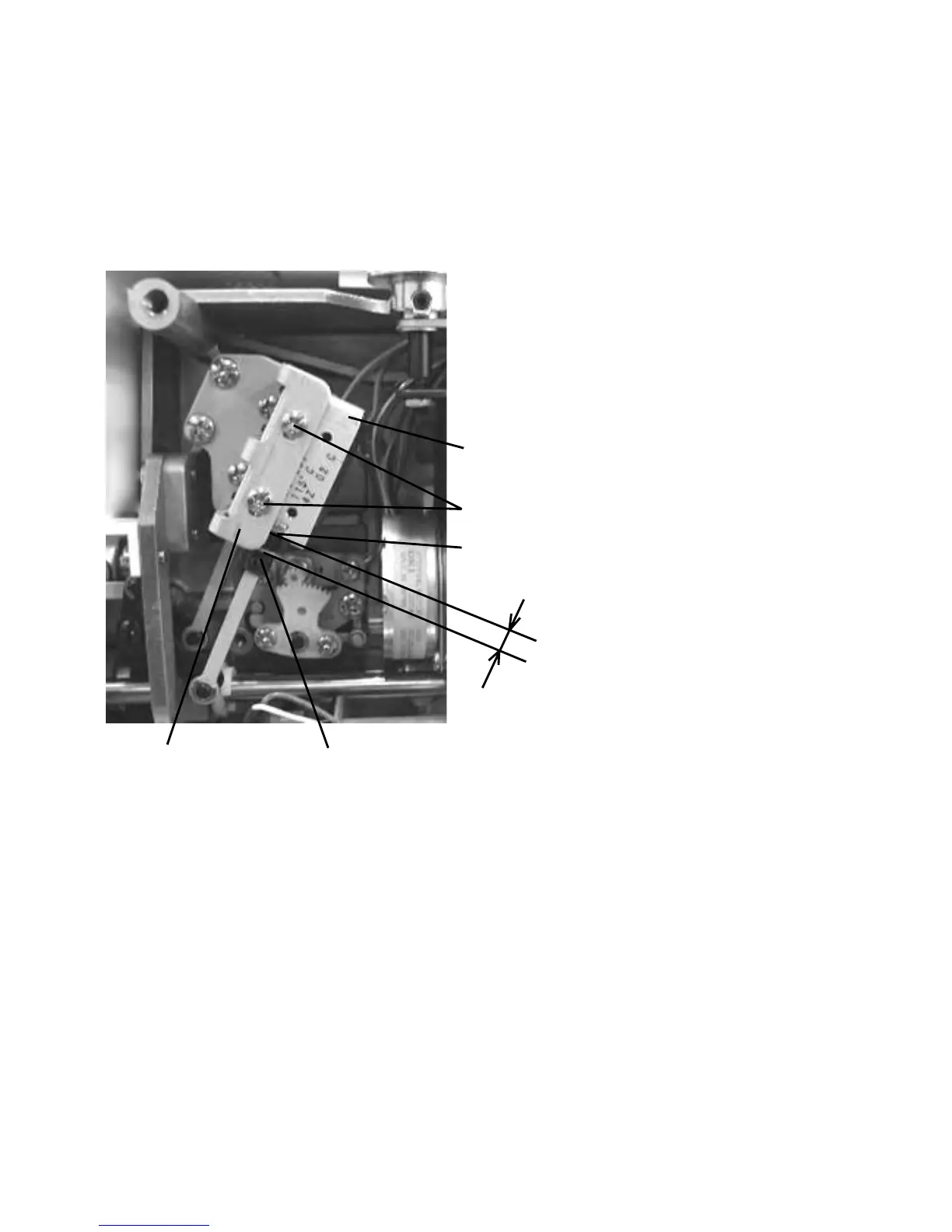

Space between the plunger and the upper surface of the yoke should be 5 mm when the
plunger oparated.
1 Remove the base.
2 Loosen Screws (A) (2 pcs) and move the set
plate up or down to make space between the
snap ring of the plunger and the upper
surface of the yoke 5 mm.
3Tighten Screws (A).
4 Attach the belt cover.
q
q
w
w
e
e
To Next Page
