ELNA 9500 - Adjusting Upper Shaft Clutch Solenoid

37
9500
(A)
5 mm
Adjusting Upper Shaft Clutch Solenoid

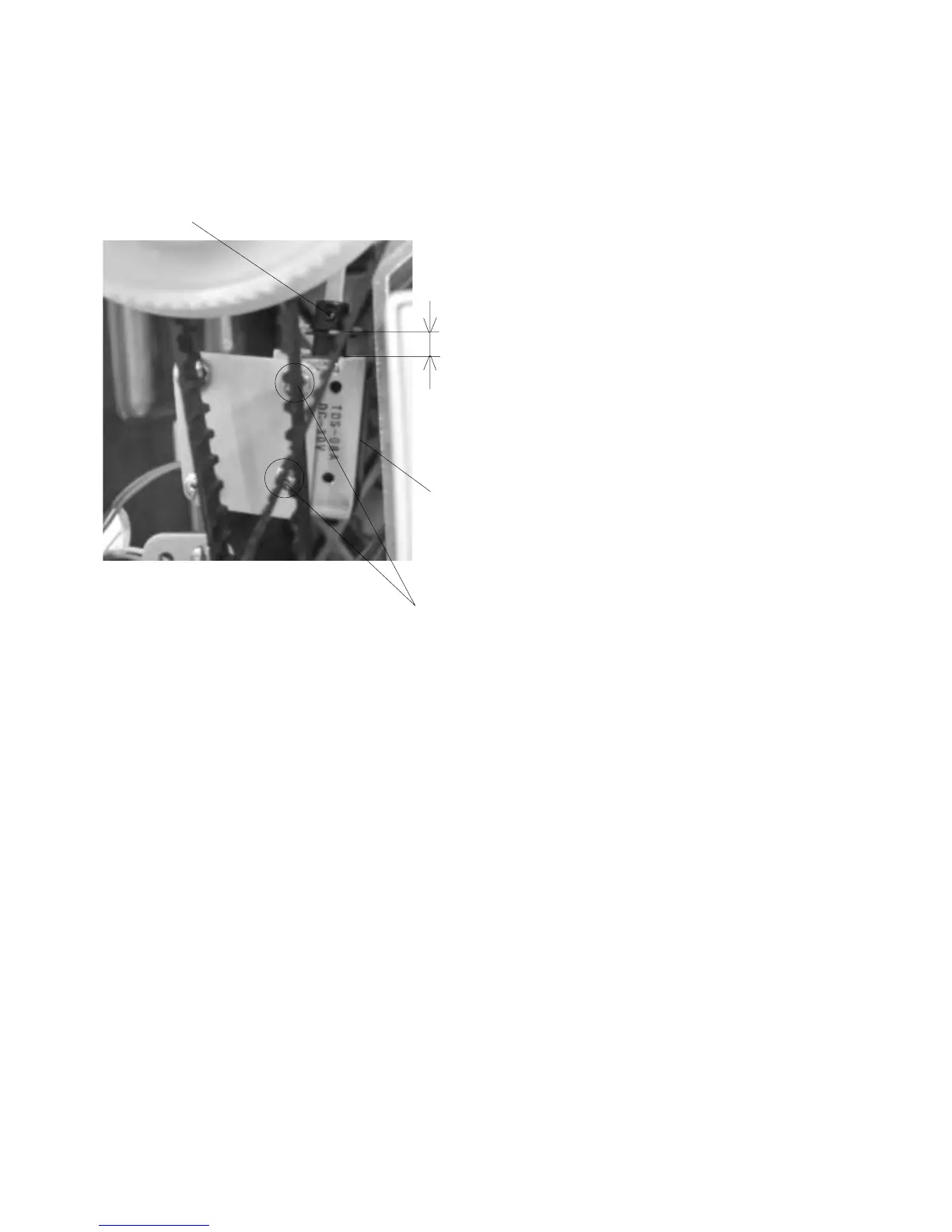

Space between the plunger and the upper surface of the yoke should be 5 mm.
1 Remove the belt cover.
2 Loosen Screws (A) (2 pcs) and move the yoke
up or down to make space between the snap ring
of the plunger and the upper surface of the
yoke 5 mm.
3Tighten Screws (A).
4 Attach the belt cover.
