ELNA 9500 - Setting Position of Parts on Lower Shaft

45
9500

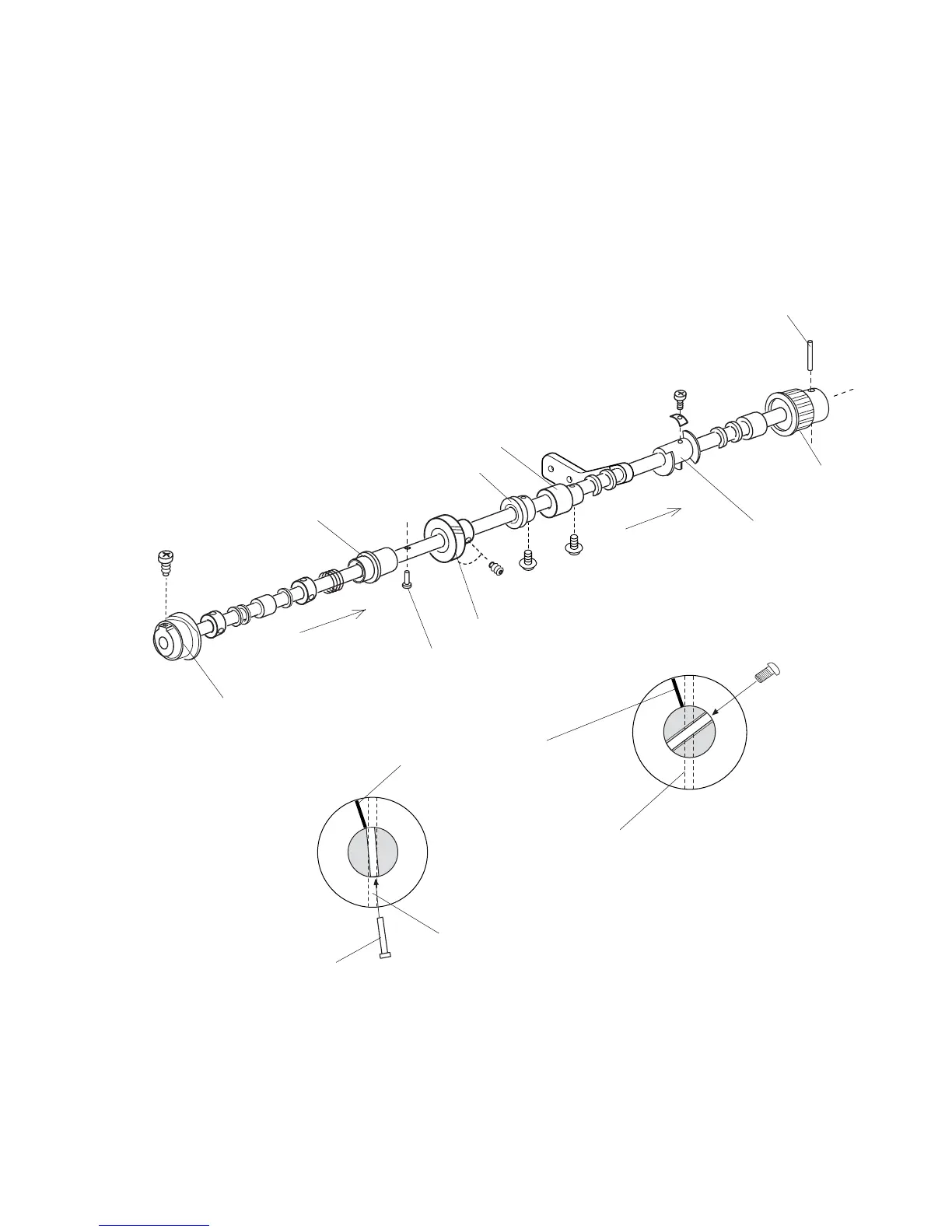

The setting positions of the parts on the lower shaft are as shown below.
The setting angle of the parts (A), (B) and (C) is the same as (D).
Setting Position of Parts on Lower Shaft
Feed lifting cam
Cam (B)
Feed cam (C)
Spring pin (D)
Belt wheel
Shield plate
Cam (A)
Pin
VIEW-X
VIEW-Y
VIEW-X
VIEW-Y
Pin
Spring pin
Spring pin (D)
Belt wheel setting mark
