ELNA 9500 - Adjusting Needle Thread Tension

27
9500
Adjusting Needle Thread Tension
The standard upper thread tension should be 59 to 67 grams when the machine is set for
pattern No.1 and the tension dial is set at “AUTO”, measured with a #50 polyester thread
being pulled at approximately 110 mm/sec. in the direction of arrow.
1 Turn the power switch “ON” and select the pattern
No. 1. Press the needle up/down button twice.
2 Set the thread tension [3.4] by pressing “ADJUST” key.
2Lower the presser foot.

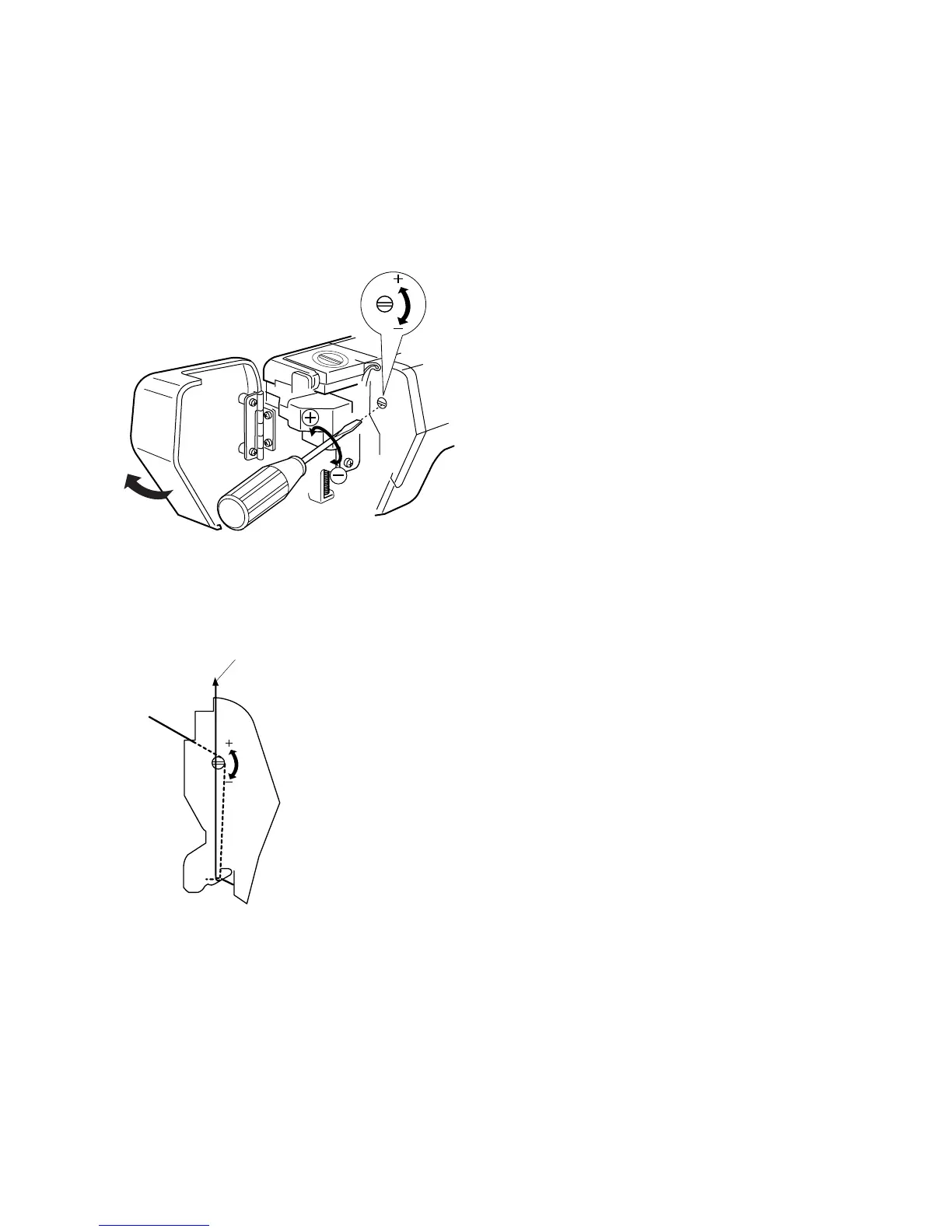

3 Open the face cover and adjust the thread tension.
(A) If the thread tension is less than 59 g,
.................turn the screw in the direction of “ – ”.
(B) If the thread tension is more than 67 g,
...............turn the screw in the direction of “ + ”
Pulling direction: (pulling speed 110 mm/sec.)
q
q
