ELNA 9500 - Setting Position of Thread Take up Lever

43
9500

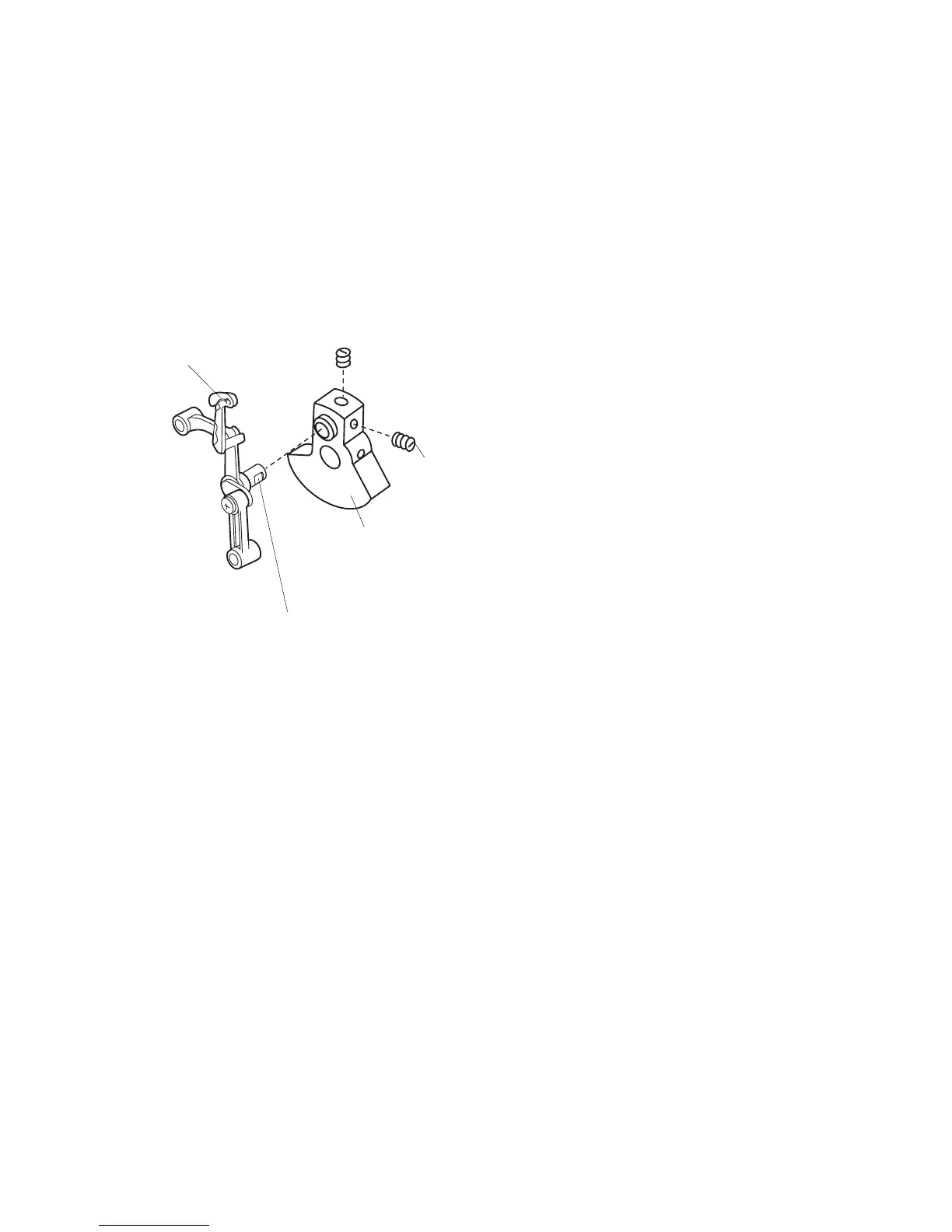

Setting Position of Thread Take Up lever
Setscrew (B)- long
Thread take
up lever (E)
Insert the needle bar crank into the take up crank (C)
so that the flat part of the needle bar crank (D) faces
the setscrew (B). Then tighten the setscrew (B).
Setscrew (A)- short
Take up crank (C)
Flat part of the needle
bar crank (D)
