Troubleshooting
15
When the carousel still doesn’t stop when passing the screw head, the connection to the board
is not given (plug, wire, and so on) or the sensor is defective and has to be replaced
CAUTION
Never unplug the sensors when the device is switched on, always turn the main switch to
position 0 (zero)
After replacing the sensor, please repeat the finding of home sensor position.
Pos: 5.10 /0025 Üb erschriften/E LTRA 1.1 Übersc hriften/11 C arousel can’t fi nd the right crucibl e position @ 1 4\mod_14538 01025712_9. docx @ 97176 @ 2 @ 1
3.4 Carousel can’t find the right crucible position
Pos: 5.11 /0010 E LTRA/0010 op erating_instructio ns/Thermoste p/15 Troublesh ooting/1525 Mo dul cannot fin d the right cruci ble position @ 1 4\mod_14 53800127176_9.d ocx @ 97152 @ @ 1
Open the lower side panel at the left side of the device. After disconnecting ground cable
remove the panel.

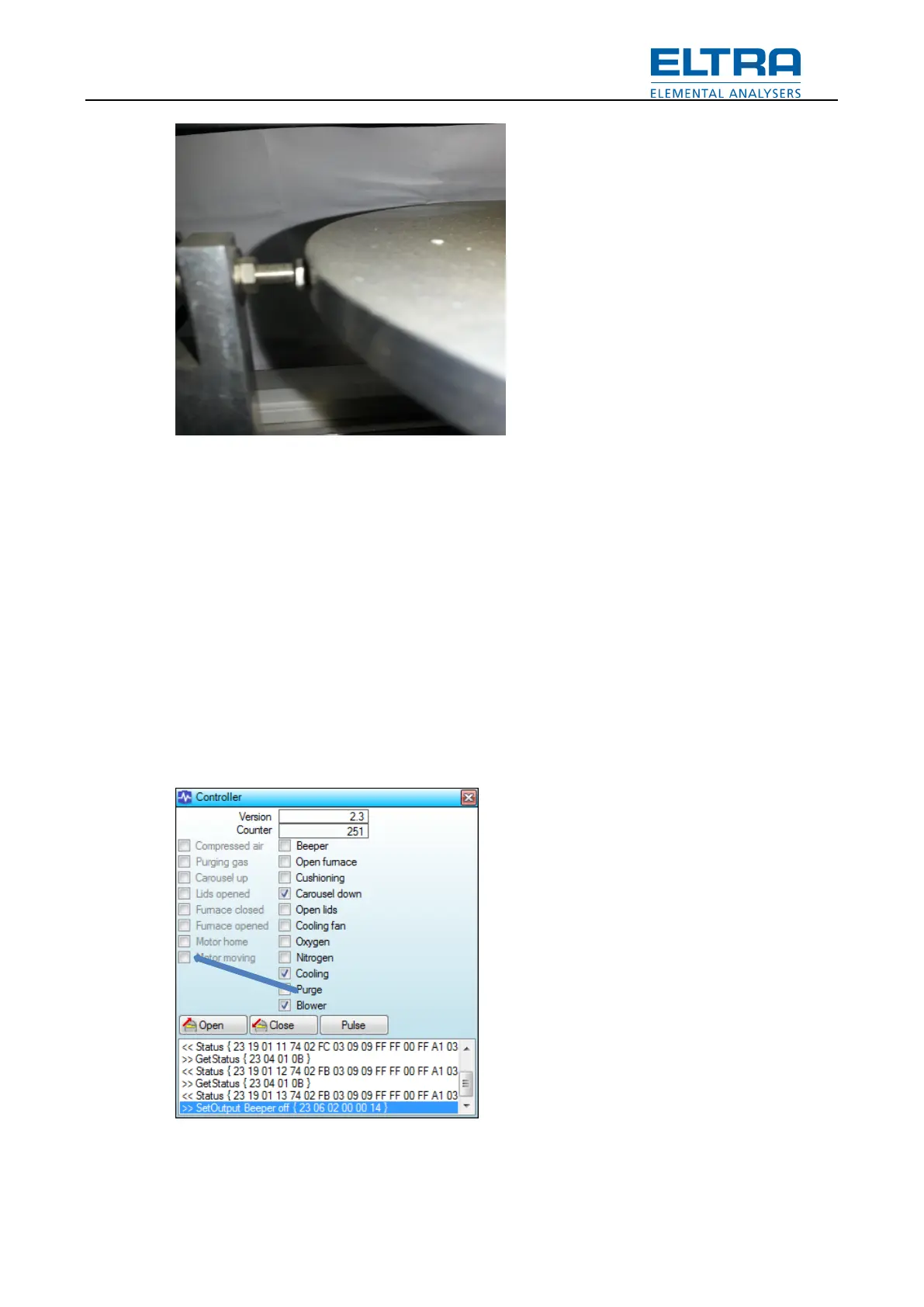

When the crucible position sensor doesn’t react by every tooth of the pinion, check the gap
between sensor and pinion, should be lower than 0,5mm
You can follow the reaction of the sensor in the controller window /tick at motor moving
When the carousel still doesn’t react by every tooth (after adjusting the sensor) check the
connection to the board (plug, wire, and so on) or the sensor is defective and has to be
replaced.
