1 Installation
Pos: 1.2 /0010 ELTRA/0010 opera ting_instructi ons/Thermost ep/05 Installati on/0505 Modul Ins tallation guide T hermostep @ 8 \mod_1391 772459716_9.d ocx @ 58890 @ @ 1
1. Remove all packages and place the Thermostep (in following TGA) on a stable, plane,
dry and clean place. Please don’t place the TS at strong air movements, to avoid
unstable conditions at weighing (Please consider the pre-installation guide)
2. Place the computer and the monitor within reach of TGA.
3. Connect the TGA and the computer with the provided cables. The cables on the right side
of TGA are connected to the balance and controller board.
The balance should be connected to a serial interface - COM1 to COM 20.
The USB cable from the controller should be connected to an USB port at the PC (Follow
the steps described below). The communication ports settings have to be adjusted in the
device manager at the PC, see chapter “Software help”.

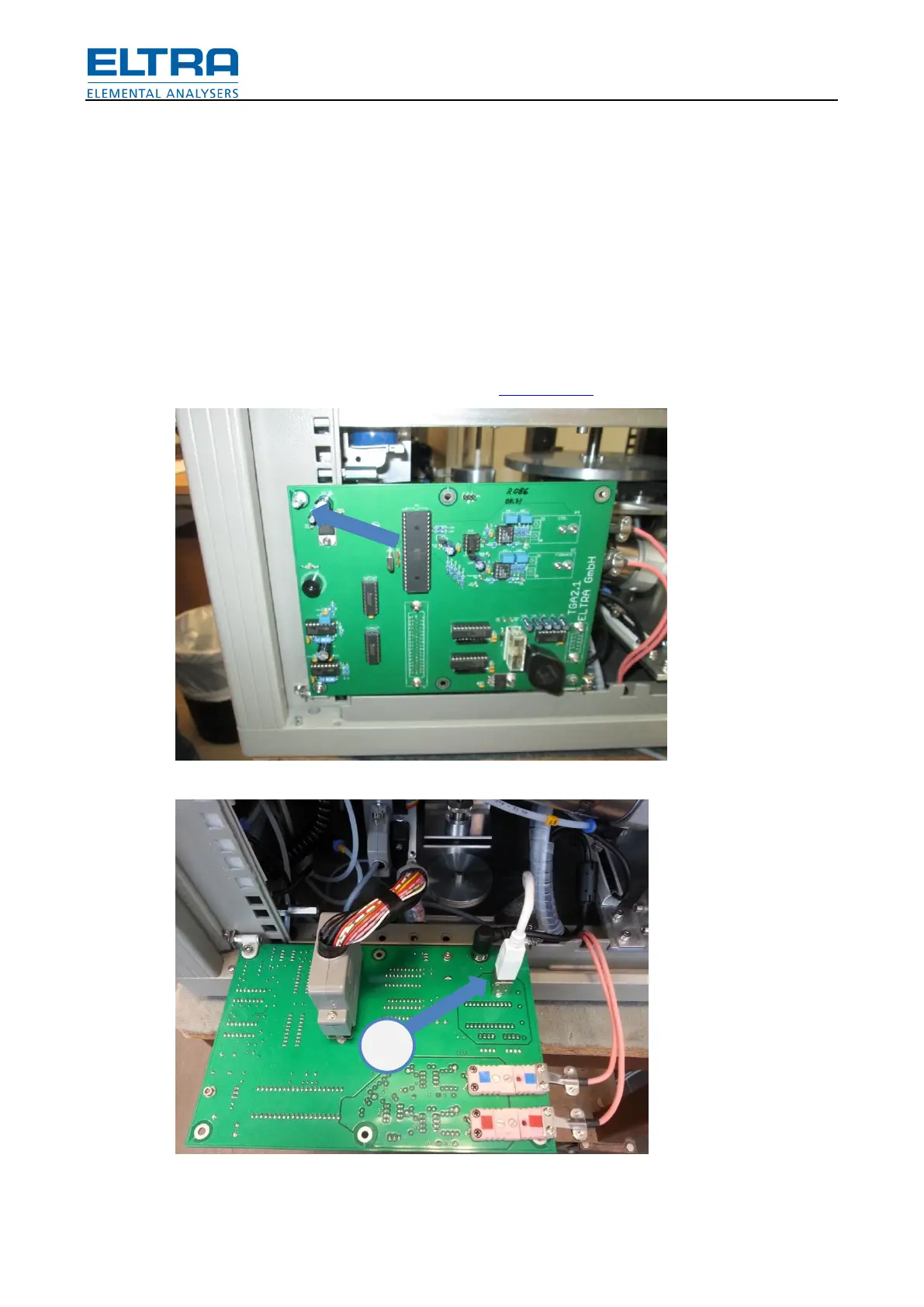

Fig.
1
: Loose the fixing screw and clap the controller board down
Fig.
2
: Connections at the backside A – USB Communication cable
A
