ELTRA Thermostep TGA User Manual

User interface
36
Manual mode will disable heater PID regulation and security (overheating protection and
furnace status monitoring). A special warning will be given when entering this mode.
Graph maximum time can be set with Heater graph Configuration setting.
Info
Various information of temperature regulation is displayed.
Setpoint
Current setpoint, °C
Power
Current power
Speed
Current speed of heating, °C/min
Slope
Actual slope (speed of heating), °C/min
Tref
Thermo-reference temperature, °C
F tc
Furnace thermocouple temperature, °C
C tc
Coil thermocouple temperature, °C
Mode
Heating/regulating
P
PID P value
I
PID I value
D
PID D value
Mouse-over some of values will display additional info: voltages, instant (non-averaged) value,
slope, current PID parameters, etc.
Pos: 9.3.7.19 /00 25 Überschrift en/ELTRA 1.1.1 . Überschriften/1 11 Windo w: Motor @ 7\mo d_138538381536 5_9.docx @ 52799 @ 3 @ 1

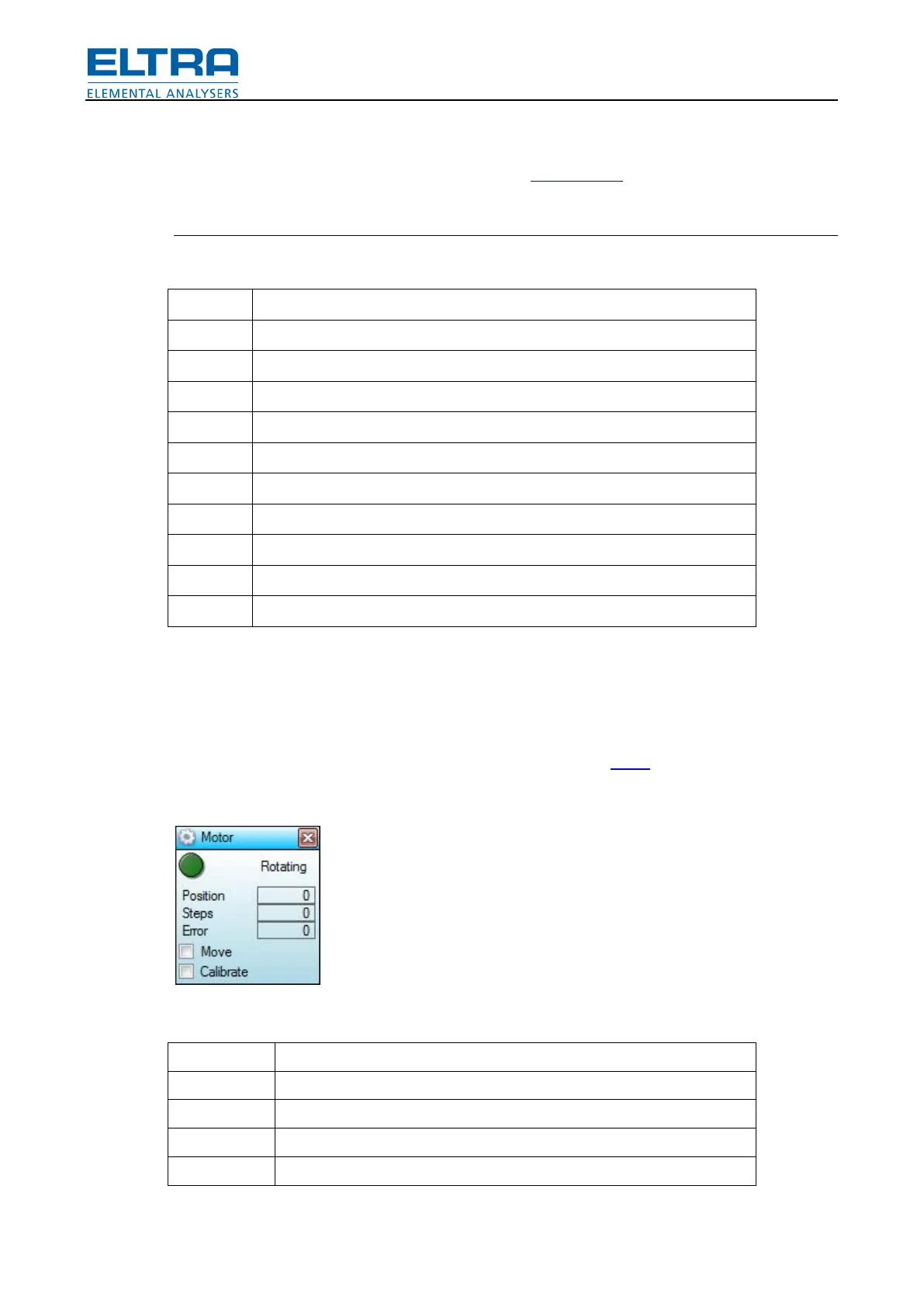

6.2.10 Motor window
Pos: 9.3.7.20 /00 10 ELTRA/00 05 software_hel p/Tga/User interf ace/Child wi ndows/Window: Mot or @ 7\mod _1385383775 156_9.docx @ 5 2788 @ @ 1
This window is used to see the status and manually control the Motor, rotating carousel with
crucibles.
Fig.
29
: Motor window
Rotating
Blinks when motor is rotating carousel
Position
Crucible position [0-20], 0 – unknown, 20 – reference
Steps
Motor steps
Error
Extra steps after full turn
Move
Show/hide motor move controls
