6.2.7 Flow window
Pos: 9.3.7.14 /00 10 ELTRA/00 05 software_hel p/Tga/User interf ace/Child wi ndows/Window: Fl ow @ 7\mod_ 13842547580 78_9.docx @ 5 2281 @ @ 1

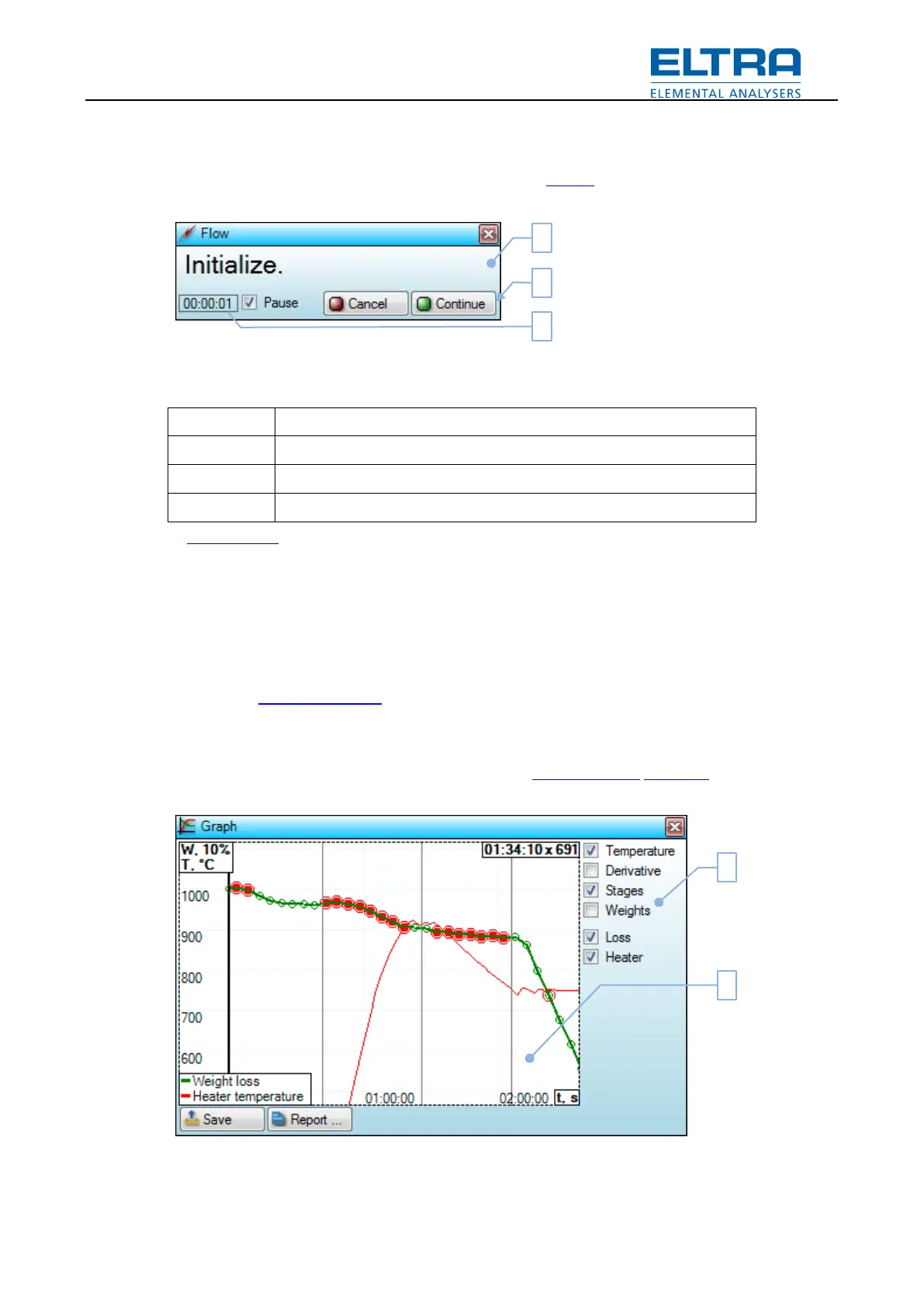

This window will display program flow during different Stages.
Fig.
: Flow window
Pause automatic program flow when checked
*)
Administrator only.
Blinking red information text means error.
Buttons will appears whenever a user input is required or allowed, at certain moments during
automatic program flow.
It’s important to pause the flow before attempting manual control of the instrument, otherwise
manual and automatic control may conflict with each other. To example: opening furnace
manually in Controller window, while flow is at step trying to close it.
