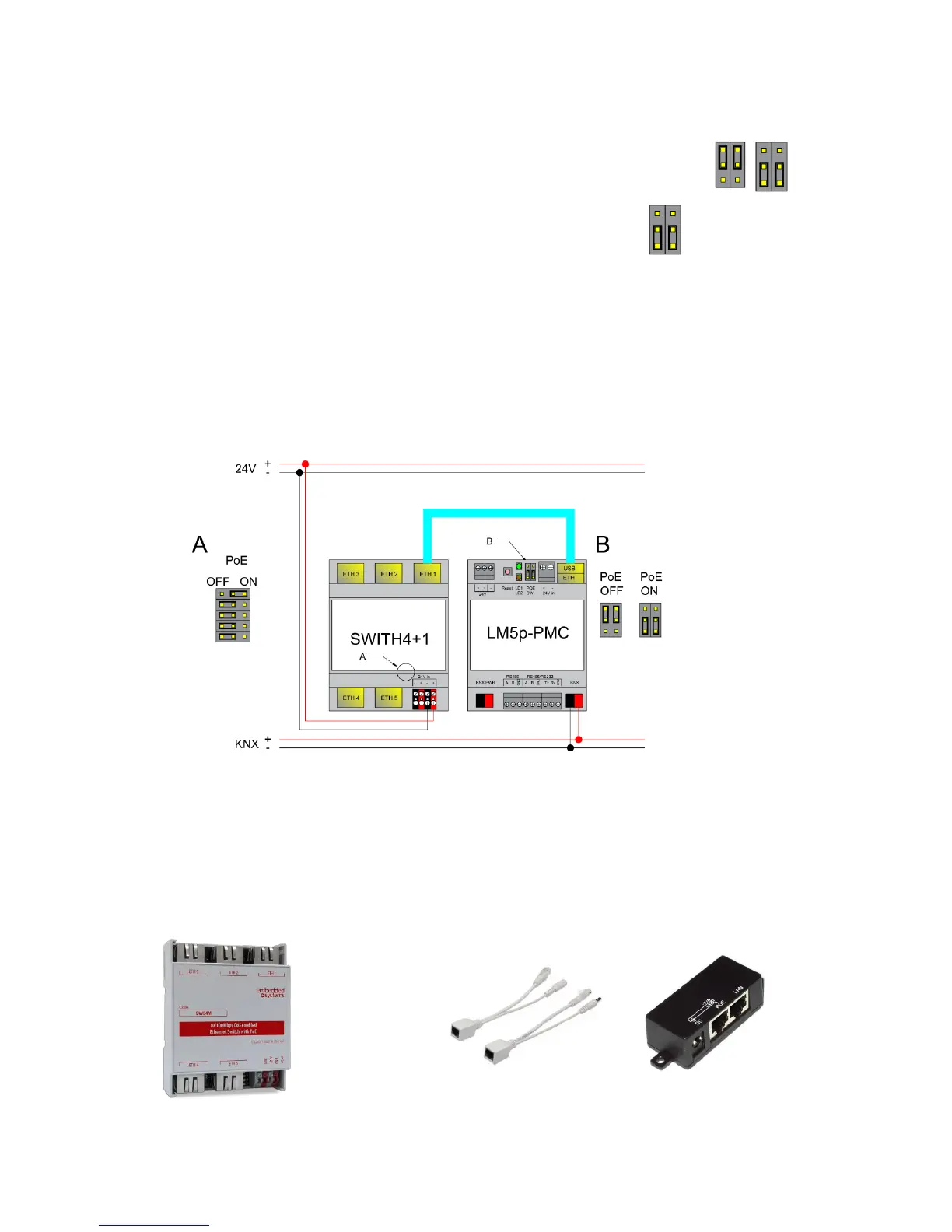

PoE powering of LM5
LM5 supports two powering modes:
- regular powering over screw terminals (Jumpers up or down)
- passive PoE powering over 24V DC (Jumpers down)
Please note that there are two PoE types of PoE switches/adapters  passive and active
(802.3af). In passive mode 4 Ethernet cable wires are used for data and 4 are used for power. In
active PoE mode data and power goes together.
Passive PoE switch Passive PoE adapters
