Partial scan, only add new devices - scans for newly added DALI devices to the selected
gateway without assigning short addresses. Missing devices are not removed from the list
Port settings serial port name if there are external DALI-RS-485 interfaces connected
Note! Make sure Modbus RTU is not enabled for the same RS-485 if you are using external DALI
-485 port.
Note! Make sure you have series connection for all DALI gateways.
Note! In case you have long RS-485 lines between LM and DALI gateway, make sure to use 120
Ohm termination resistors on LM and on the farthest DALI gateway.
Note! Make sure GND are connected (if you use separate power supplies for LM and DALI gw)
Make sure you define Port name in Port settings when using RS485 DALI gateway. If you use
---
Then write for each external RS-485/DALI gateway its unique ID. This is done by pressing
programming button on RS485/DALI gateway and pushing Write ID on LM.
Then you should press Scan gateways button on LM. Your programmed gateway should
appear.
For each DALI device, you can set a custom name and map to binary on/off and scale object.
This allows communication with DALI devices from KNX bus and visualization without any
additional scripts.
14.1. DALI object mapping

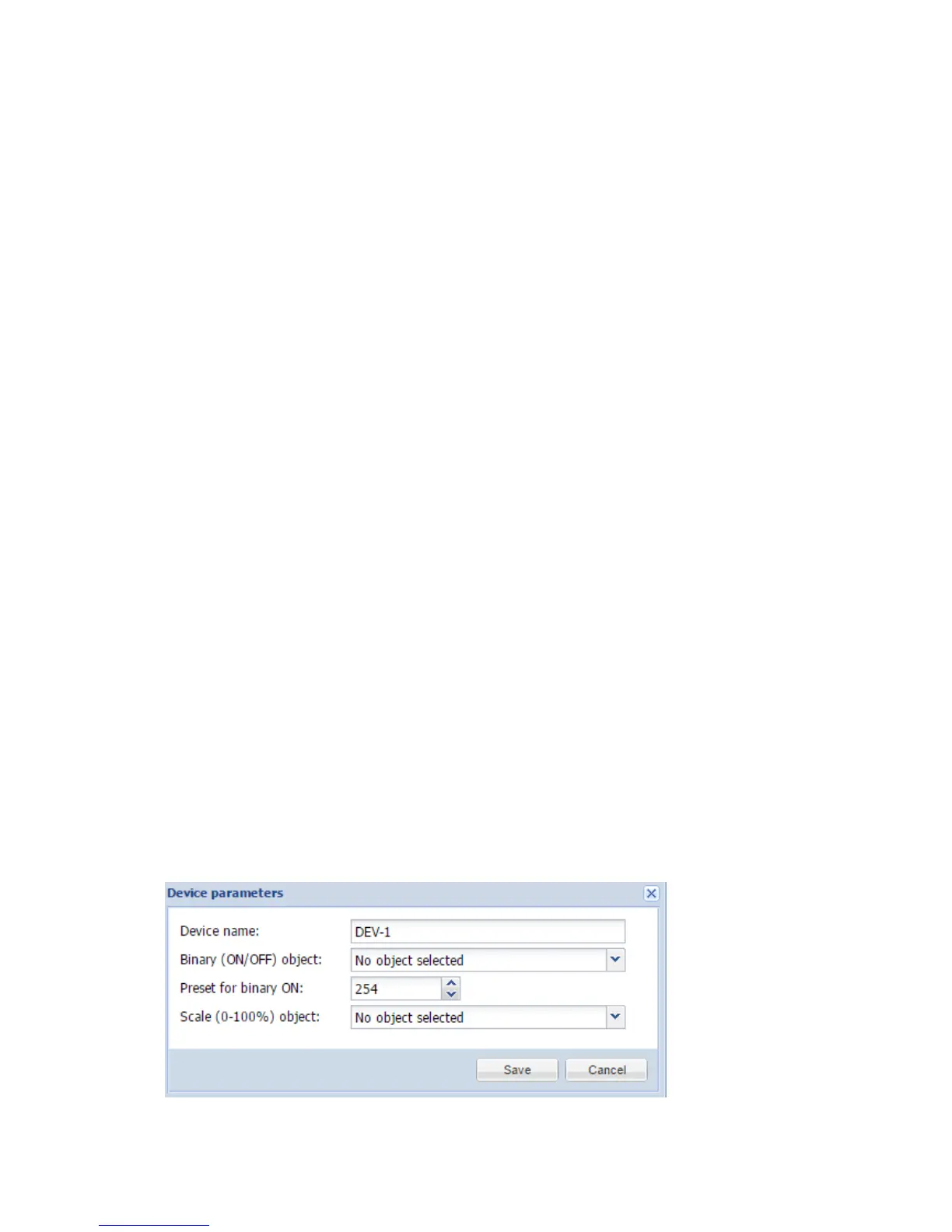

Once DALI objects are scanned, you can click on corresponding object and perform the
configuration.
