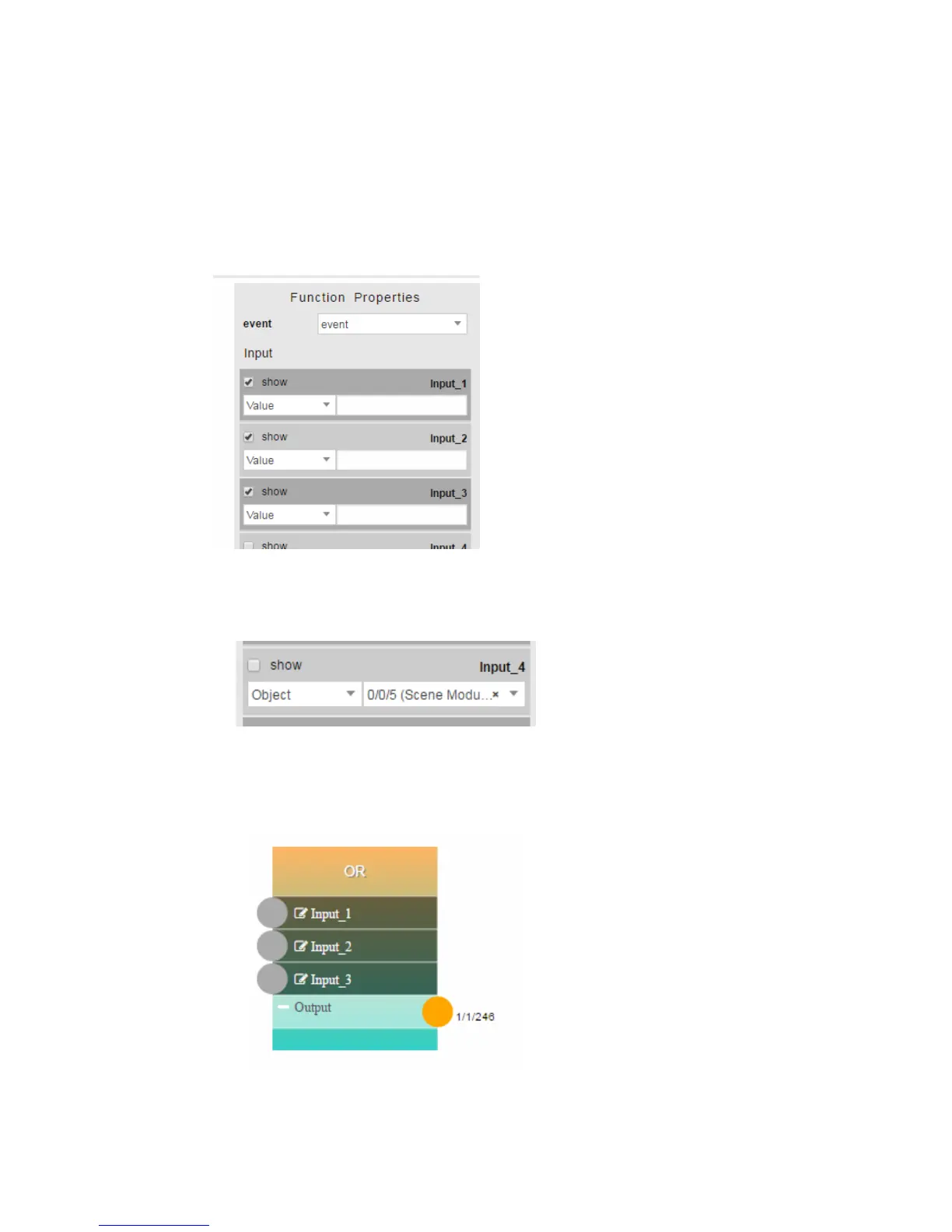

27.7. Add event function block
Event block represent new IEC61499 standard.
 Select required block and set event to EVENT
 Event block must use Event element to trigger at last one of the inputs. Select show for
each input which should trigger the logic when its value will change.
 Do not select object from function properties if it must be used as triggerable event. If
object will be selected from Function Properties, it will act as simple static parameter.
 Set rest of parameter of the Function Properties and press Apply. Block will change its
appearance and will show exposed inputs.
