Embedded Systems LogiMachine5 Power - Page 249

249

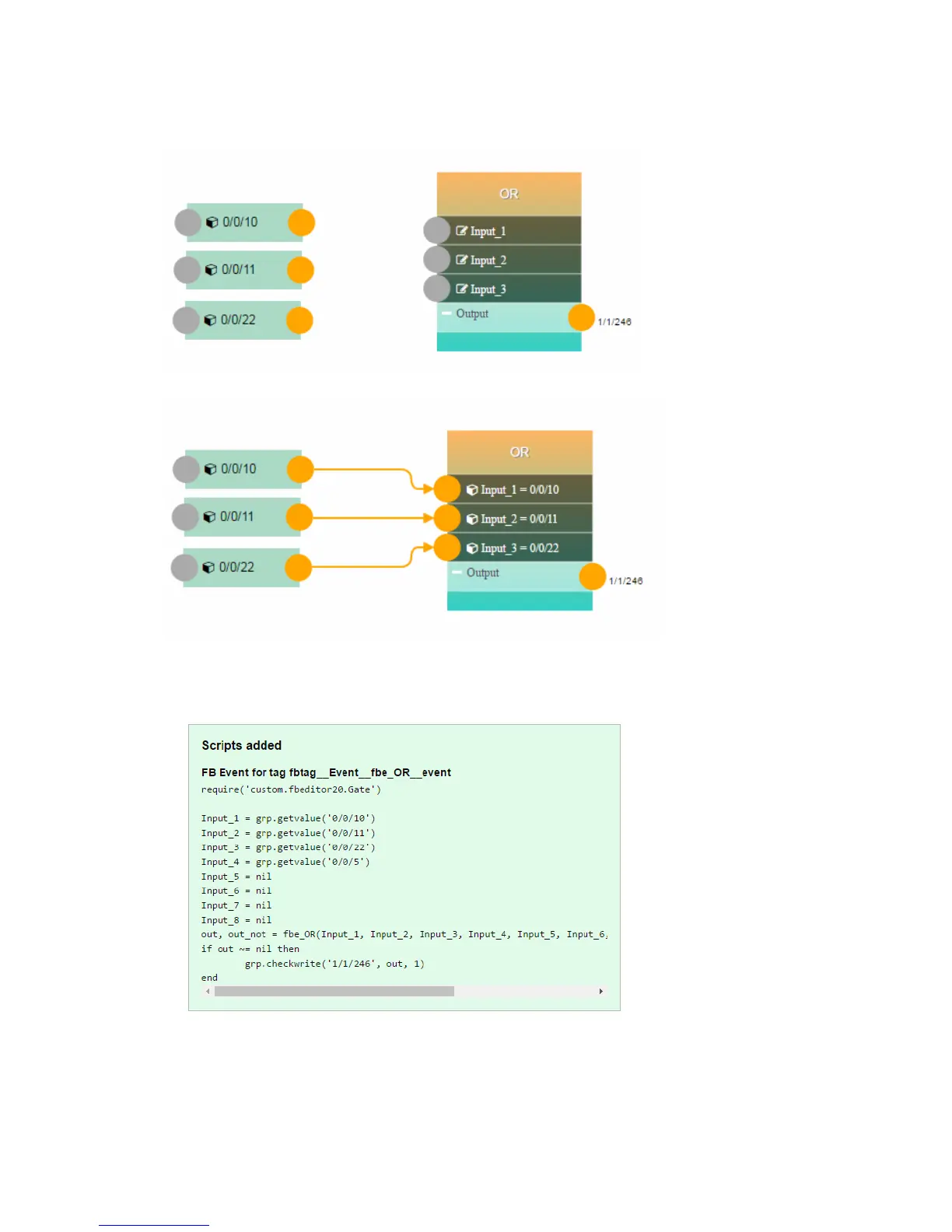

 Select Address from Event Elements and select its object. Elements can be duplicated
for quicker multiplication
 Link Address to desired input. Orange lines represent event signals
 Press show and generate to save and generate the logic. Created script will be
displayed. Generated script will be triggered by TAG which was automatically added to
all Event elements.
