127

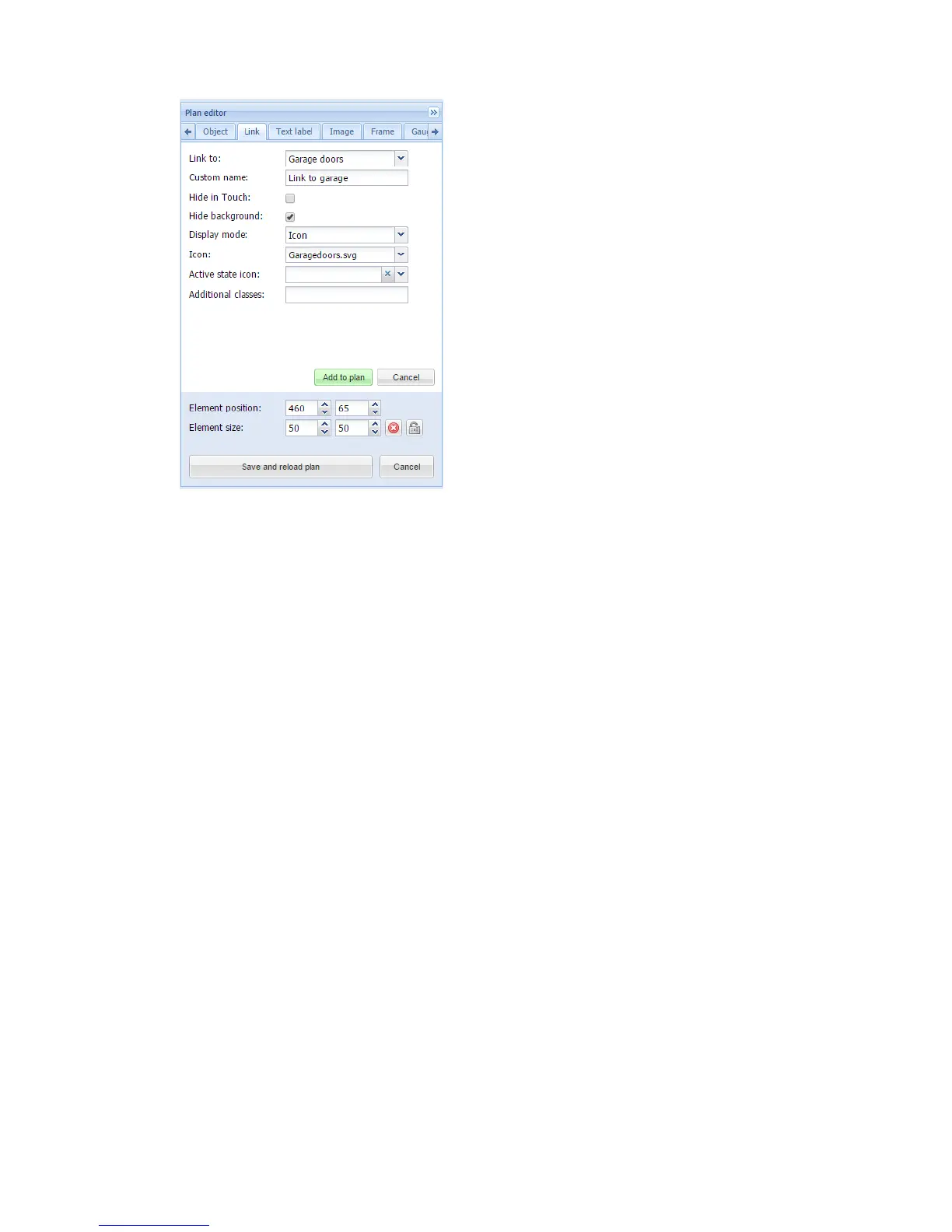

Link to Linked plan name or link to Schedulers / Trends or External Link (use the
link in form http://www.openrb.com)
Custom name name for the link
Hide in touch do not show this object in Touch Visualization
Hide background Hide icon background
Display mode [Icon; Value] either to show icon or its value
Icon Icon which will be showed in visualization (if chosen, no further parameters
are available)
Active state icon active state icon if the link is to current plan (in case you have
several smaller plans on one visualization and want to display the current one)
Additional classes additional CSS classes for the element
Once the floor link parameters are defined, press Add to plan button and newly created object
will appear. You can move the object to the location it will be located. Note that while being in
editing mode, the object will not work. Press on Save and reload plan button so the objects
starts functioning.
6.8.4. Text Label
Text labels can be added and moved across the visualization map.
