Embedded Systems LogiMachine5 Power - RS-232 Connection

254 pages

To Next Page

To Previous Page

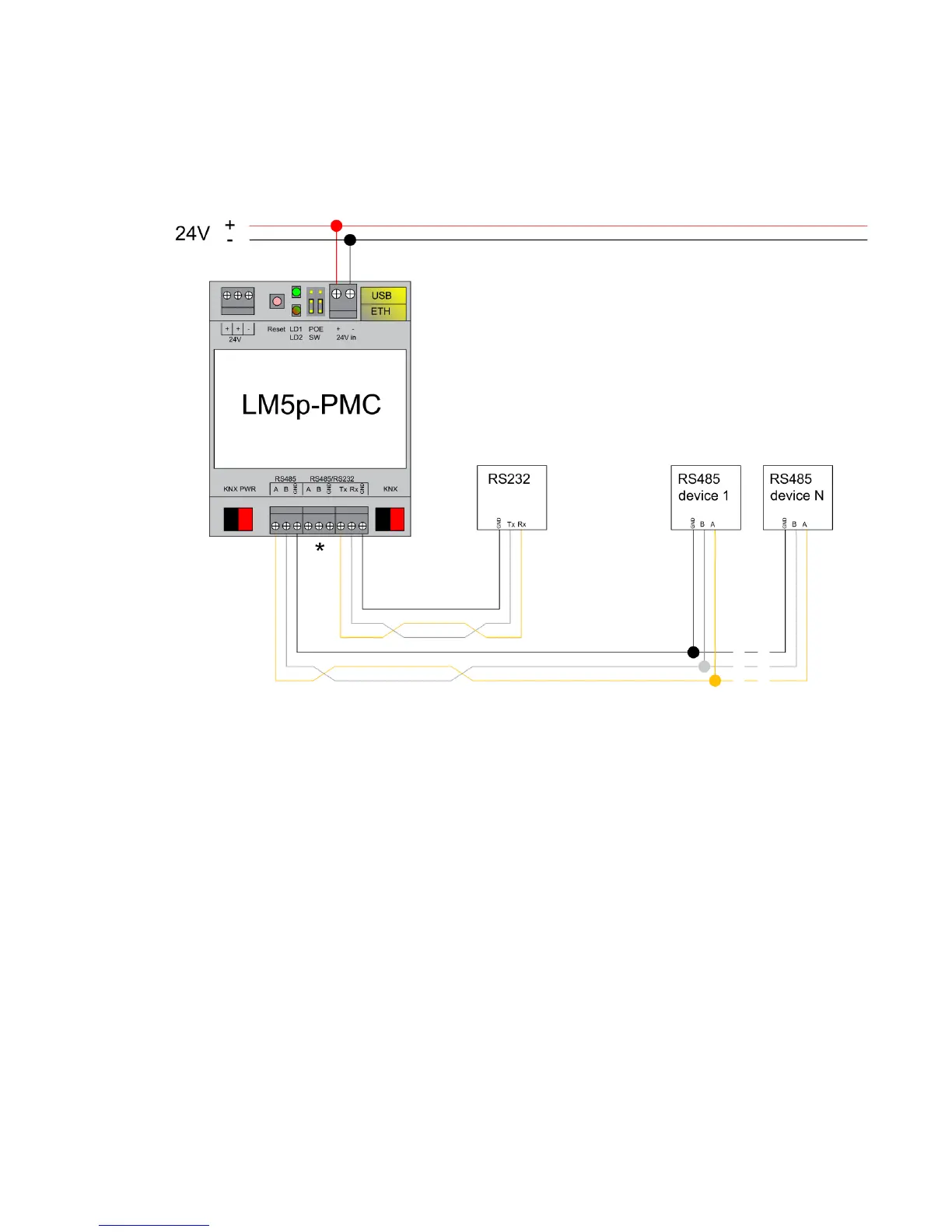

RS-232 connection

If second serial port is set as full-duplex in LogicMachine configuration, it will operate as RS-232

and respective TX/RX/GND screw terminals should be used.

*RS-232 is chosen in this case, RS-485 is not activated
