SIP client application

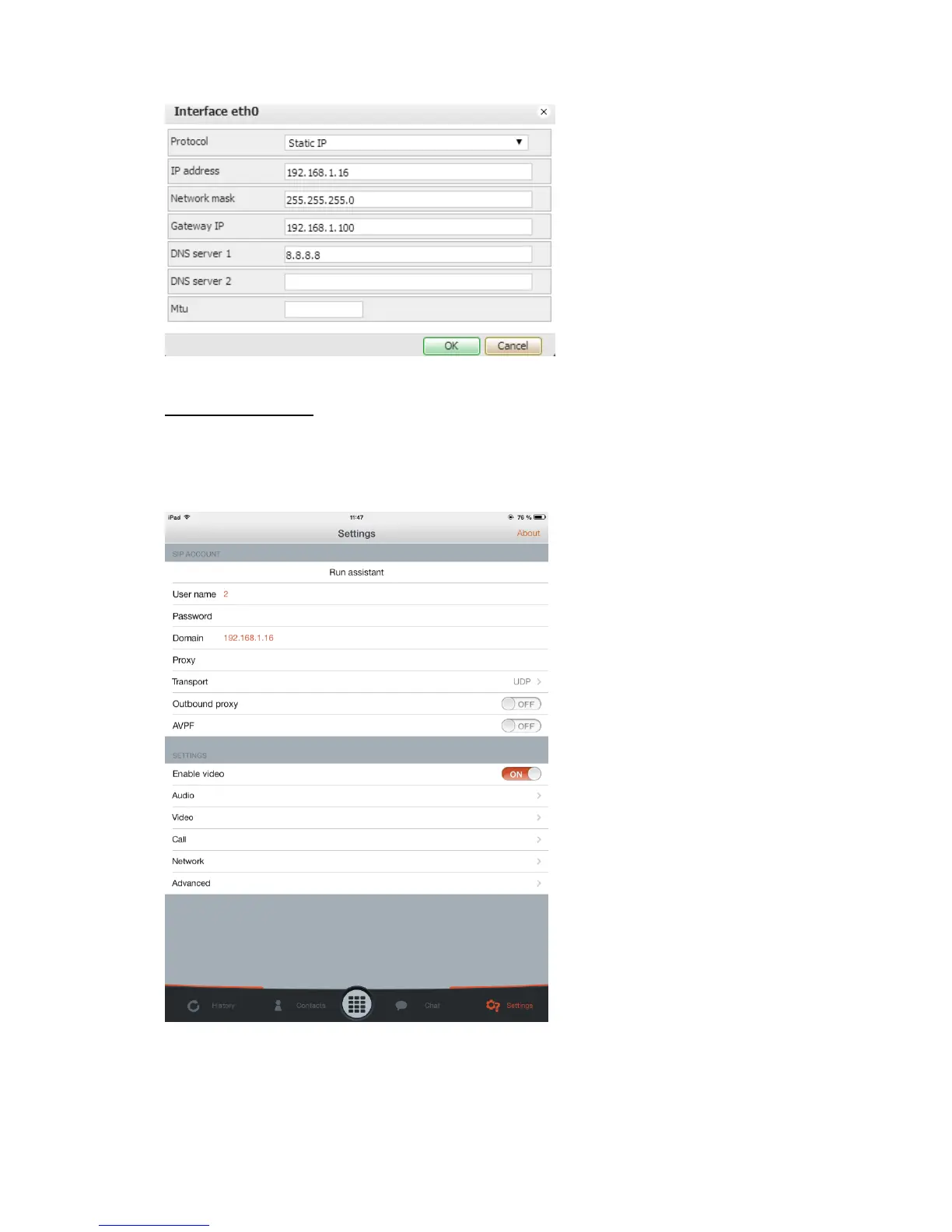

You can use for example Linphone as your SIP client. You have to enter IP of LogicMachine in its

settings.
