Chapter 4 Operation 27
5) When modify operating frequency (here means MS frequency 0) in
operating status, press PRG key to enter programming state; press ▲ key
or SHIFT key to shift to F055; press FUNC/DATA key to enter the settings of
parameter; press XX key to move to the digit you want to modify; press ▲
or ▼ key to set the desired value; Then press FUNC/DATA key to save and
auto-display F056
6) In FWD running status, press RUN key and ▼ key together, the drive will
run reversely; In REV running status, press RUN key and ▲ key together,
the drive will run forward.
7) Press STOP key, the drive will stop (decelerate to stop)
8) Power-off
2. Frequencies can be set and modified via the keypad and operating control
through control terminals
TD3200
OD
COM
.
.
CD
.
k1
k2

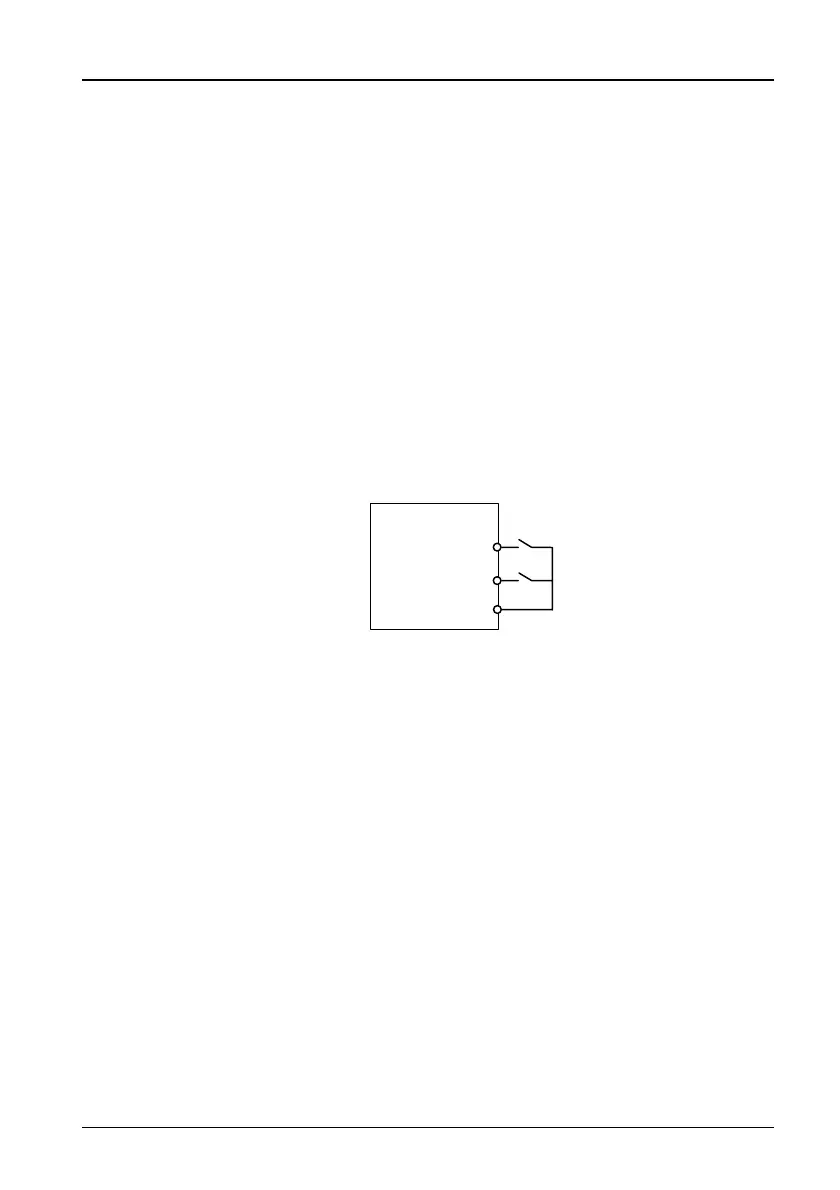

Figure 4-3 Wiring
Connect power cables according to Figure 4-3, and switch on after confirming
the connection.
1) Press PRG key to enter programming state
2) Set main parameters (other Func.Codes can use the manufacturer's
settings)
F055=5.00, MS frequency 0
F001=0, speed control 1 (sensorless vector control)
F002=4, in general terminal control mode, the operating command is given
via the control terminal. OD controls FWD running and CD controls REV
running
3) Press PRG to return to stopping status
4) Switch on K1, the drive runs forward
5) During operation, the operating frequency can be modified. See part one of
this section.
