28 Chapter 4 Operation
6) Switch off K1 and switch on K2, the drive runs REV
7) Switch off K1, K2, the drive stops (Decelerate to stop)
8) Power-off
3. Multi-speed operating can be controlled via control terminals
TD3200
COM
.
.
.
k
1
k
2
OD
CD
X4
COM
.
.
X5
.
k
4
k
5
.
X3
k
3

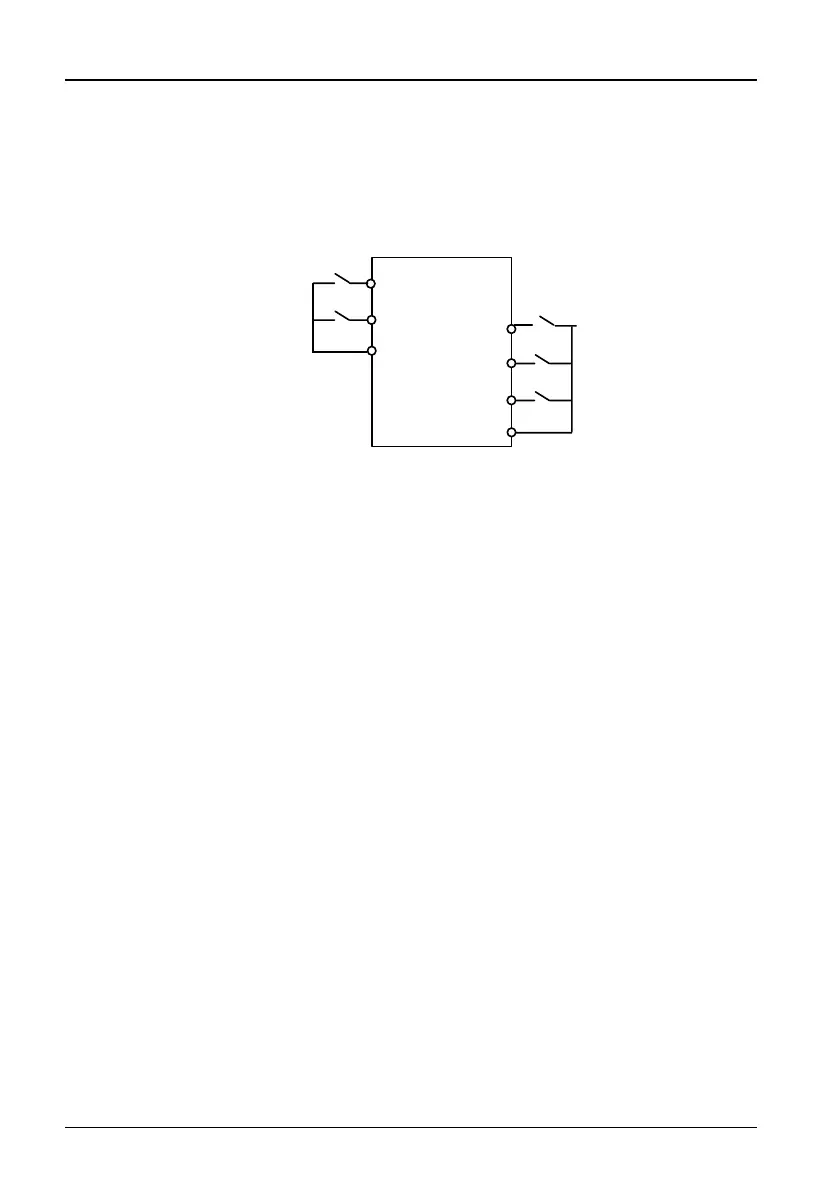

Figure 4-4 Connection of multi-speed operation
Connect power cables according to Figure 4-4, and switch on after confirming
the connection.
1) Press PRG key to enter programming state
2) Set main parameters (other parameters can use the defaults)
F001=1, speed control 2 (sensorless vector control)
F002=4, in general terminal control mode, the operating command is given
via the control terminal. OD controls FWD running and CD controls REV
running.
F099=16, MS (multi-speed) terminal 1
F100=17, MS (multi-speed) terminal 2
F101=18, MS (multi-speed) terminal 3
3) Press PRG key to return to stopping status
4) Switch on K1 (K2), the drive runs FWD (REV)
5) Corresponding MS frequency can be selected according to the following
table via the combinations of switch ON/OFF of K3, K4, K5.
