Error/Event Messages
The following are error messages that are displayed when specific faults/events occur during operation:

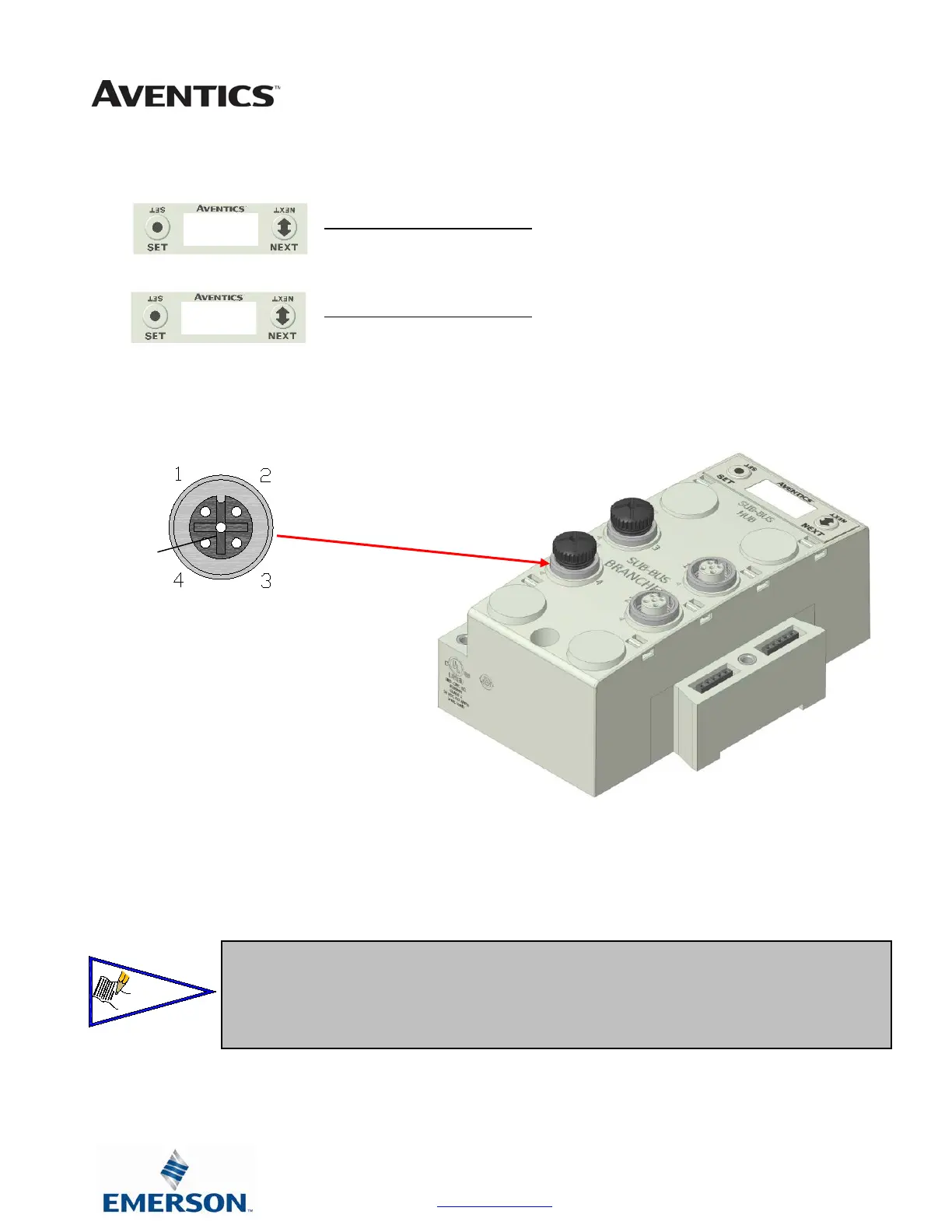

Connector Pin Out
PIN 1 = Shield
PIN 2 = V+
PIN 3 = V-
PIN 4 = CAN_H
Displayed when a Sub-Bus module that had been
previously installed becomes absent from the
configuration
Displayed when a Sub-Bus power short circuit
condition is detected
NUMBER XX
SHORT CIRCUIT
• Length of molded or field wired Sub-Bus Branch cables should not exceed the maximum
length of 30 meters per Sub-Bus Branch communication link.
• The molded cable assemblies and bulk cable are the only approved cables for the G3 Sub-Bus
and Branch Link. Please refer to the G3 Electronics catalog, for Sub-Bus cable and connectors
options. See Technical Document TDG3SBWD1-0EN for proper installation and wiring of field
wire-able connectors.
