Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
5-39
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

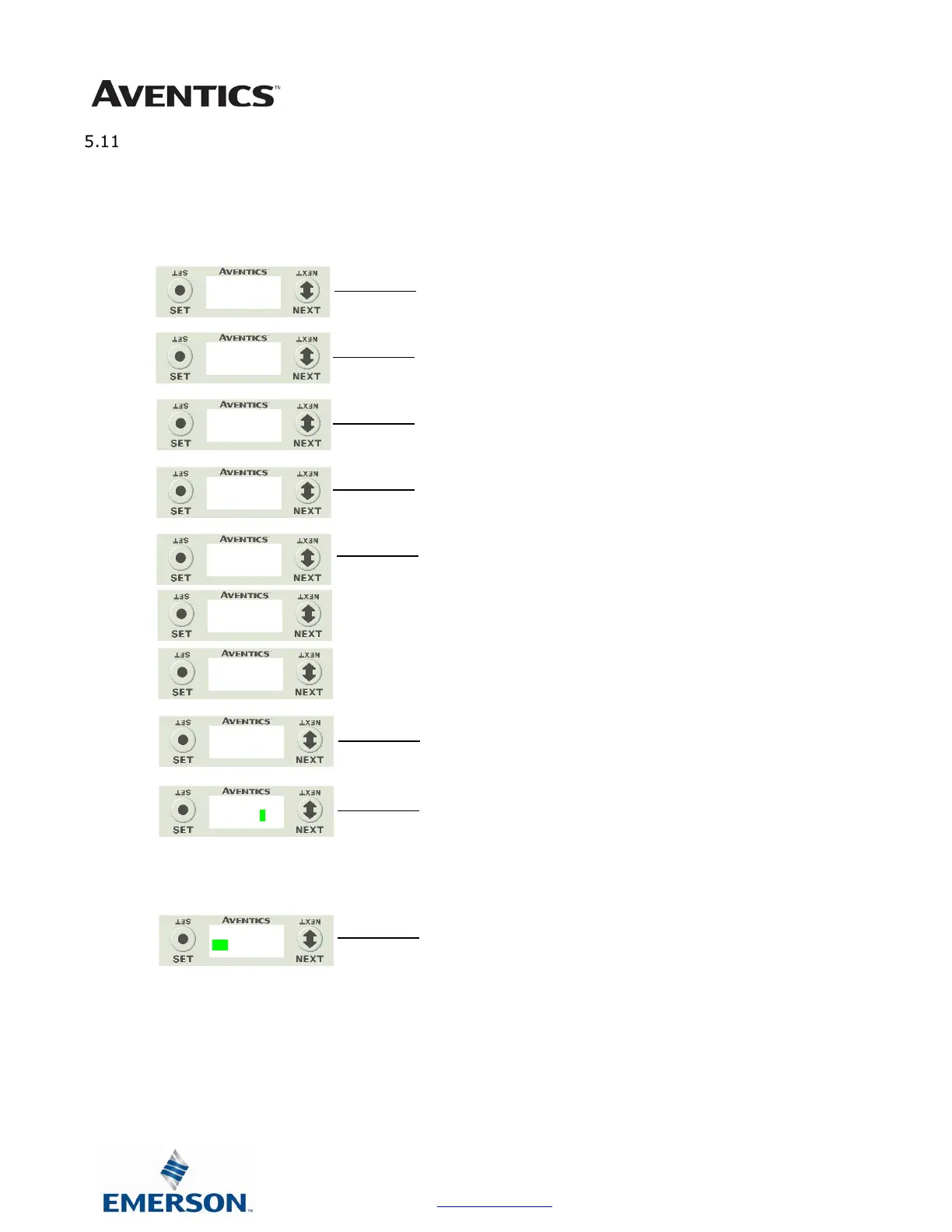

Advanced Settings - I/O Diag. Menu
This will allow the enabling / disabling of the IO Status bits. The IO status bits include valve coil, discrete
output, input short circuit and alarm status bits. The default condition is enabled.
I/O Status Steps
1. Press the SET button to enter the ADVANCED SETTINGS sub-menu.
2. Press the SET button to enter the ADVANCED MENU / SET STATUS.
3. Press the SET button to enter the SET STATUS / I-O STATUS.
4. The current state of the parameter is shown.
5. Press the SET button to change this parameter
Use the NEXT button to scroll through the choices to enable/disable
the Diagnostic status for I/O.
a. ENABLED (Factory Default)
b. DISABLED
c. RETURN (this will return you to the SET STATUS menu)
Press the SET button to confirm your choice.
6. Press NEXT to confirm the warning message.
7. Press the NEXT button to select Yes or No to accept the selection
a. Selecting No will bring you back to the main SET STATUS
menu.
b. Selecting Yes will take you to the following saved settings
menu.
Press the SET button to confirm your choice.
Save Settings Steps
8. Press the NEXT button to select either NOW or LATER.
a. Selecting NOW will cause the node to reset and apply the
new setting.
b. Selecting LATER will cause the new I/O STATUS selection to
be saved in memory, you must Accept the saved changes
before your next power cycle otherwise they will be lost.
Press the SET button to confirm your choice.
ADVANCED
SETTINGS
ADVANCED MENU
SET STATUS
SET STATUS
I/O STATUS
I/O STATUS.
ENABLED
I/O STATUS
DISABLED
I/O STATUS
RETURN
INPUT MAPPING
WILL SHIFT
ACCEPT
DISABLED Y N
SAVE SETTINGS
NOW LATER
I/O STATUS
ENABLED
