Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
7-53
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3
Distribution
Distribution of I/O capability can be easily achieved with the G3 platform by means of Sub-Bus modules. I/O modules,
valve manifolds and/or a combination of both can be simply separated from the main manifold and distributed via a
sub-bus communication cable. The G3 platform uses the same I/O modules on the main manifold as on the
distribution chain. The main communication module can control up to 16 I/O modules either on the main manifold or
as part of the sub-bus connections. To utilize the sub-bus distribution capabilities the Sub-Bus OUT module must be
located on the end of the main communication manifold and a Terminator Module must be located at the last sub-bus
component.

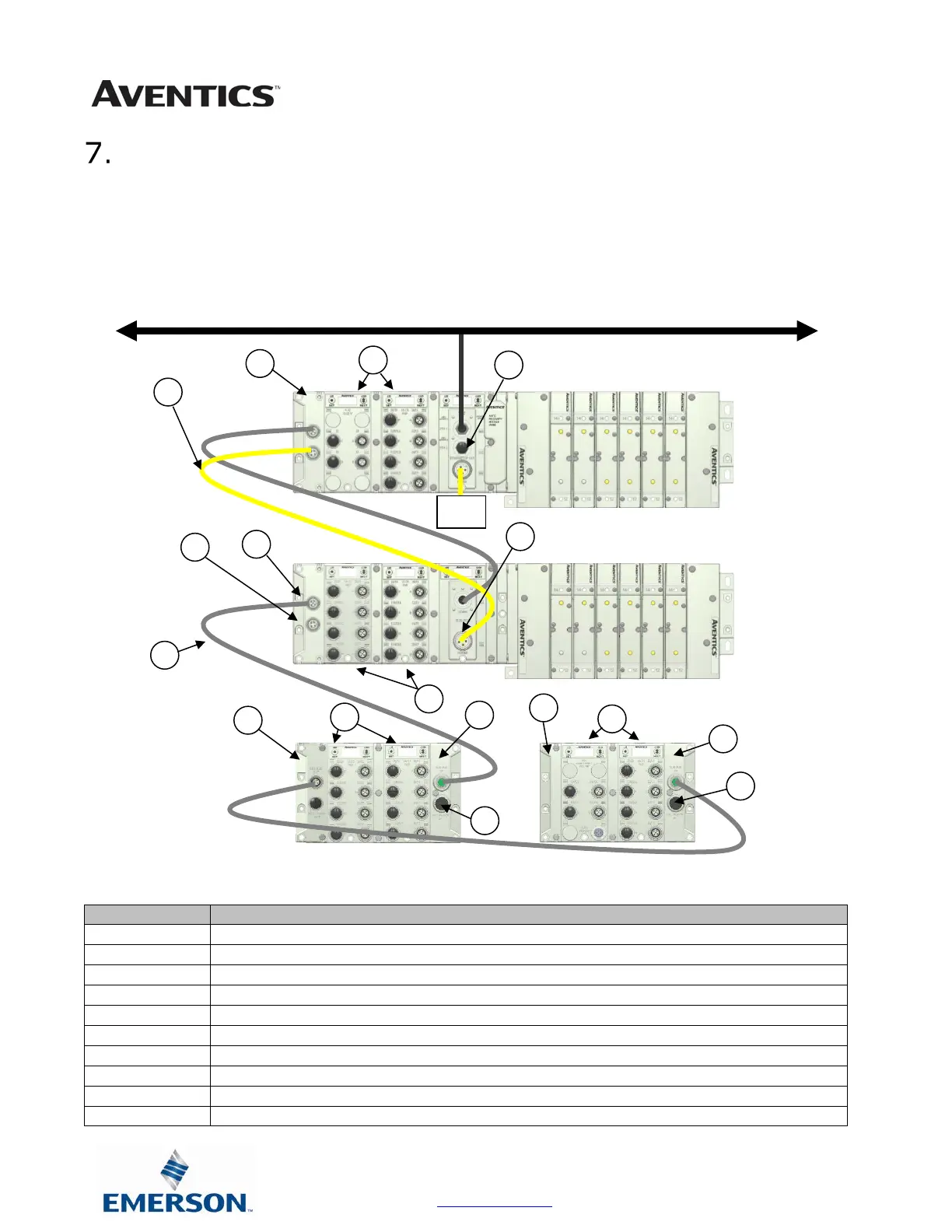

Example 1
Detail No.
Description
1
Main Communication Module (Node)
2
Sub-Bus Power Cable (Can be connected to separate power supply for isolated power control)
3
Distributed Sub-Bus Valve Module
4
Sub-Bus IN module
5
Sub-Bus OUT module
6
Sub-Bus Communication Cable
7
I/O Modules
8
Terminator Module (Used to terminate sub-bus)
9
Aux. Power IN (Used to augment Input power and/or supply power to Output modules)
10
Aux. Power OUT (Can be used to supply power to distributed modules)
Fieldbus network
4
5
3
6
8
Distributed
Sub-Bus I/O
Modules
1
2
Main Fieldbus
Valve Manifold
with I/O
Distributed Sub-
Bus Valve
Manifold
with I/O
Power
Supply
7
7
5
5
4
7
7
10
9
9
