Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
14-163
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3
Create Aventics G3 EtherCAT
TM
configuration (Omron PLC)
The following example illustrates the necessary steps to add an Aventics G3 EtherCAT
TM
Manifold to an existing Omron PLC
configuration. This includes how to install the Aventics EtherCAT
TM
XML file and how to select the various software components
to configure a G3 Manifold (XML files are available at www.asco.com
/g3). The following examples assume an existing
configuration based on Omron Sysmac Studio (V 1.13).
Install the Aventics G3 XML file

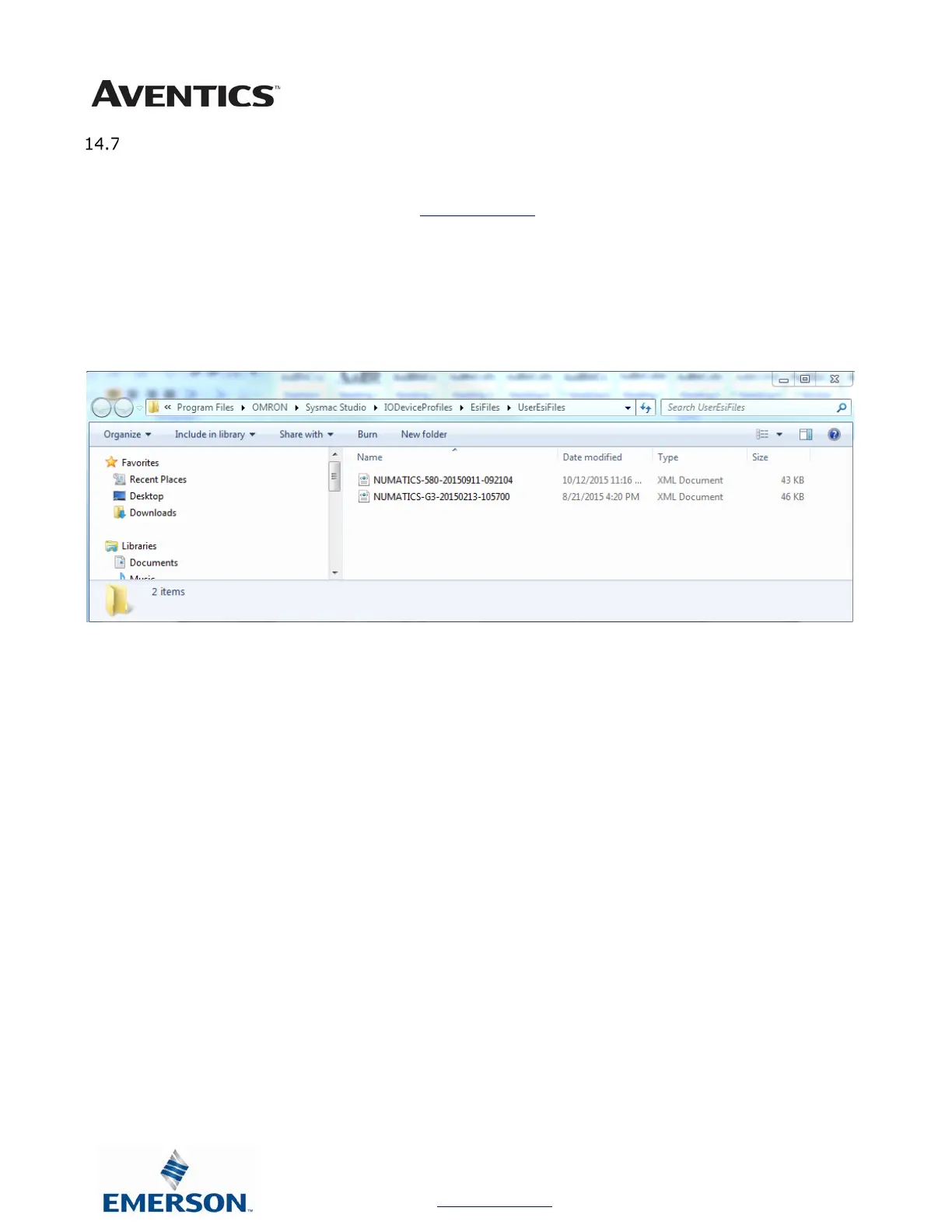

Copy the current Aventics XML file into the following Sysmac Studio directory.
Program Files\Omron\Sysmac Studio\IODeviceProfiles\EsiFiles\UserEsiFiles
Launch Sysmac Studio
