Emerson Aventics G3 Series - Valve Side Output Module Function

G3 Series EtherCAT
TM
Technical Manual
9-84
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

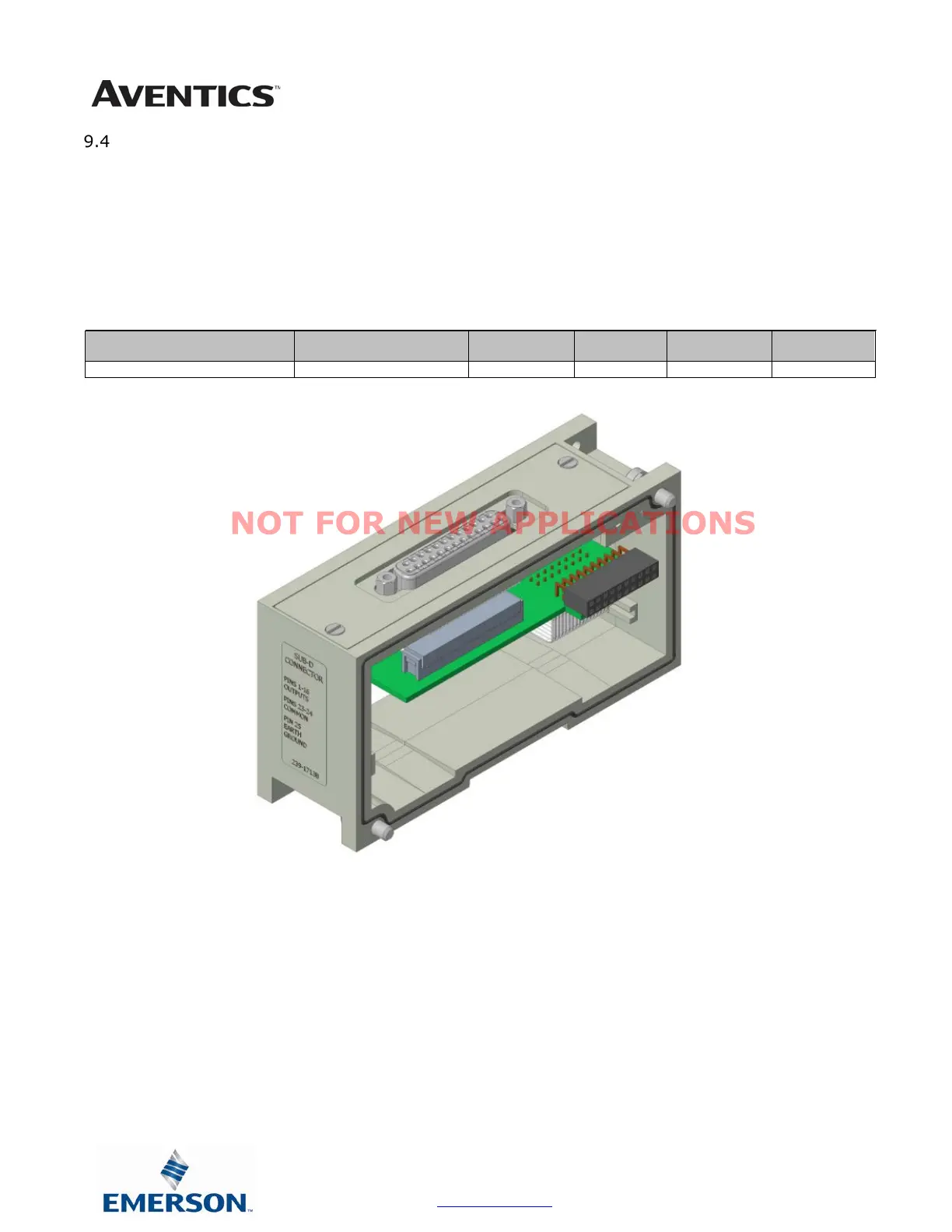

Valve Side Output Module
The valve side output module is used to distribute available valve side output points (i.e. when valves are located
away from the rest of the electronics). These modules go to the right of the G3 valve adapter. The 16 bit output
module utilizes the last 16 output bits on the valve side of the manifold (bits 16-31).
This module is not available with the 501, 502 or 503 series valves.
Sixteen Outputs per Connector - Sub-D 25 Pin Female Module
Module
Part No.
I/O Type
Short Circuit
Protection
Internal
Status Bits
Output Points Module Size
239-1713
NPN (Sinking)
Yes
16 – Optional
16
Narrow
