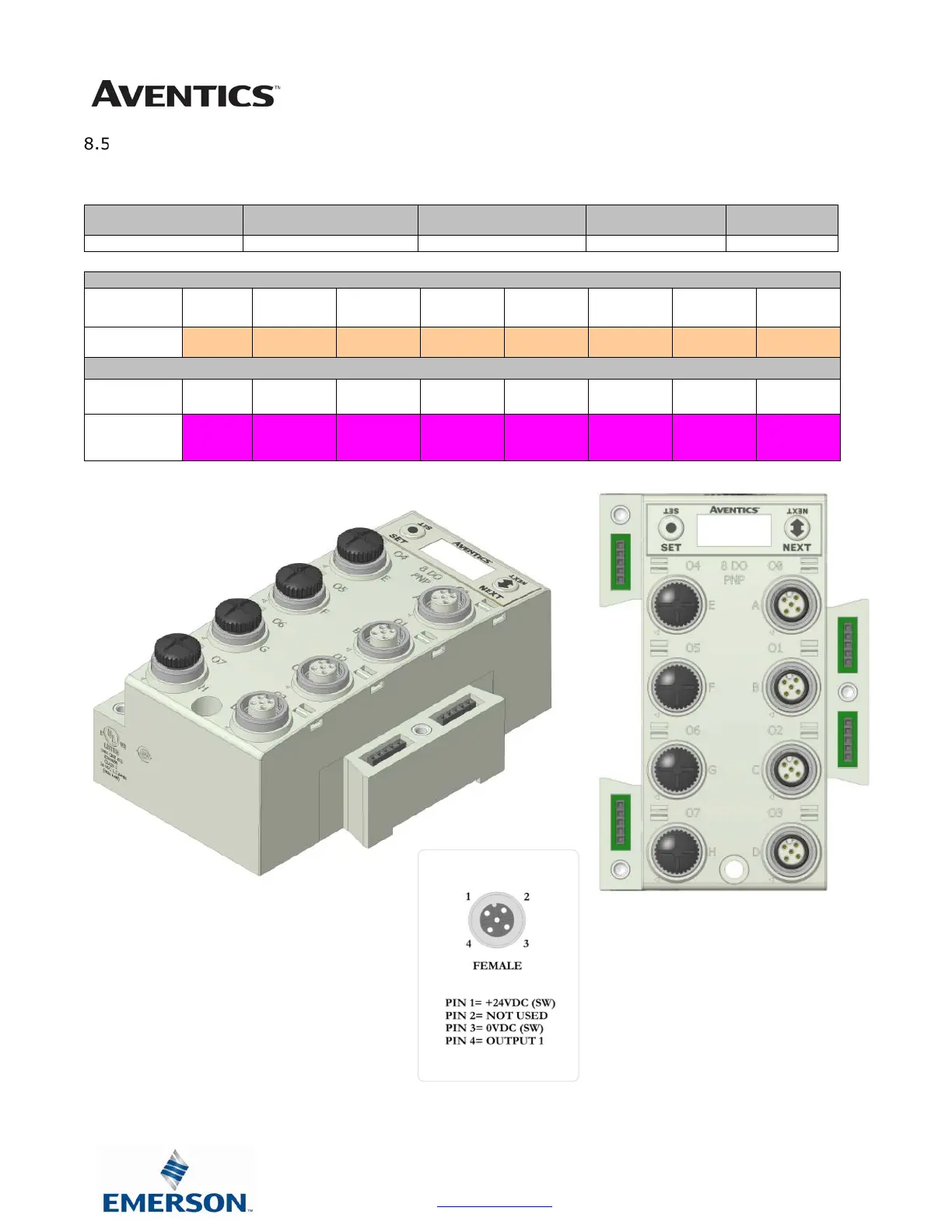

G3 Series EtherCAT
TM
Technical Manual
8-73
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3
Digital Output Modules
One Digital Output per Connector - M12 Female Modules
Module
Part No.
I/O Type Short Circuit Protection
Short Circuit
Protection Status Bits
Output Points
240-208
PNP (Sourcing)
YES
YES
8
Output Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
Output
7
Output 6 Output 5 Output 4 Output 3 Output 2 Output 1 Output 0
Diagnostic Telegram
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Selectable)
Output
7
Status
Output 6
Status
Output 5
Status
Output 4
Status
Output 3
Status
Output 2
Status
Output 1
Status
Output 0
Status
