G3 Series EtherCAT
TM
Technical Manual
10-92
Subject to change without notice
www.asco.com/g3

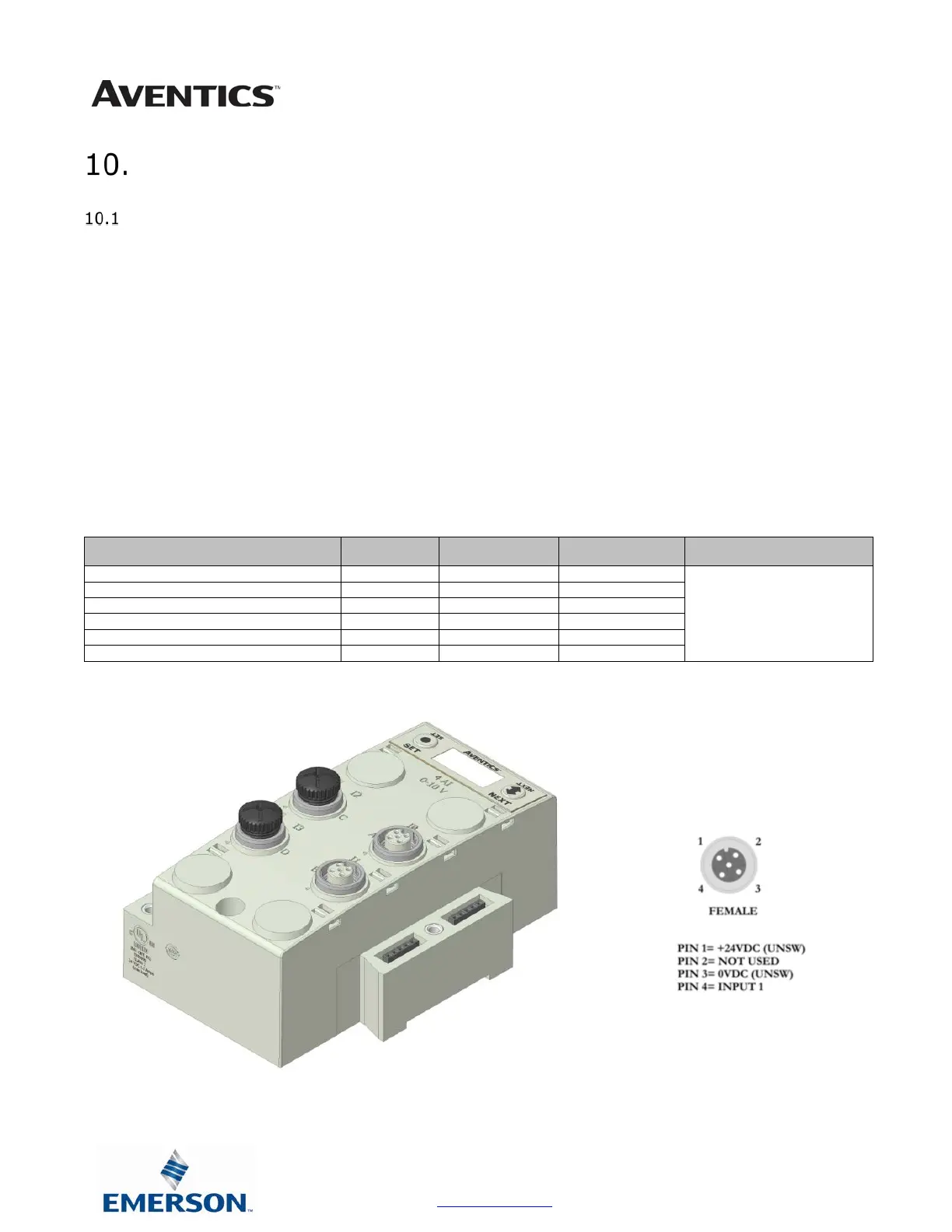

Analog I/O Modules
Analog I/O Module Rules
The analog I/O modules follow the same rules as the digital I/O modules. The maximum total number of modules on
the Sub-Bus is 16. The analog boards allow the user to control devices using an analog signal. The analog modules
also allow the user to relay analog information from input devices. These modules are available in two analog signal
types: 0-10 V and 4-20 mA. These two signal types are offered in two different I/O configurations: 2 analog input
channels/ 2 analog outputs channels and 4 analog input channels.
- 12mm Female Modules
Specifications
- Input Resolution: 16 bit (65,536 Counts),
- Output Resolution: 16 bit (65,536 Counts)
- Settling Time: 3 ms Max
- Absolute Precision: ≤ 1.0% of Signal
- Voltage Input Impedance: 0-10VDC – 40K Ohms
- Current Input Impedance: 250 Ohms
- Input Cutoff Frequency: 100 Hz
Module Part No. Signal Type Input Points Output Points Short Circuit Protection
Yes
