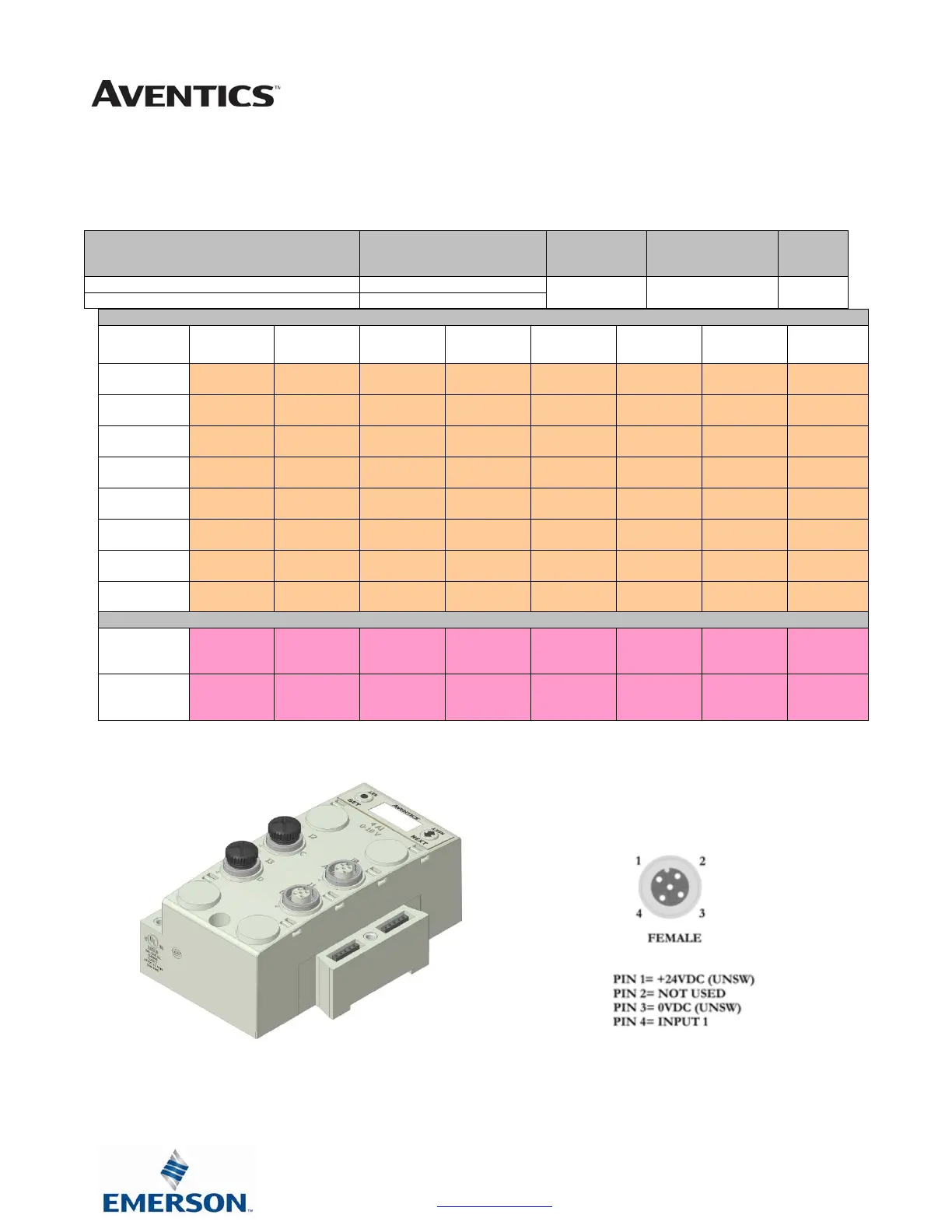

One Analog Input per Connector – M12 Female Modules
Module
Part No.
Signal Type
Short Circuit
Protection
Short Circuit
Protection Status
Bits
Input
Points
240-212
0-10 VDC
YES – Visual
YES (4) –
Selectable
4
240-214
4-20 mA
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Required)
Input No.
1
Input No.
1
Input No.
1
Input No.
1
Input No.
1
Input No.
1
Input No.
1
Input No.
1 (LSB)
X+1
(Required)
Input No.
1 (MSB)
Input No.
1
Input No.
1
Input No.
1
Input No.
1
Input No.
1
Input No.
1
Input No.
1
X+2
(Required)
Input No.
2
Input No.
2
Input No.
2
Input No.
2
Input No.
2
Input No.
2
Input No.
2
Input No.
2 (LSB)
X+3
(Required)
Input No.
2 (MSB)
Input No.
2
Input No.
2
Input No.
2
Input No.
2
Input No.
2
Input No.
2
Input No.
2
X+4
(Required)
Input No.
3
Input No.
3
Input No.
3
Input No.
3
Input No.
3
Input No.
3
Input No.
3
Input No.
3 (LSB)
X+5
(Required)
Input No.
3 (MSB)
Input No.
3
Input No.
3
Input No.
3
Input No.
3
Input No.
3
Input No.
3
Input No.
3
X+6
(Required)
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Input No.
4 (LSB)
X+7
(Required)
Input No.
4 (MSB)
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Input No.
4
Diagnostics
X
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
Power
Status for
Conn. D
Power
Status for
Conn. C
Power
Status for
Conn. B
Power
Status for
Conn. A
X+1
High
Alarm for
Conn. D
Low Alarm
for Conn.
D
High
Alarm for
Conn. C
Low Alarm
for Conn.
C
High
Alarm for
Conn. B
Low Alarm
for Conn.
B
High
Alarm for
Conn. A
Low
Alarm for
Conn. A
