Digital Input Modules

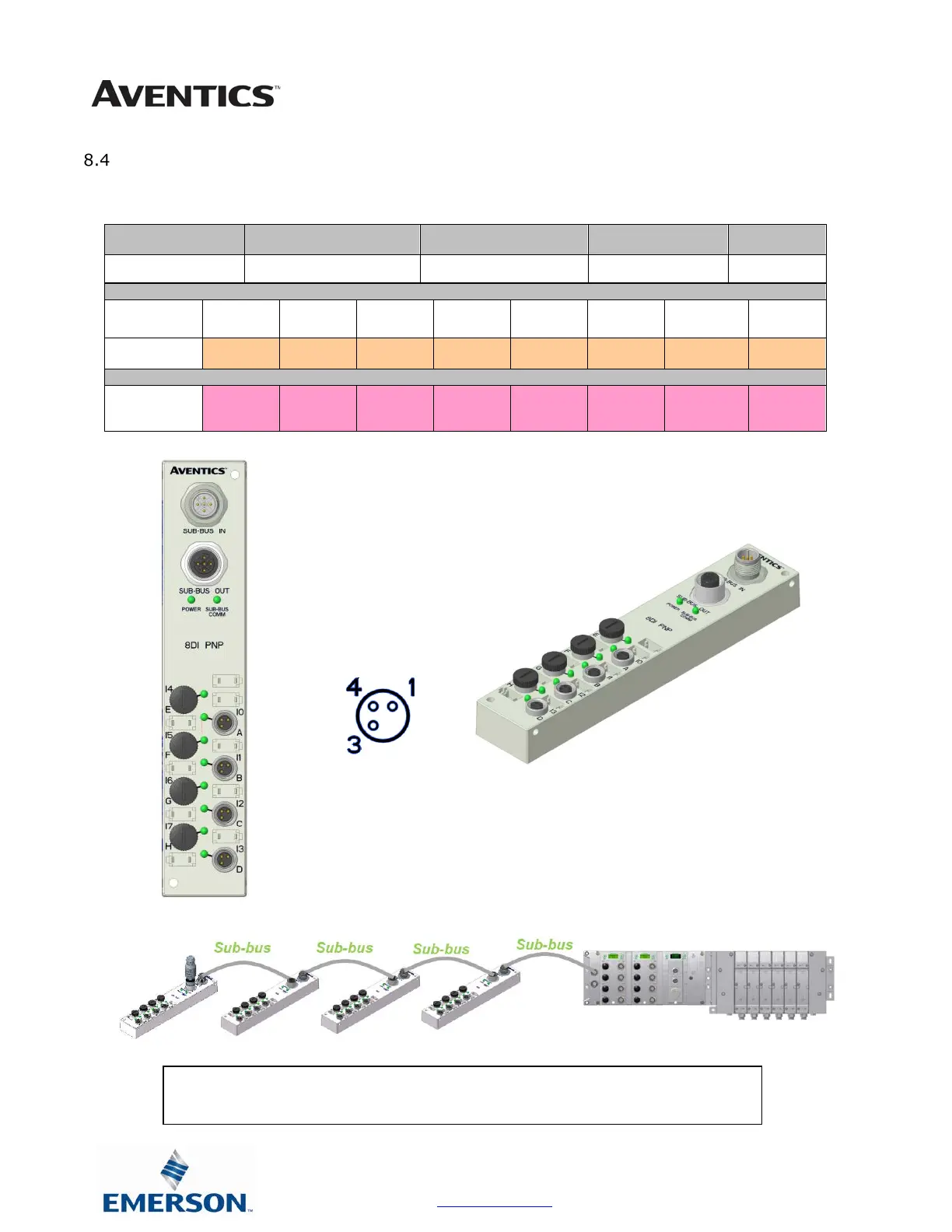

One Digital Input per Connector – M8 Female Modules
Module
Part No.
I/O Type Short Circuit Protection
Short Circuit
Protection Status Bits
Input Points
240-379 PNP (Sourcing)
YES – Visual YES – Optional 8
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Required)
Input 7 Input 6 Input 5 Input 4 Input 3 Input 2 Input 1 Input 0
Diagnostics
X
(Selectable)
Conn. H
SCP
Status
Conn. G
SCP
Status
Conn. F
SCP
Status
Conn. E
SCP
Status
Conn. D
SCP
Status
Conn. C
SCP
Status
Conn. B
SCP
Status
Conn. A
SCP
Status
FEMALE
PIN 1= +24VDC (UNSW)
PIN 3= 0VDC (UNSW)
PIN 4= INPUT
An external terminating resistor, p/n: TA05TR000000000, is required
when the 240-379 is the last I/O module on the sub-bus.
