Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
8-66
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X Input 7 Input 6 Input 5 Input 4 Input 3 Input 2 Input 1 Input 0
Diagnostic Telegram
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Selectable)
Conn. H
SCP
Status
Conn. G
SCP
Status
Conn. F
SCP Status
Conn. E
SCP Status
Conn. D
SCP Status
Conn. C
SCP Status
Conn. B
SCP Status
Conn. A
SCP Status

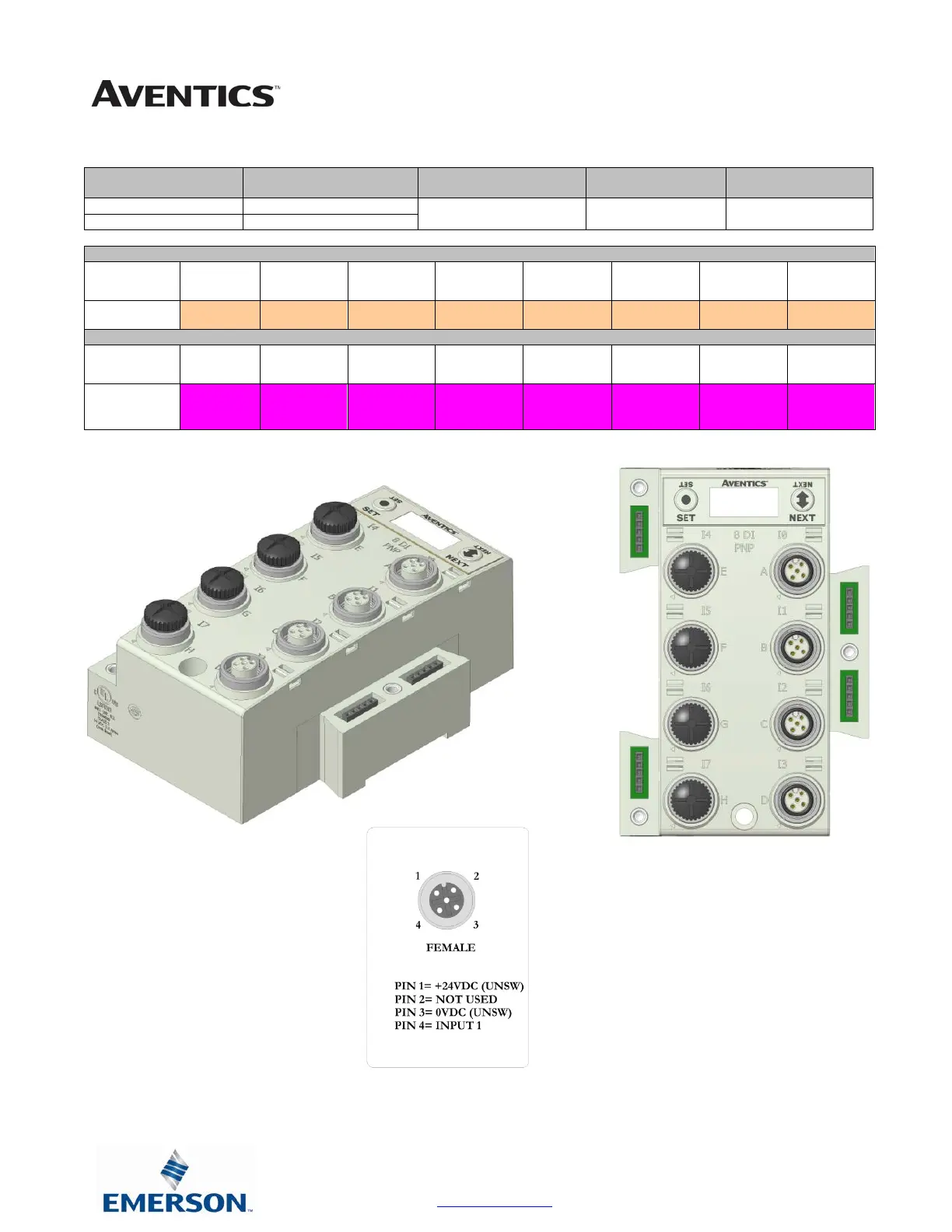

One Digital Input per Connector – M12 Female Modules
Module
Part No.
I/O Type Short Circuit Protection
Short Circuit
Protection Status Bits
Input Points
240-210
NPN (Sinking)
YES YES 8
240-206
PNP (Sourcing)
