Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X Input 7 Input 6 Input 5 Input 4 Input 3 Input 2 Input 1 Input 0
X+1 Input 15 Input 14 Input 13 Input 12 Input 11 Input 10 Input 9 Input 8
Diagnostic Telegram
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Selectable)
Conn. H
SCP
Status
Conn. G
SCP
Status
Conn. F
SCP Status
Conn. E
SCP Status
Conn. D
SCP Status
Conn. C
SCP Status
Conn. B
SCP Status
Conn. A
SCP Status

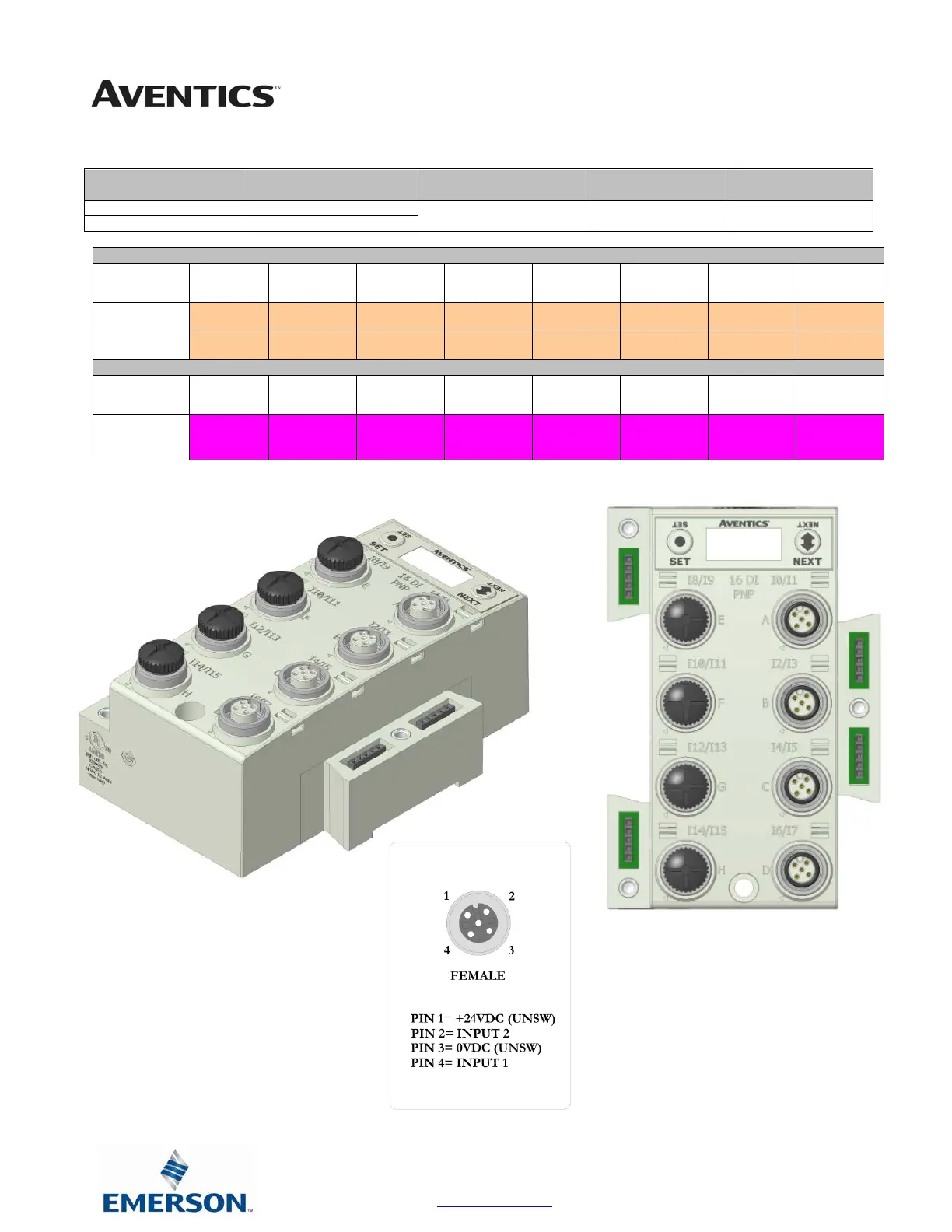

Two Digital Inputs per Connector – M12 Female Modules
Module
Part No.
I/O Type Short Circuit Protection
Short Circuit
Protection Status Bits
Input Points
240-209
NPN (Sinking)
YES YES 16
240-205
PNP (Sourcing)
