Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
8-68
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3
240-203 PNP (Sourcing)
YES YES 16
240-204 NPN (Sinking)
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X Input 7 Input 6 Input 5 Input 4 Input 3 Input 2 Input 1 Input 0
X+1 Input 15 Input 14 Input 13 Input 12 Input 11 Input 10 Input 9 Input 8
Diagnostic Telegram
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Selectable
)
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
Allocated
and
Reserved
D+
SCP Status
C+
SCP Status
B+
SCP Status
A+
SCP Status

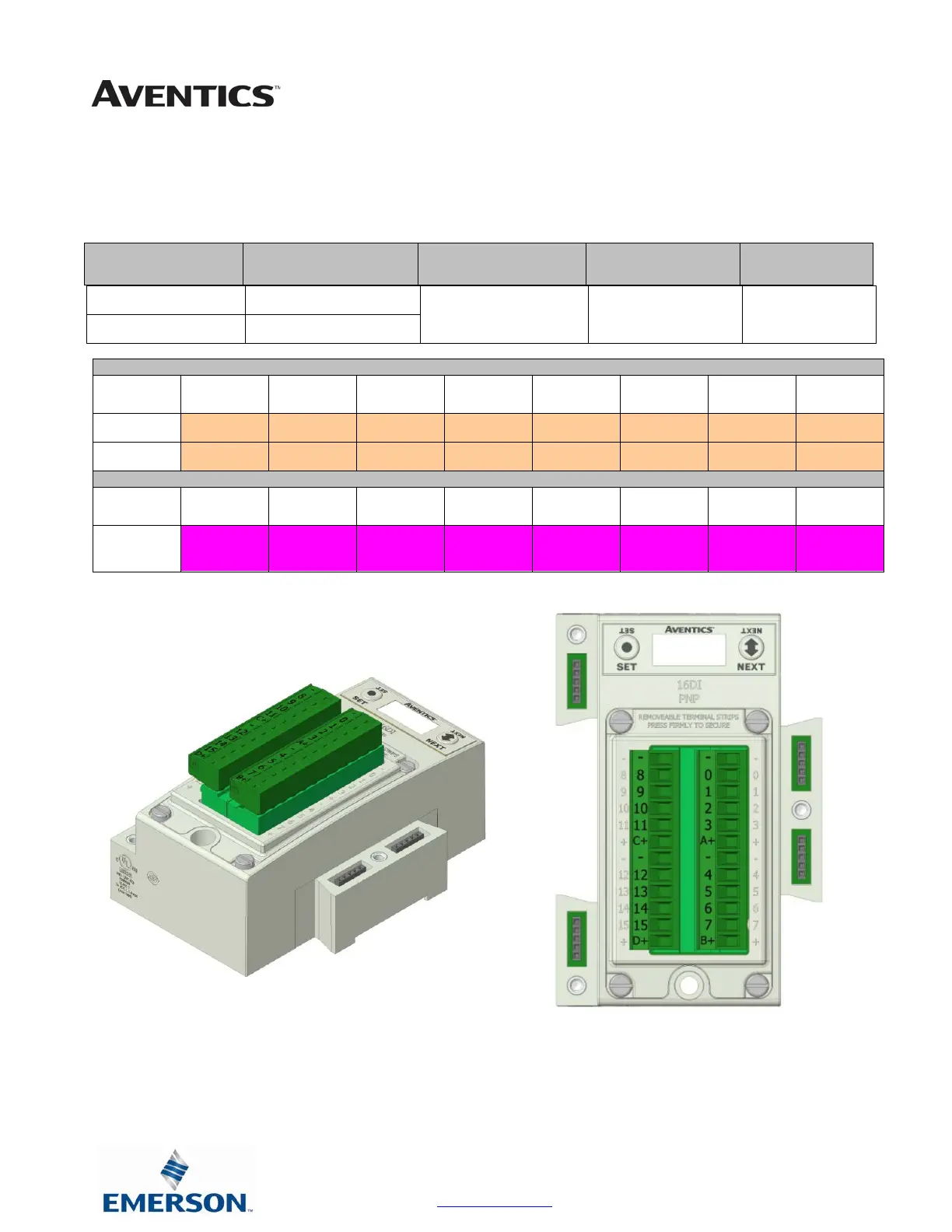

Sixteen Digital Inputs – Terminal Strip Modules
Specifications
- Wire Range: 12 to 24 AWG
- Strip Length: 7mm
- Tightening Torque: 0.5 Nm
Module
Part No.
I/O Type Short Circuit Protection
Short Circuit Protection
Status Bits
Input Points
