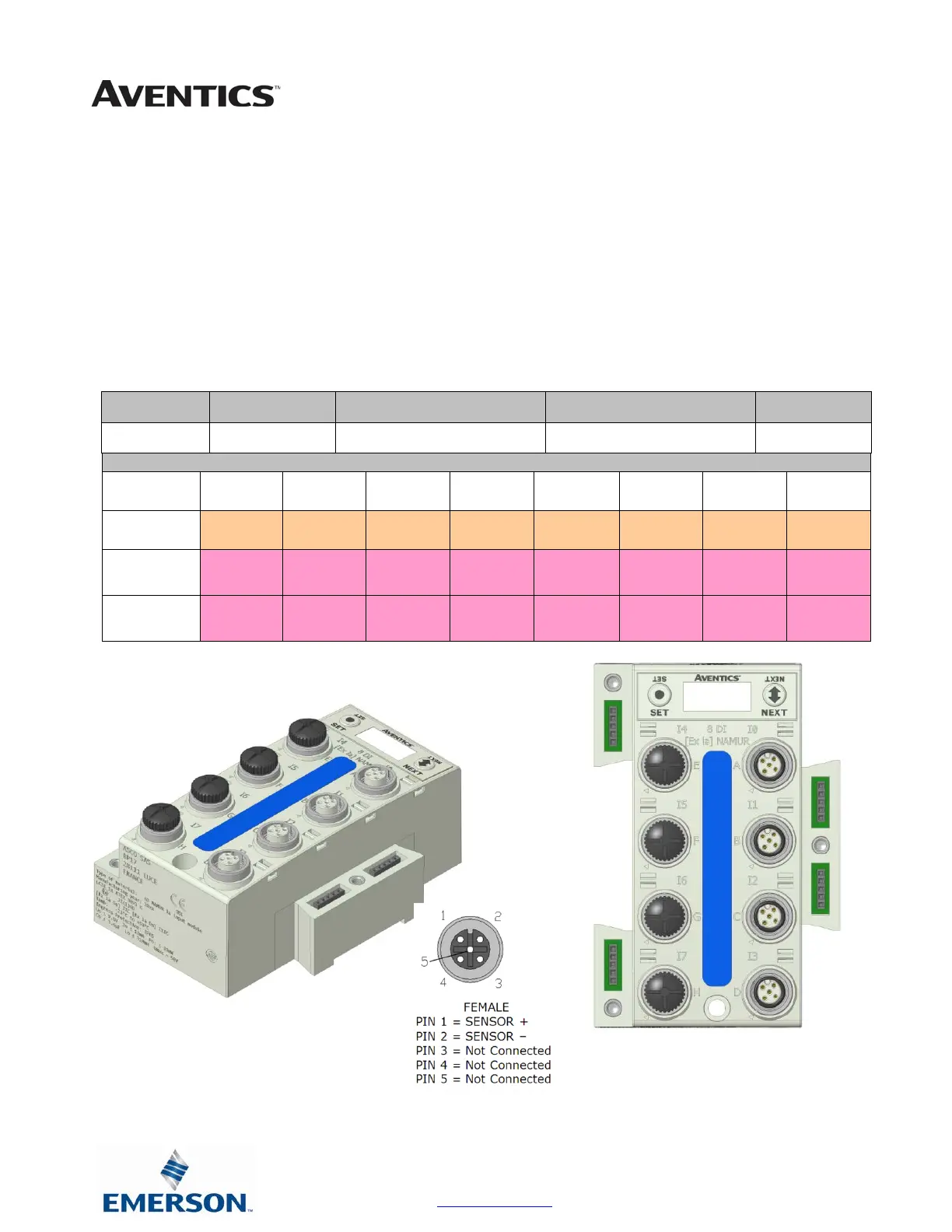

Intrinsically safe [Ex ia] NAMUR Compatible Input Module
One Digital Input per Connector – M12 Female
Input module is for use with NAMUR certified intrinsically safe (IS) sensors. The module can be placed in
any G3 I/O position available but must be used in conjunction with appropriate clips with partition plates
(see picture on page 8-71). This module is for use with (IS) sensors (certified to EN 60947-5-6) where
the sensor is placed within the hazardous area, (e.g. ATEX 0-20, 1-21, and 2-22). This [Ex ia] module is
part of the G3 electronics platform, which is designed to reside outside of the hazardous environment or
in Zone 2-22, inside of a cabinet with appropriate ingress protection. The partition plate clips, used
between standard G3 modules and [Ex ia] modules, are required to maintain ATEX approval. The 8.2 V
sensor supply for each input connector is short circuit protected.
Part Numbers and Mapping
Module
Part No.
I/O Type
Short Circuit /Open Circuit
Protection
Short Circuit /Open Circuit
Present Status Bits
Input Points
240-320 NAMUR YES - Visual YES - Optional 8
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Required)
Input
7
Input
6
Input
5
Input
4
Input
3
Input
2
Input
1
Input
0
X
Conn. H
SC
Status
Conn. G
SC
Status
Conn. F
SC
Status
Conn. E
SC
Status
Conn. D
SC Status
Conn. C
SC Status
Conn. B
SC
Status
Conn. A
SC Status
X + 1
Conn. H
Open
Status
Conn. G
Open
Status
Conn. F
Open
Status
Conn. E
Open
Status
Conn. D
Open
Status
Conn. C
Open
Status
Conn. B
Open
Status
Conn. A
Open
Status
