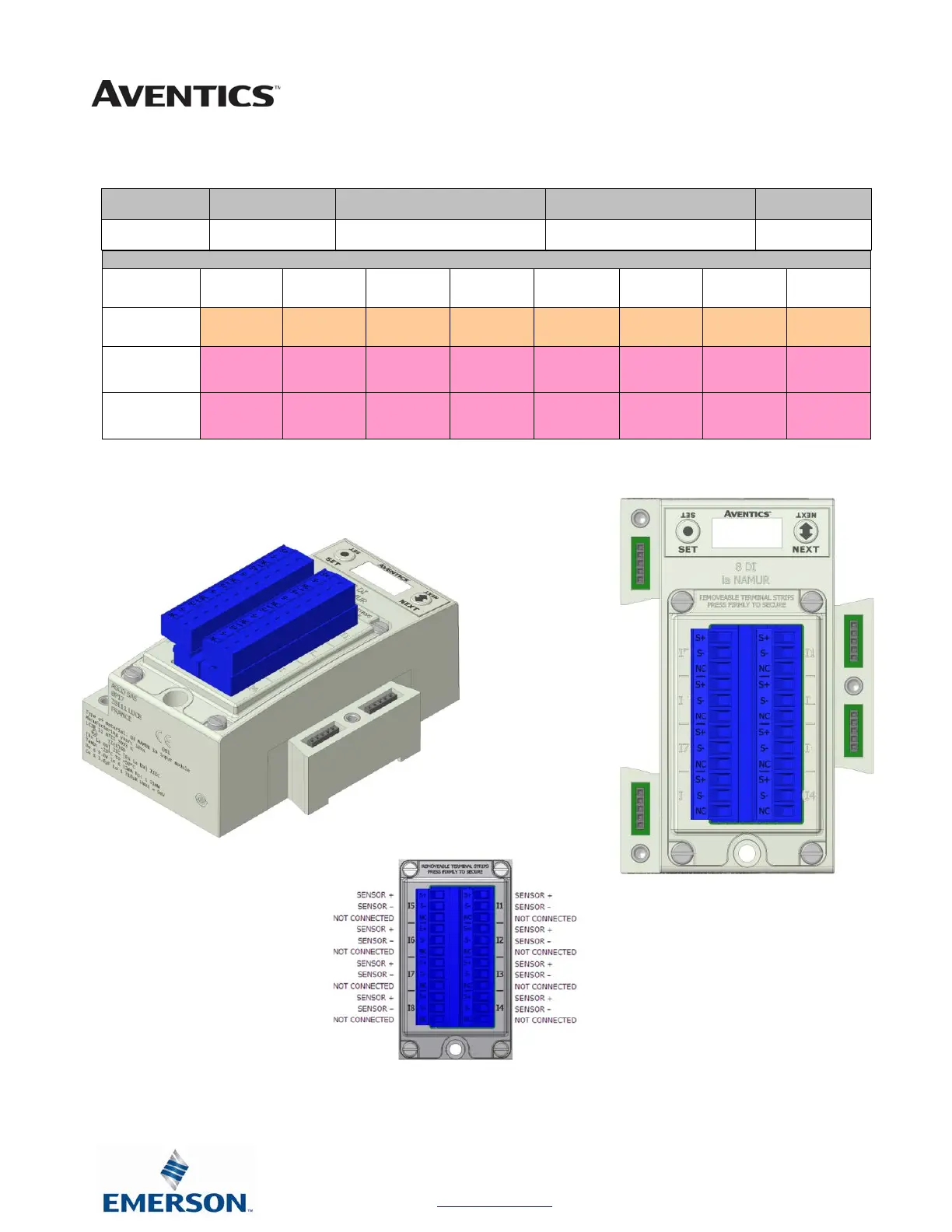

Intrinsically safe [Ex ia] NAMUR Compatible Input terminal strip module
Module
Part No.
I/O Type
Short Circuit /Open Circuit
Protection
Short Circuit /Open Circuit
Present Status Bits
Input Points
240-322 NAMUR YES - Visual YES - Optional 8
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Required)
Input
7
Input
6
Input
5
Input
4
Input
3
Input
2
Input
1
Input
0
X
Conn. H
SC
Status
Conn. G
SC Status
Conn. F
SC Status
Conn. E
SC Status
Conn. D
SC
Status
Conn. C
SC Status
Conn. B
SC
Status
Conn. A
SC Status
X + 1
Conn. H
Open
Status
Conn. G
Open
Status
Conn. F
Open
Status
Conn. E
Open
Status
Conn. D
Open
Status
Conn. C
Open
Status
Conn. B
Open
Status
Conn. A
Open
Status
S+
S-
NC
S+
S-
NC
S+
S-
NC
S+
S-
NC
S+
S-
NC
S+
S-
NC
S+
S-
NC
S+
S-
NC
