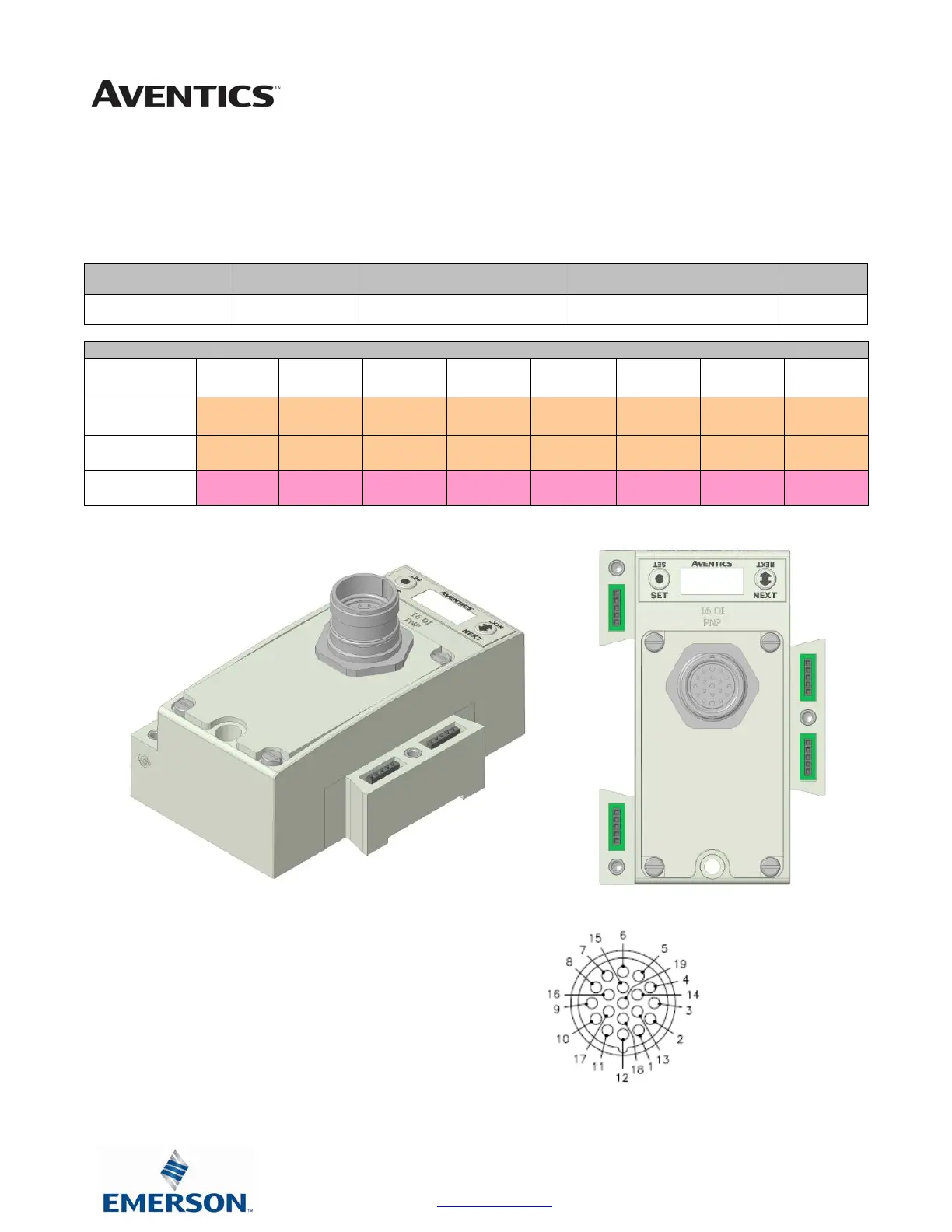

19 Pin M23 Input Module
The 19 Pin M23 Input module is for use with any Input block available from Phoenix Contact, Turck, Brad
Harrison, etc. It can also be used with a single ended 19 Pin Cable.
Part Numbers and Mapping
Module
Part No.
I/O Type
Short Circuit /Open Circuit
Protection
Short Circuit /Open Circuit
Present Status Bits
Input Points
240-323 Digital YES - Visual YES - Optional 16
Input Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Required)
Input
7
Input
6
Input
5
Input
4
Input
3
Input
2
Input
1
Input
0
X
Input
15
Input
14
Input
13
Input
12
Input
11
Input
10
Input
9
Input
8
X + 1
Short
Circuit
Short
Circuit
Short
Circuit
Short
Circuit
Short
Circuit
Short
Circuit
Short
Circuit
Short
Circuit
Pin 1 = Input 14 Pin 11 = Input 12
Pin 2 = Input 10 Pin 12 = P.E.
Pin 3 = Input6 Pin 13 = Input 11
Pin 4 = Input 3 Pin 14 = Input 7
Pin 5 = Input 2 Pin 15 = Input 0
Pin 6 = 0 VDC Pin 16 = Input 4
Pin 7 = Input 1 Pin 17 = Input 8
Pin 8 = Input 5 Pin 18 = Input 15
Pin 9 = Input 9 Pin 19 = + 24
VDC
Pin 10 = Input 13
Pin Out Information
