Emotron VFX 2.1 User Manual

CG Drives & Automation 01-7492-01r1 Mounting 21

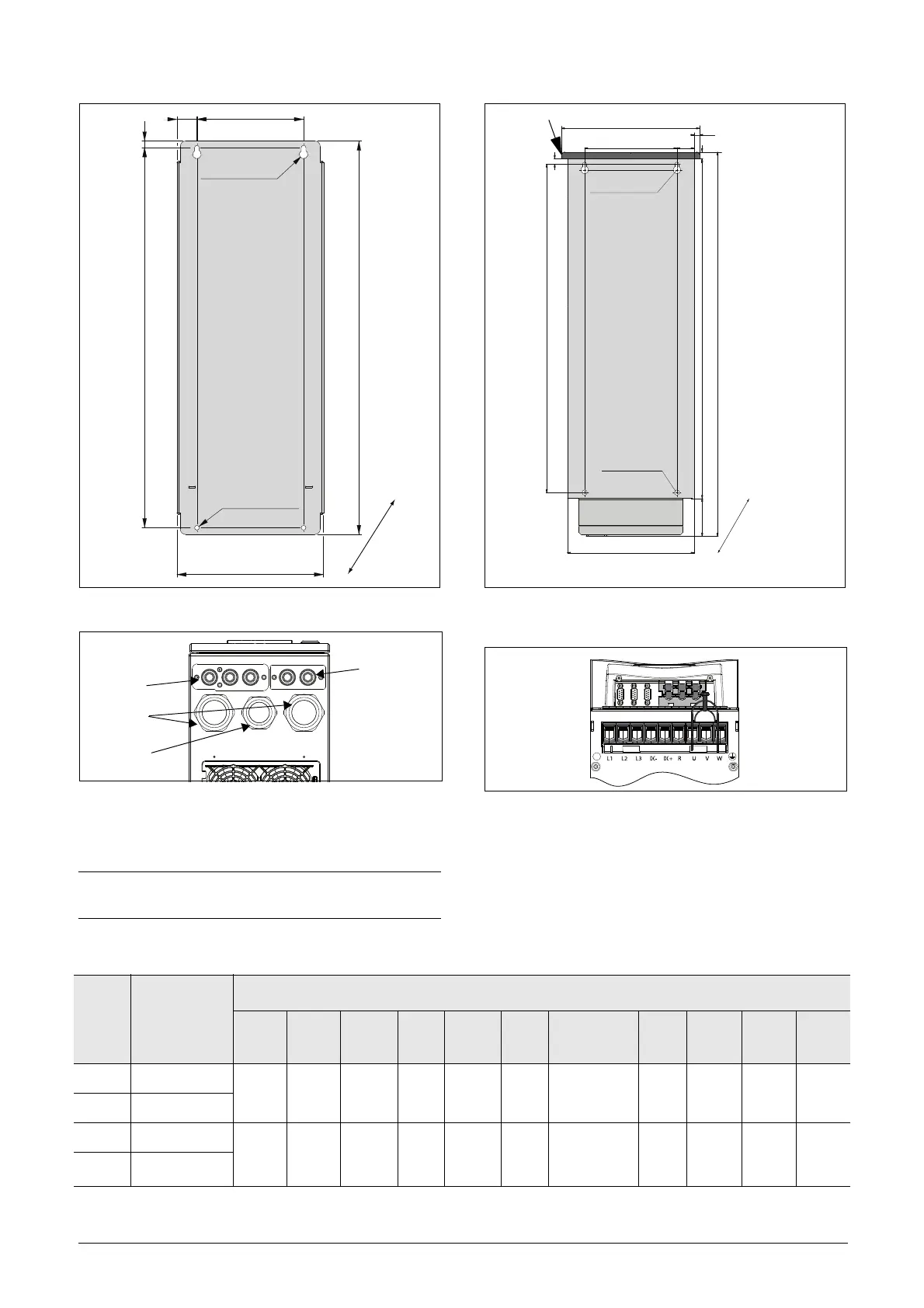

Fig. 20 Emotron VFX Model 48/52-061 to 074 (Frame size
D), Model 69-033 to 69-058, (Frame size D69).
Fig. 21 Cable interface for mains, motor and communication,
Emotron VFX Model 48/52-061 and 074 (Frame size
D), Model 69-033 to 69-058 (Frame size D69).
Fig. 22 Emotron VFXModel 48-060 to
48-105 (Frame size D2), Model 69-033 to 69-058
(Frame size D2(69)), backside view.
Fig. 23 Bottom view Emotron VFX Model 48-060 to
48-105 (Size D2), Model 69-033 to 69-058 (Frame
size D2(69)), with cable interface for mains, motor,
DC+/DC-, brake resistor and control.
NOTE: Glands for size B, C, D, C69 and D69 are
available as option kit.
32 kg
(71 lb) F
G
B
A
ø7 mm(x4)
(0.27 in)
C
D
ø13 mm(x2)
E
(0.51 in)
Glands
M20
Glands
M20
Glands
M50
Glands
M40
IP21 top cover (optional)
30 kg
(66 lb)
ø7 mm (x4)
(0.27 in)
ø13 mm(x2)
(0.51 in)
I
C
H
E
F
G
K
A
D
B
J
PE
Table 9 Dimensions connected to fig. 20 and fig. 22.
Frame
size
Emotron
VFX
model
Dimensions in mm (in)
A B C D E F
G
(depth)
H I J K
D 061 - 074
570
(22.4)
590
(23.2)
160
(6.3)
30
(0.9)
10
(0.39)
220
(8.7)
295
(11.6)
-- - -
D69 033 - 058
D2 060 - 105
570
(22.4)
669.5
(26.3)
160
(6.3)
30
(0.9)
13
(0.51)
220
(8.7)
291 (11.5)
IP21 - 307
(12.1)
240
(9.5)
10
(0.39)
12.5
(0.47)
590
(23.2)
D2(69) 033 - 058
