40 Installation CG Drives & Automation 01-7492-01r1

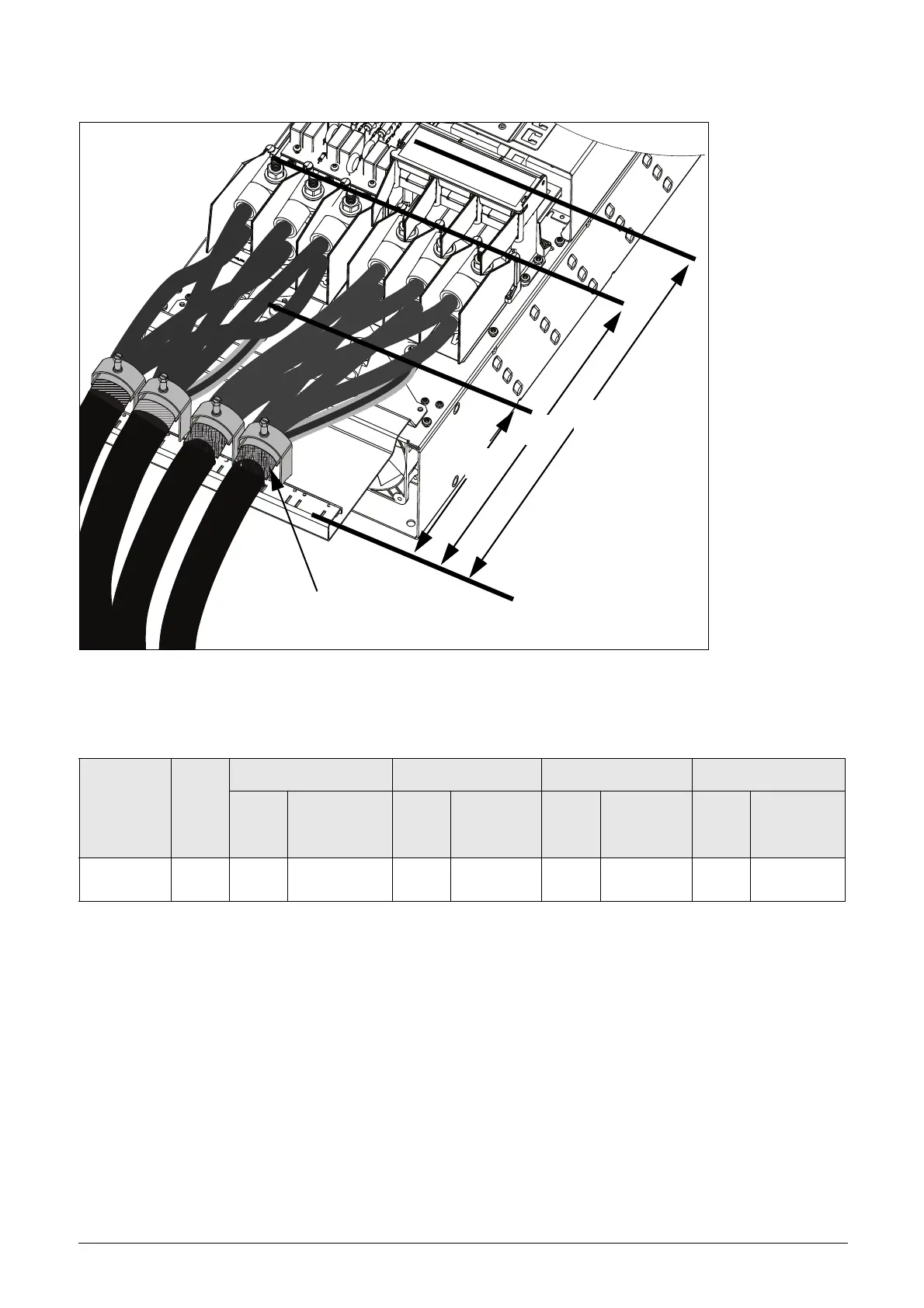

Fig. 60 indicates the distance from the cable clamp to the connection bolts for decision of stripping lengths for the cables.
Fig. 60 Distances from the cable clamp to the connection bolts size FA2.
* Connect with cable lugs.
C
A
B
Recommended screen length
for Motor and brake cables is approximate 35 mm (1.4 in).
Table 16 Distances from the cable clamp to the connection bolts for mains, motor, brake and earth cables for frame size FA2.
Model VFX
Frame
size
Mains cable Motor cable Brake cable Earth cable
B
mm
(in)
Bolt
dimension
B
mm
(in)
Bolt
dimension
C
mm
(in)
Bolt
dimension
A
mm
(in)
Bolt
dimension
48-365-20 FA2
375
(14.8)
M10 bolt*
375
(14.8)
M10 bolt*
420
(16.5)
M8 bolt*
270
(10.6)
M8 bolt*
